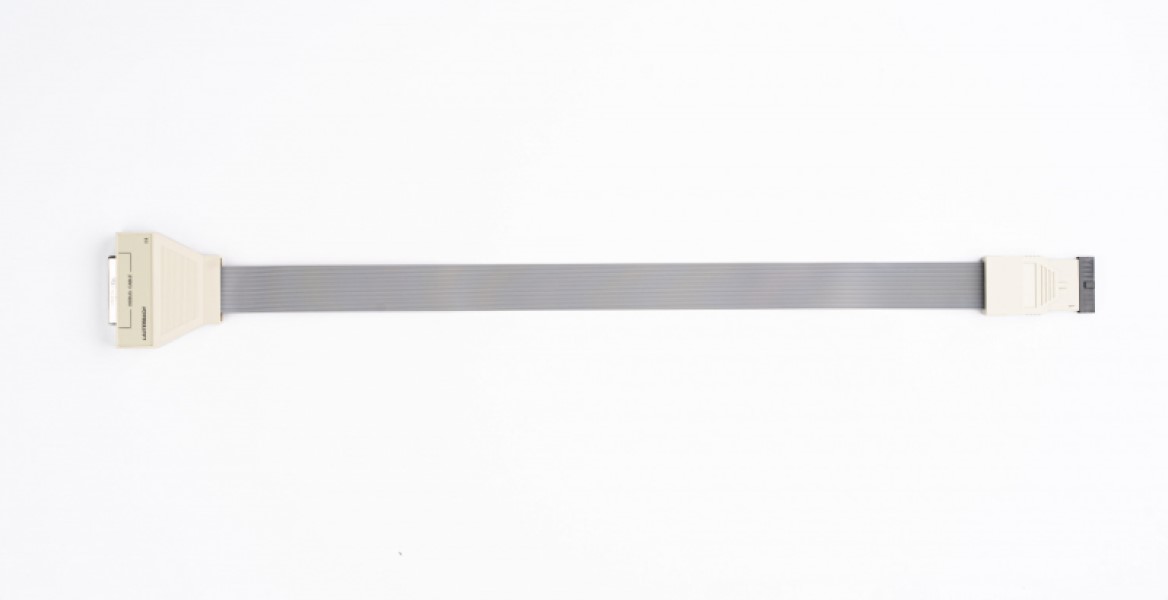

IDC20A Debug Probe V5
OVERVIEW
IDC20A Debug Probe V5
Product number:
LA-3000
Debug probe suitable for most SoCs.
This TRACE32 Product is a license carrier. It requires a
suitable, programmed TRACE32 A-license.
Requires PowerDebug debug base module from 2004 and newer.
(Works with all PowerDebug except Gen 1 (LA-7702 & LA-7704).)
Voltage range 0.4V to 5V
Product Details
Technical Information
Technical Data
Add-ons
Extend the IDC20A Debug Probe V5
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A Synopsys ASIP Core Debug License(tool locked)
- LA-3743A Armv8/v9-A/R Debug License (tool locked)
- LA-7837A Nios® II Debug License (tool locked)
- LA-3778A APS Debug License (tool locked)
- LA-2772A SDMA Debug License (tool locked)
- LA-7845A StarCore Debug License (tool locked)
- LA-7760A MIPS32 Debug License (tool locked)
- LA-7830A C5500 Debug License (tool locked)
- LA-3750A ARC® 32-bit Debug License (tool locked)
- LA-7832A ZSP400 Debug License (tool locked)
- LA-7759A XC2000/C166S V2 Debug License (tool locked)
- LA-3730A MicroBlaze Debug License (tool locked)
- LA-7789A Teak/Oak SEIB Debug License (tool locked)
- LA-7831A C5400 Debug License (tool locked)
- LA-7848A M8051EW Debug License (tool locked)
- LA-3747A UBI32 Debug License (tool locked)
- LA-2705A ARP32 Debug License (tool locked)
- LA-7744A ARM10 Debug License (tool locked)
- LA-7817A SH Debug License (tool locked)
- LA-2757A LatticeMico32™ Debug License (tool locked)
- LA-3749A VSPA Debug License (tool locked)
- LA-3712A ZSP500 Debug License (tool locked)
- LA-7746A ARM7 Debug License (tool locked)
- LA-7838A C6000 Debug License (tool locked)
- LA-3760A Xtensa® Debug License (tool locked)
- LA-3756A AndesCore™ V3/V2 Debug License (tool locked)
- LA-3711A Ceva-X Debug License (tool locked)
- LA-7844A Cortex-M Debug License (tool locked)
- LA-7742A ARM9 Debug License (tool locked)
- LA-7847A C2000 Debug License (tool locked)
- LA-7843A Armv7-A/R Debug License (tool locked)
- LA-2540A RISC-V 32-bit Debug License (tool locked)
- LA-2756A PRU Debug License (tool locked)
- LA-7774A TeakLite JAM Debug License (tool locked)
- LA-2758A JTAG Debugger for META Add.
- LA-2759A C7000 Debug License (tool locked)
- LA-7762A XScale Debug License (tool locked)
- LA-2541A RISC-V 64-bit Debug License (tool locked)
- LA-3844A TeakLite-4 Debug License (tool locked)
- LA-7765A ARM11 Debug License (tool locked)
- LA-3741A Hexagon Debug License (tool locked)
- LA-3774A TeakLite-III Debug License (tool locked)
- LA-3744A APEX Debug License (tool locked)
Available Converters
- LA-2729 Converter IDC20A to MIPI-10/20T
- LA-3881 Converter IDC20A to XILINX-14
- LA-3860 Converter IDC20A to PPC4xx-16
- LA-2101 Adapter Half-Size 20 pin
- LA-2765 Converter IDC20A to RISC-V SiFive PMOD12 male
- LA-2720 Converter IDC20A to MIPS-14
- LA-3770 Converter IDC20A to MIPI-10/20D/34
- LA-3722 Converter IDC20A to Mictor-38
- LA-3780 Converter IDC20A to TI-14/TI-20-Compact
- LA-3763 Converter IDC20A to XTENSA14
- LA-3886 Converter IDC20A to Digilent PMOD™
- LA-3863 Converter IDC20A to ALTERA-10/RISCV-10
- LA-2746 Converter IDC20A/MIPI-20 to 10-pin ECU14
