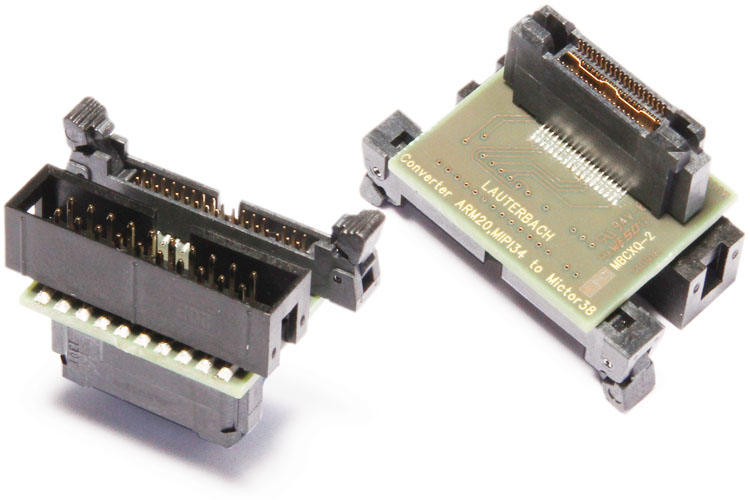

Converter IDC20A/MIPI-34 to Mictor-38


Converter IDC20A/MIPI-34 to Mictor-38

Product number: LA-3862

Converter to connect the ARM Debug Cable or
the CombiProbe to a Mictor connector on the
target. This is needed if you want to debug
without a Preprocessor and if there is only
a Mictor connector on the target.
The trace signals of the CombiProbe are
connected to the lowest four trace signals of
the Mictor (ETMv3 pinout, continuous mode).
But tracing is normally no use case due to
the bandwidth limitations of the CombiProbe.

Former name: ARM Conv. ARM-20/MIPI-34 to Mictor-38
