Converter IDC20A to MIPI-10/20D/34
Converter IDC20A to MIPI-10/20D/34

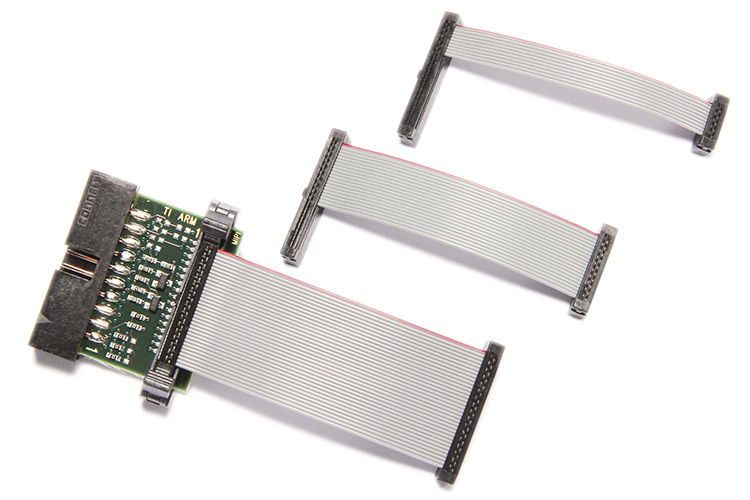

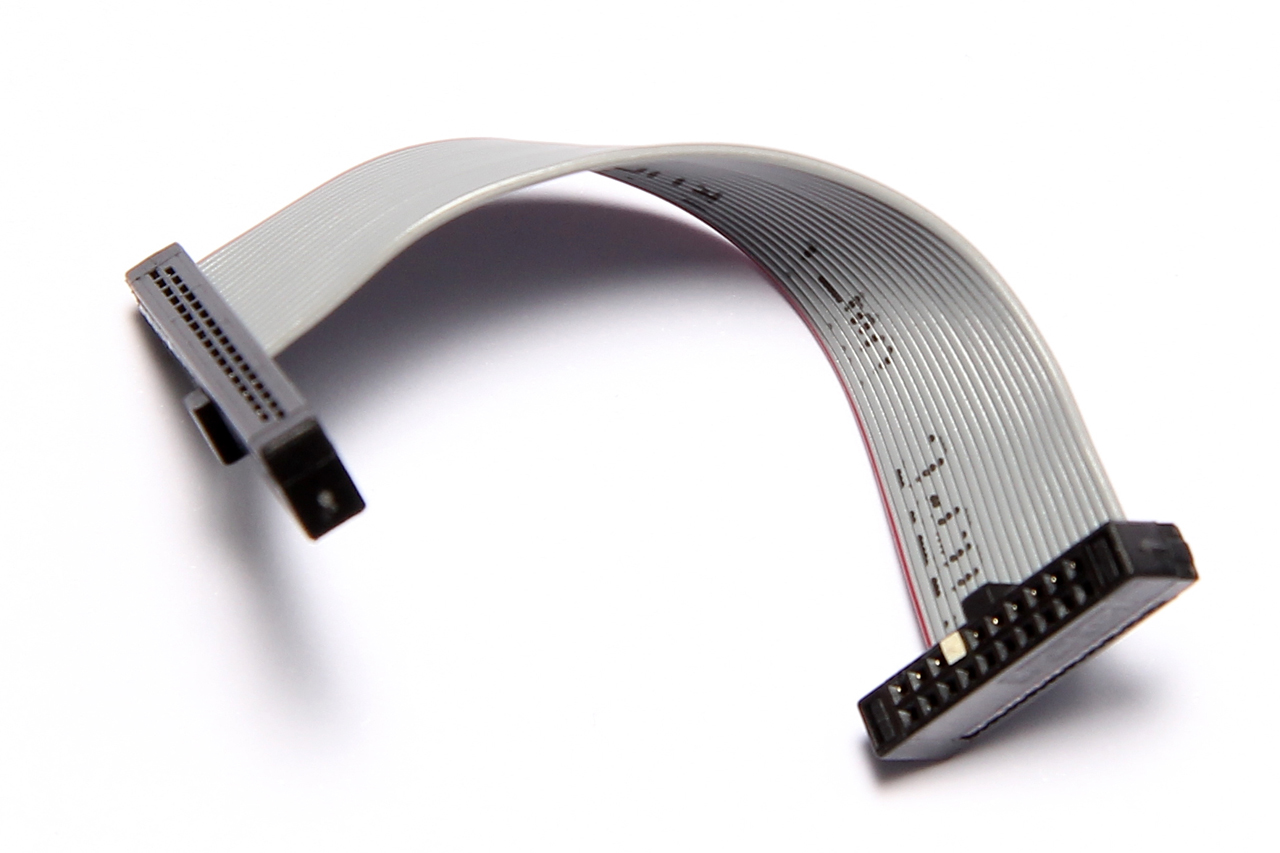

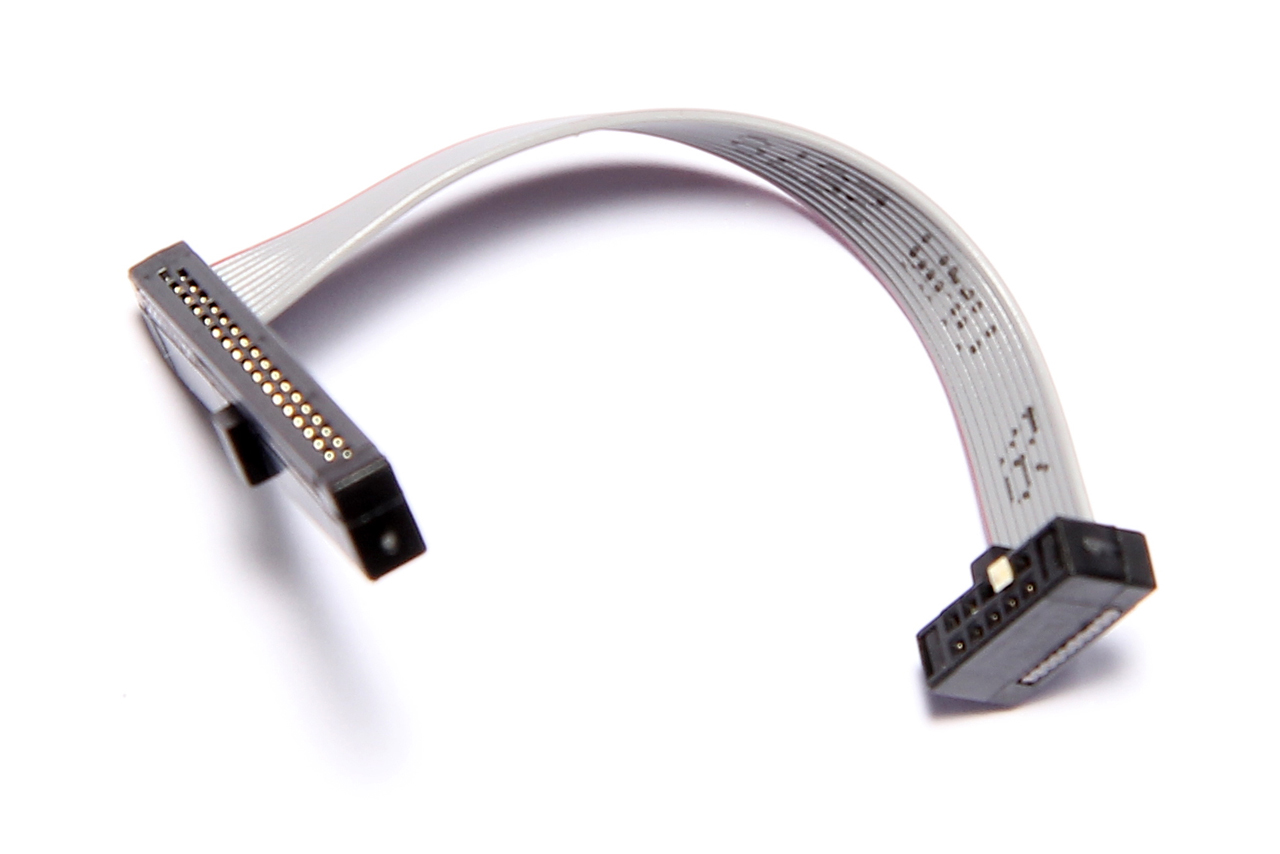

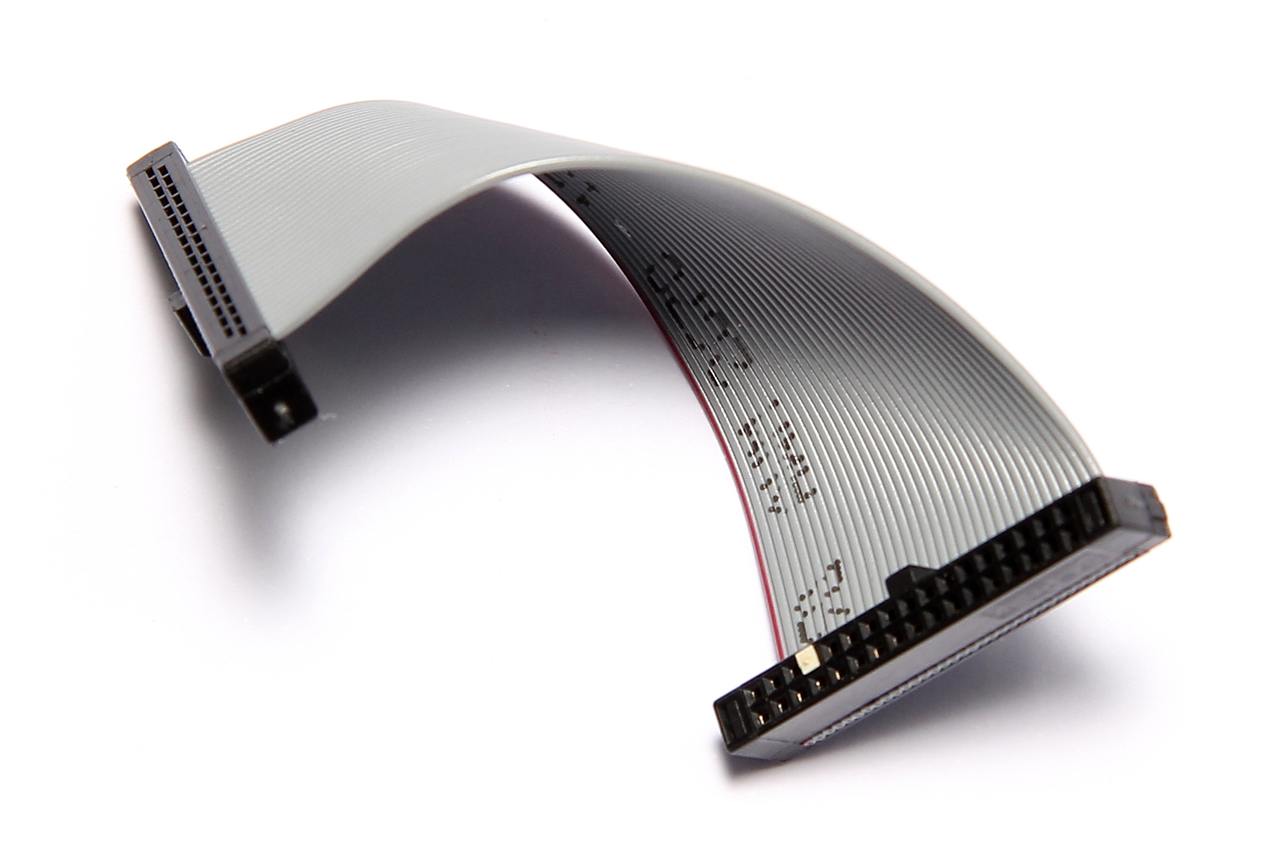

Converter to connect an IDC20A debug cable to a
target with MIPI34, MIPI20D, or MIPI10 connector.
For connecting an IDC20A debug cable on a PowerTrace Serial use
the converter LA-2770 instead.
(LA-2770 is for a MIPI34 connector with pin 1 on the right sight,
while LA-3770 expects pin 1 on the left side at the target.)
For a board with a MIPI20T connector (with pins for off-chip trace)
it is recommended to use the LA-2729 converter instead
to avoid driver conflicts.
Find out about the difference between the two converters at
https://support.lauterbach.com/kb/articles/la-2729-vs-la-3770
Alternatively, you can connect to a board with MIPI20T connector
by opening J101 and J102 on this converter to avoid driver conflicts,
as described at
https://repo.lauterbach.com/pdf/app_arm_target_interface.pdf
Technical Information
Technical Data
INCLUDED PRODUCTS:
Included in the Following Products
Available in
This product is part of the following product bundles.
- LA-3311 AutoFocus MIPI Trace Probe for Arm ETM
- LA-3331 AutoFocus MIPI Trace Probe for C6000
- LA-3345 AutoFocus MIPI Trace Probe for C7000
- LA-3916 Preproc. for C6000 AUTOFOCUS II MIPI60
- LA-3925 Preproc. for C7000 DSP AUTOFOCUS II MIPI60
- LA-3945 Aurora 2 Preprocessor for PowerTrace Serial
- LA-7993 Preproc. for ARM-ETM/AUTOFOCUS 600 MIPI
