IDC20A Debug Probe with M32R License

IDC20A Debug Probe with M32R License
OVERVIEW

IDC20A Debug Probe with M32R License

Product number: LA-3219
New Product

IDC20A debug probe for M32R cores
usable with a PowerDebug base module.

Includes licenses to debug M32R cores.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Includes an adapter for connecting the debug probe to a
target with a 10-pin M32R connector.

Requires one of the following PowerDebug base modules:
PowerDebug Interface USB 3/USB 2/USB, PowerDebug II,
PowerDebug Ethernet, PowerTrace Ethernet, PowerDebug Interface.

Not supported are:
PowerDebug X-Series, PowerDebug E-Series, PowerDebug PRO.

This product can be ordered now.

HS-Code / Tariff-Code: 85480090

Product Details

Technical Information

Technical Data

Pinout Specification

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information
IDC20A Debug Probe V5 IDC20A Debug Probe V5 See pinout specifications
LA-3000
See pinout specifications
M32R Debug License (tool locked) M32R Debug License (tool locked)
LA-7661A

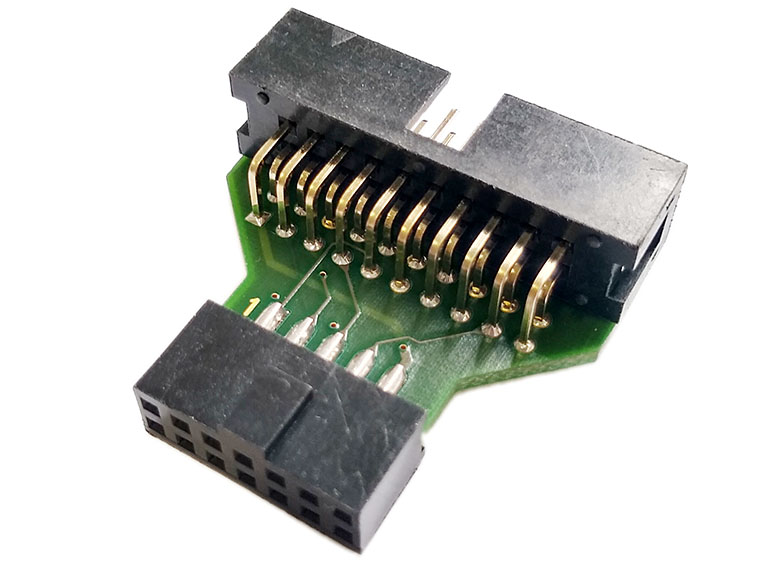

Debug Adapter 10 pin for M32R Debug Adapter 10 pin for M32R See pinout specifications
LA-7663
See pinout specifications
Add-ons

Extend the IDC20A Debug Probe with M32R License

Allowed Licenses

The following licenses can be added to the product to support debug and/or tracing of other core architectures.
