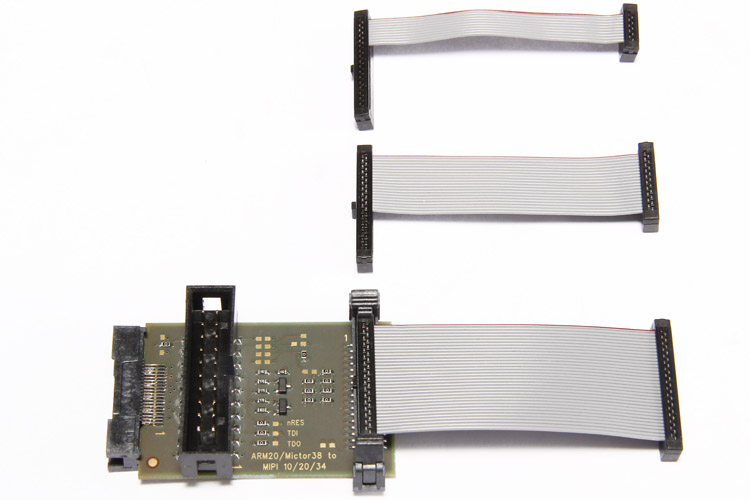

Converter Mictor-38/IDC20A to MIPI-34

OVERVIEW

Converter Mictor-38/IDC20A to MIPI-34

Product number: LA-3842
Not recommended for new projects

Converter to connect an AutoFocus II Preprocessor with
MICTOR-38 and an IDC20A Debug Cable to MIPI-10/-20T/-34

Enables use AutoFocus II Preprocessor on the 4-bit wide
trace port of MIPI-34 connector

Converted is configured by 0 ohm resistance for MIPI-34,configuration 1
for details refer to https://www.lauterbach.com/ad3809.html

LA-3809 Converter Mictor-38/IDC20A to MIPI-10/-20T/-34 is configured
for MIPI-20T by 0 ohm resistance

Former name: Converter Mictor-38/ARM20 to MIPI-34

Use this product in existing projects only. For new projects please order the superseded product.
Product Details

Technical Information

Technical Data

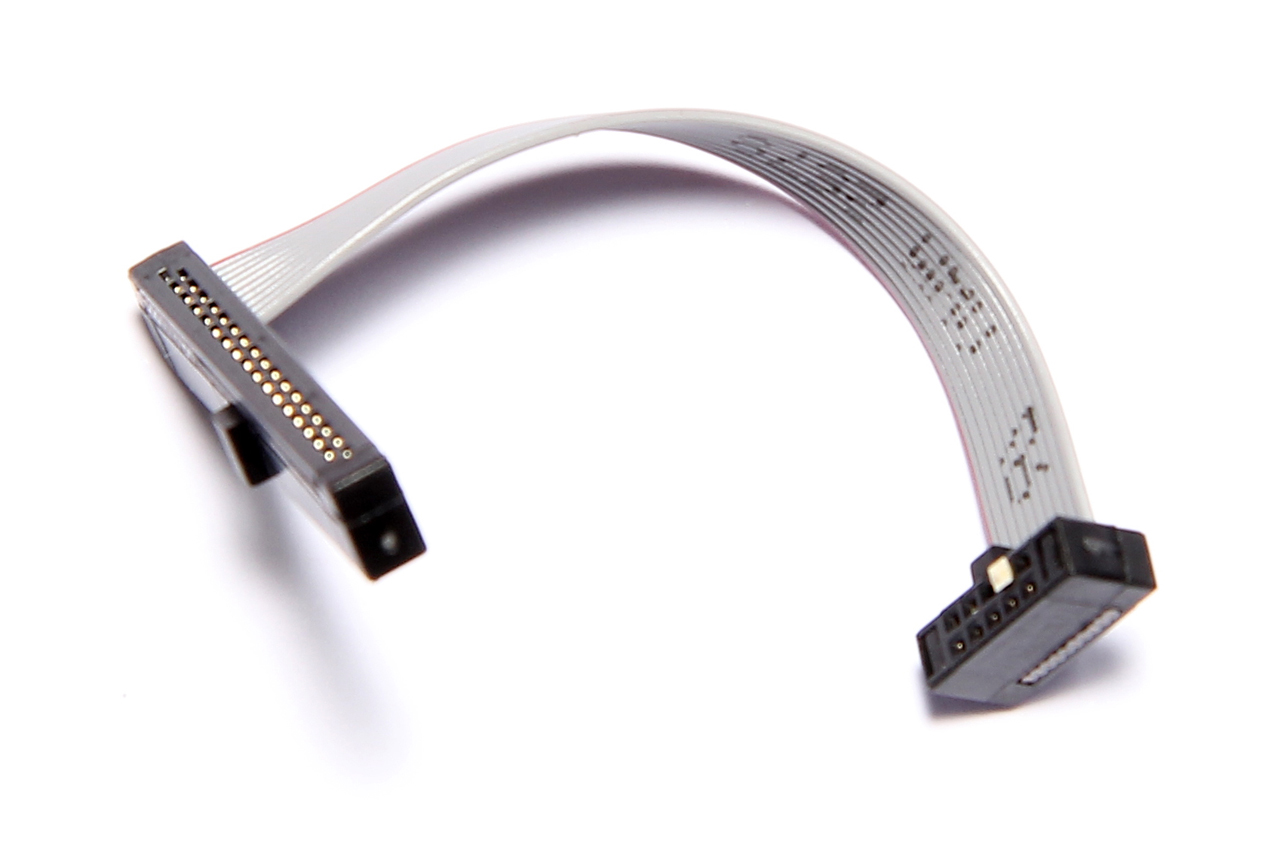

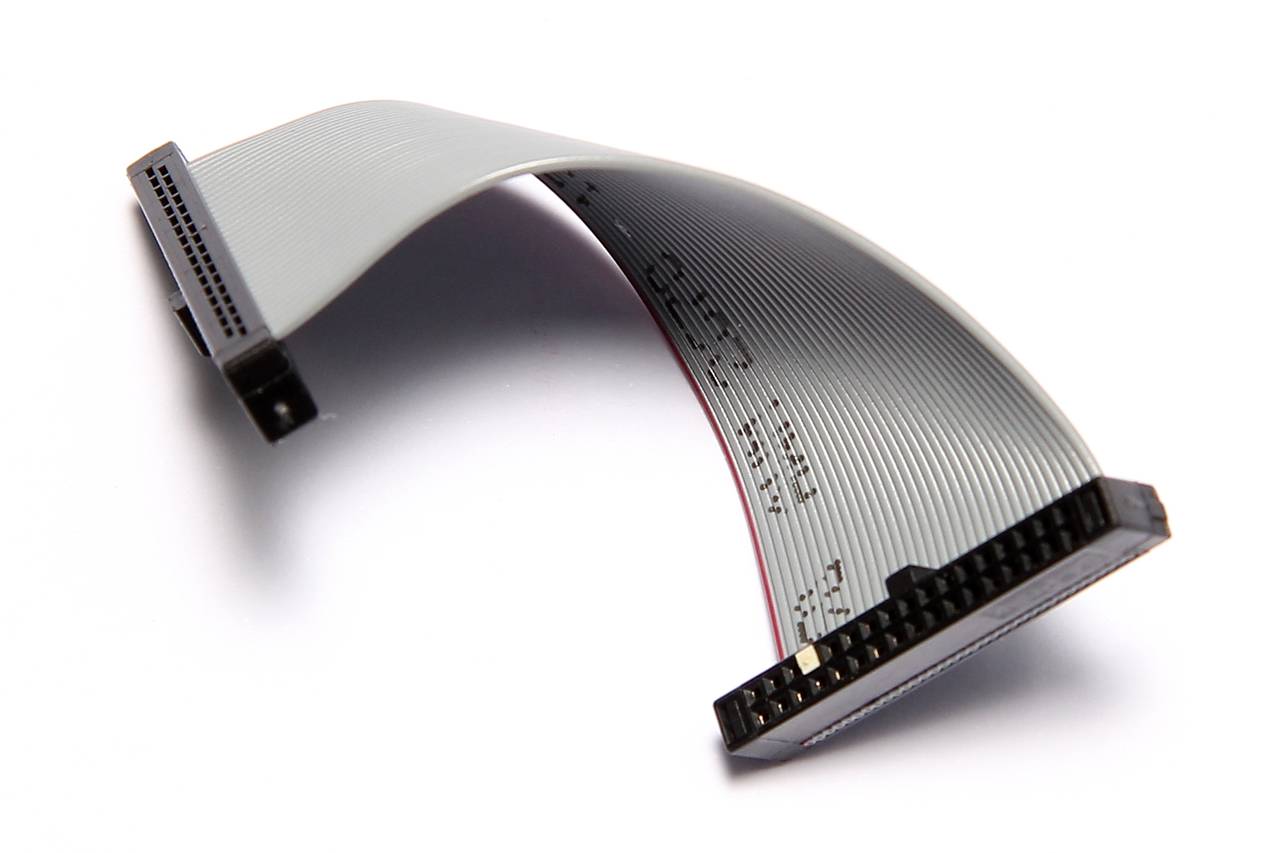

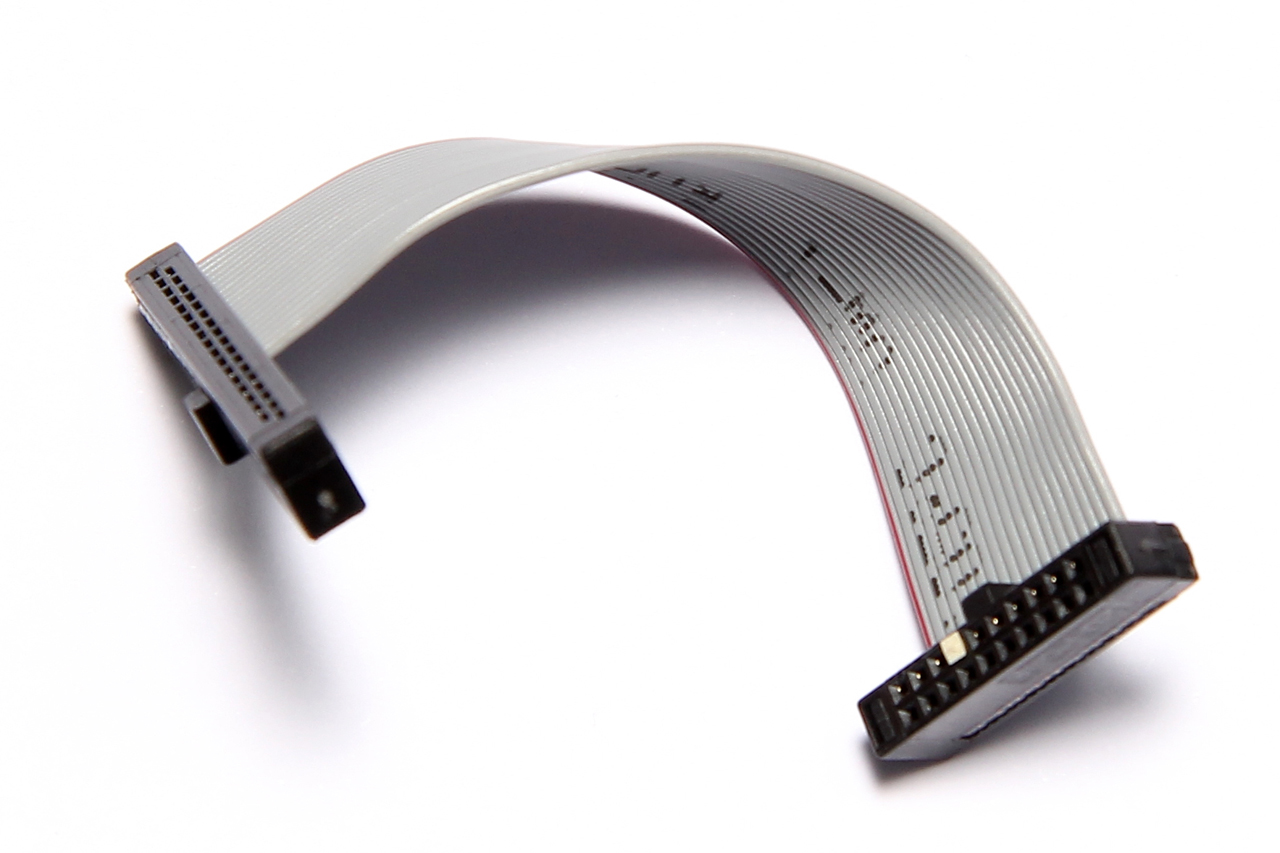

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information
Add-ons

Extend the Converter Mictor-38/IDC20A to MIPI-34
