Debugger Cortex-M (Armv6/7/8) IDC20A (PACK)
OVERVIEW
Debugger Cortex-M (Armv6/7/8) IDC20A (PACK)
Product number:
LA-3254
Supports Arm Cortex-M cores and SecurCore SC000/SC300
trace support ETM Cortex-M via ETB included
GTM and IPU debugging included

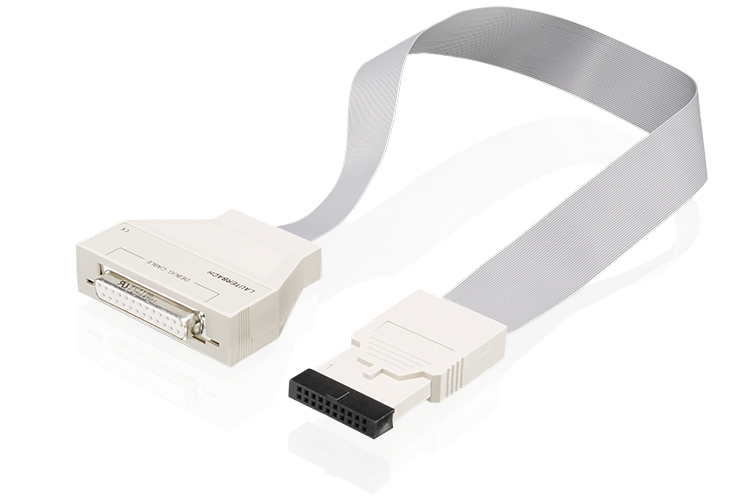

IDC20A debug cable supports 5-pin standard JTAG, cJTAG and
Serial Wire Debug Port, (0.4V - 5V)
includes software for Windows, Linux and MacOSX
cJTAG and SWD require
Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
PowerDebug PRO, PowerDebug E40 or PowerDebug X50
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Debugger Cortex-M (Armv6/7/8) IDC20A (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9 Add.
- LA-7746X JTAG Debugger Extension for Arm7
- LA-7837A JTAG Debugger License for NIOS-II Add.
- LA-3778A JTAG Debugger License for APS Add.
- LA-7845A JTAG Debugger License for StarCore 20 Pin Add
- LA-7760A Debugger License for MIPS32 Add.
- LA-7830A JTAG Debugger License for C5500 DSP Add.
- LA-3750A JTAG Debugger License for ARC Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-7832A JTAG Debugger for ZSP400 DSP Core Additional
- LA-3730A JTAG Debug. License for MicroBlaze Additonal
- LA-7762X JTAG Debugger Extension for XSCALE (ICD)
- LA-3747A JTAG/SPI Debugger License for UBI32 Add.
- LA-2705A JTAG Debugger for ARP32 Add.
- LA-7817A JTAG Debugger License for SH2/SH3/SH4 Add.
- LA-7742X JTAG Debugger Extension for Arm9
- LA-3749A Debug License for VSPA Add.
- LA-7960X License for Multicore Debugging
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-2717A JTAG Debugger for RISC-V Add.
- LA-7838A JTAG Debugger License for C6000 Add.
- LA-7843X Debug Cortex-A/-R (Armv7 32-bit) Ext.
- LA-3760A JTAG Debugger License for Xtensa Add.
- LA-3756A JTAG Debugger License for AndeStar Add.
- LA-3711A JTAG Debugger License for CEVA-X Additional
- LA-3719A Debugger for RH850 Additional
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7847A JTAG Debugger License for C2000 DSP Add.
- LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
- LA-7744X JTAG Debugger Extension for ARM10
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-2758A JTAG Debugger for META Add.
- LA-2759A JTAG Debugger License for C7000 Add.
- LA-3743X Debugger for Armv8/Armv9 Ext.
- LA-7765X JTAG Debugger Extension for Arm11
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A JTAG Debugger License for Hexagon Add.
- LA-3774A JTAG Debugger for TeakLite III Add. (ICD)
- LA-2900X License for PIL Simulation (Cable)
- LA-3744A JTAG Debugger Lic. for APEX ADD.
Available Converters
- LA-7748 Converter IDC20A to TI-14
- LA-3726 ARM Converter 2x ARM-20 to ARM-20
- LA-2101 Adapter Half-Size 20 pin
- LA-2720 Converter IDC20A to MIPS-14
- LA-3770 Converter IDC20A to MIPI-10/20/34
- LA-3722 Converter IDC20A to Mictor-38
- LA-3780 Converter IDC20A to TI-14/TI-20-Compact
- LA-7747 Converter IDC20A to/from ARM-14
