Trace for QorIQ PowerPC via PTS 4GB (PACK)
OVERVIEW

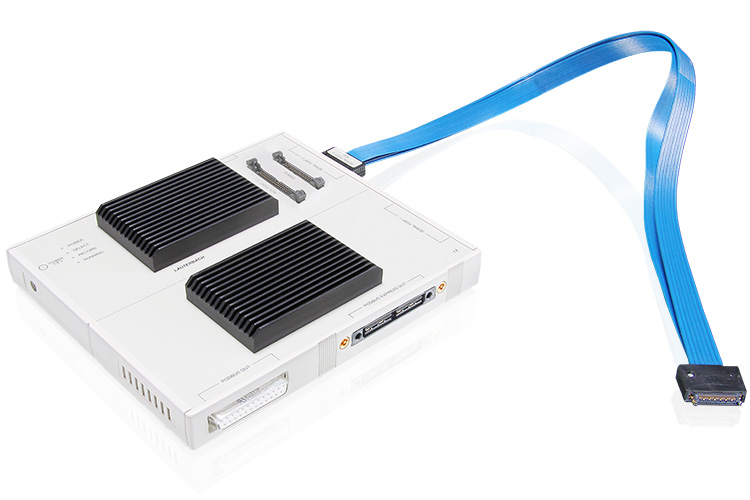

Trace for QorIQ PowerPC via PTS 4GB (PACK)
Product number:
LA-3328

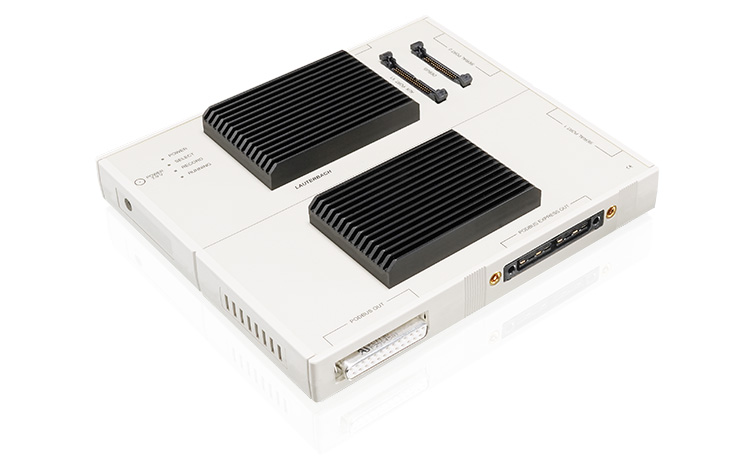

Trace recorder for serial high-speed ports
with 4 Gigabyte trace memory
for QorIQ PowerPC.
Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.)
Voltage range: 0.15 to 1.25 differential voltage.

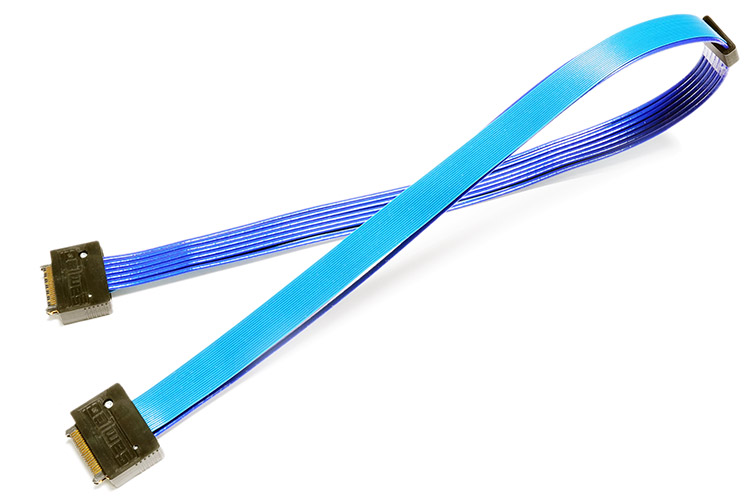

Includes flex exstension for Samtec40 target connector.
For Samtec70 target connector add LA-3830.
For Samtec46 target connector add LA-3831.
For Samtec22 target connector add LA-3832.
Requires PowerDebug X51/X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for QorIQ PowerPC via PTS 4GB (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3734A RH850 Trace License (trace tool)
- LA-3550X PCIe License (tool locked)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2754A Xtensa® Trace License (trace tool)
- LA-3551X HSDP License (tool locked)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3914A ARC® Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-7968X MPC5xxx Trace License (debug probe)
- LA-7970A Arm® Trace License (trace tool)
Available Converters
- LA-3831 Conv. Samtec40/PPCCOP to Samtec46 PowerOrg
- LA-3830 Conv. Samtec40/PPCCOP to Samtec70 PowerOrg
- LA-3529 PCIe Gen 4 Preprocessor for PowerTrace Serial
- LA-3524 PTSERIAL-PCIe-Gen3 x4 Slot-Card-Adapter
- LA-3832 Conv. Samtec40/PPCCOP to Samtec22 PowerOrg
- LA-3525 PTSERIAL-PCIe-Gen3 x8 Slot-Card-Adapter
- LA-3526 PTSERIAL-MiniPCIe-Gen3 x1 Slot-Card-Adapter
- LA-3590 OCuLink Trace Adapter for PowerTrace Serial
- LA-3527 PTSERIAL-PCIe-Gen3 x1 Slot-Card-Adapter
