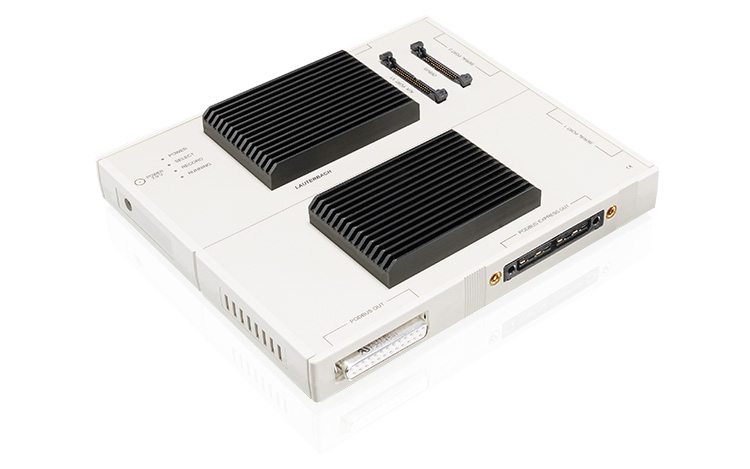

PowerTrace Serial V2 with 4 GByte Memory
PowerTrace Serial V2 with 4 GByte Memory
Trace recorder for serial high-speed ports
with 4 Gigabyte trace memory
and support for optional Mixed-Signal Probe.
This product can only be ordered as part of a package, not separately.
This TRACE32 product is a license carrier.
It requires a suitable, programmed TRACE32 A-license.
Requires PowerDebug X51/X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
Voltage range: 0.15 to 1.25 differential Voltage.
Option Mixed-Signal Probe: LA-2500
HS-Code / Tariff-Code: 90318080
Included in the Following Products
Available in
This product is part of the following product bundles.
- LA-3301 Trace for RISC-V via PT-Serial 4GB (PACK)
- LA-3302 Trace for MPC57xx/SPC5 via PTS 4GB (PACK)
- LA-3303 Trace for RH850 via PT-Serial 4GB (PACK)
- LA-3310 Trace for Arm-ETM via PT-Serial 4GB (PACK)
- LA-3314 Trace for Xtensa® via PT-Serial 4GB (PACK)
- LA-3318 Trace for ARC® via PT-Serial 4GB (PACK)
- LA-3325 Trace for TriCore™ via PT-Serial 4GB (PACK)
- LA-3328 Trace for QorIQ PowerPC via PTS 4GB (PACK)
- LA-3333 Trace for C6000 via PT-Serial 4GB (PACK)
- LA-3336 Trace for CEVA-X via PT-Serial 4GB (PACK)
- LA-3342 Trace for VSPA via PT-Serial 4GB (PACK)
Extend the PowerTrace Serial V2 with 4 GByte Memory
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3550X PCIe License (tool locked)
- LA-3551X HSDP License (tool locked)
- LA-3734A RH850 Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-3914A ARC® Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
Available Converters
- LA-3524 PTSERIAL-PCIe-Gen3 x4 Slot-Card-Adapter
- LA-3525 PTSERIAL-PCIe-Gen3 x8 Slot-Card-Adapter
- LA-3526 PTSERIAL-MiniPCIe-Gen3 x1 Slot-Card-Adapter
- LA-3527 PTSERIAL-PCIe-Gen3 x1 Slot-Card-Adapter
- LA-3529 PCIe Gen 4 Preprocessor for PowerTrace Serial
- LA-3590 OCuLink Trace Adapter for PowerTrace Serial
