TRACE32 CombiProbe 2 for RISC-V
  Highlights
Recommended for debugging of multicore microcontrollers consisting of RISC-V cores and cores from other architectures
Recommended for the parallel operation of two RISC-V microcontrollers in safety-critical applications (hardware redundancy), requires two MIPI20T Whisker

Debug cable and 512 MByte of trace memory
Whisker MIPI20T
TRACE32 Streaming up to 85 MByte/s
TRACE32 Mixed Signal Probe supported


Support
Technical Support





Standard Tool Configuration


ff_cobcortexm_configuration-1

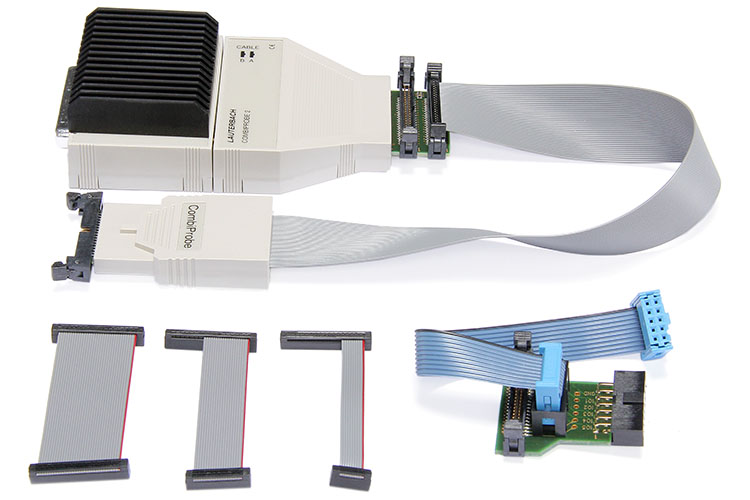

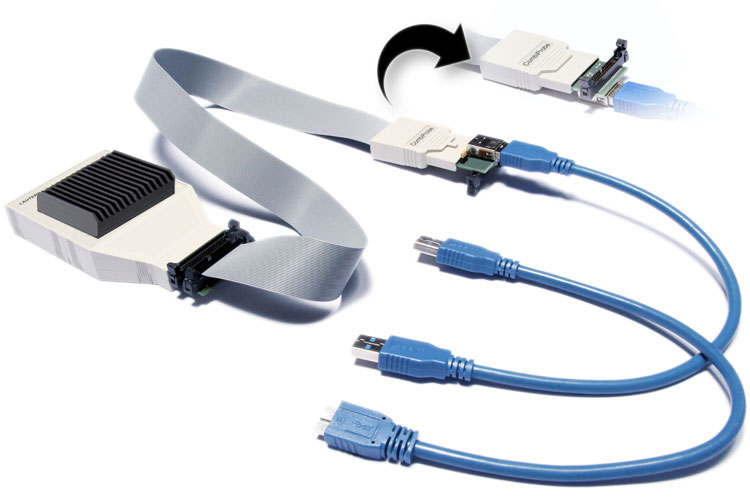

The left photo shows the TRACE32 standard configuration with USB3 as host interface. The right photo shows the TRACE32 configuration for Gigabit Ethernet.



Extended Tool Configurations


ff_cobcortexm_configuration-2

Extended Tool Configurations for CombiProbe 2 for RISC-V

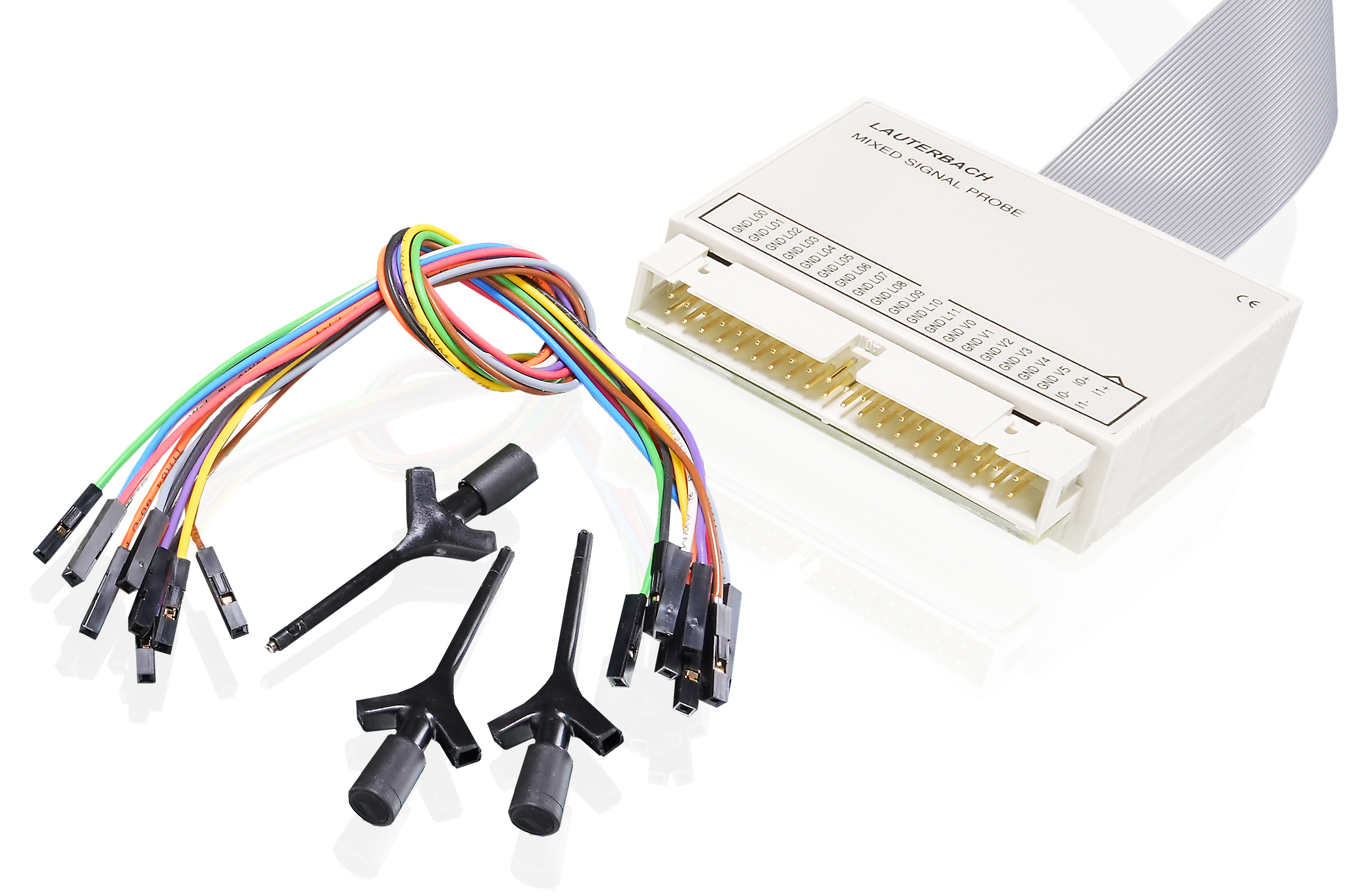

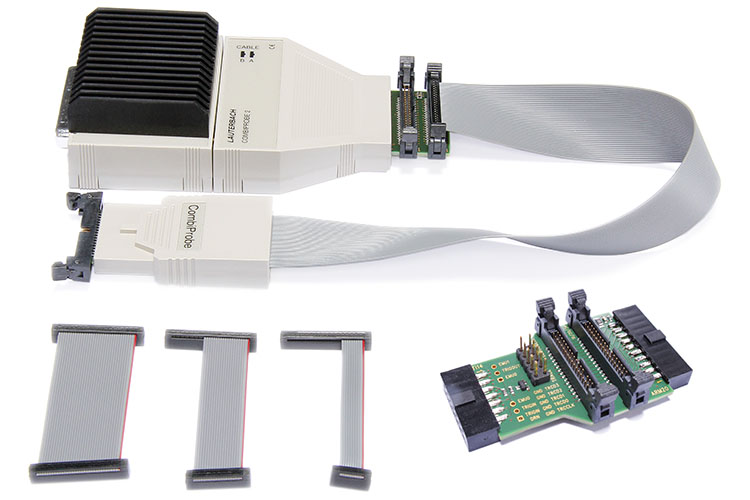

The left photo shows a configuration with two identical whiskers as it is required for the parallel operation of two RISC-V microcontrollers in safty-critical applications. The right photo shows a TRACE32 Mixed Signal Probe connected to connector B.



Connection Cables

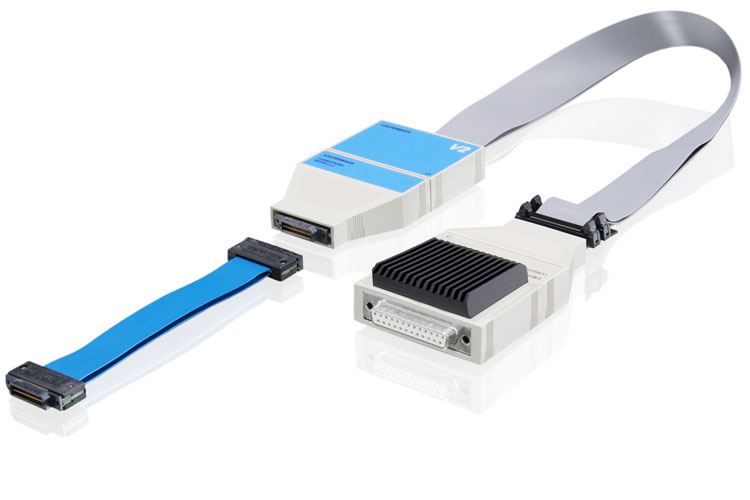

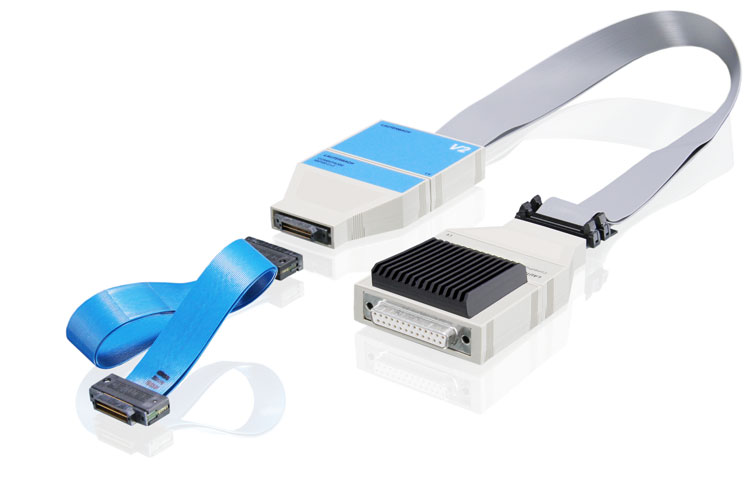

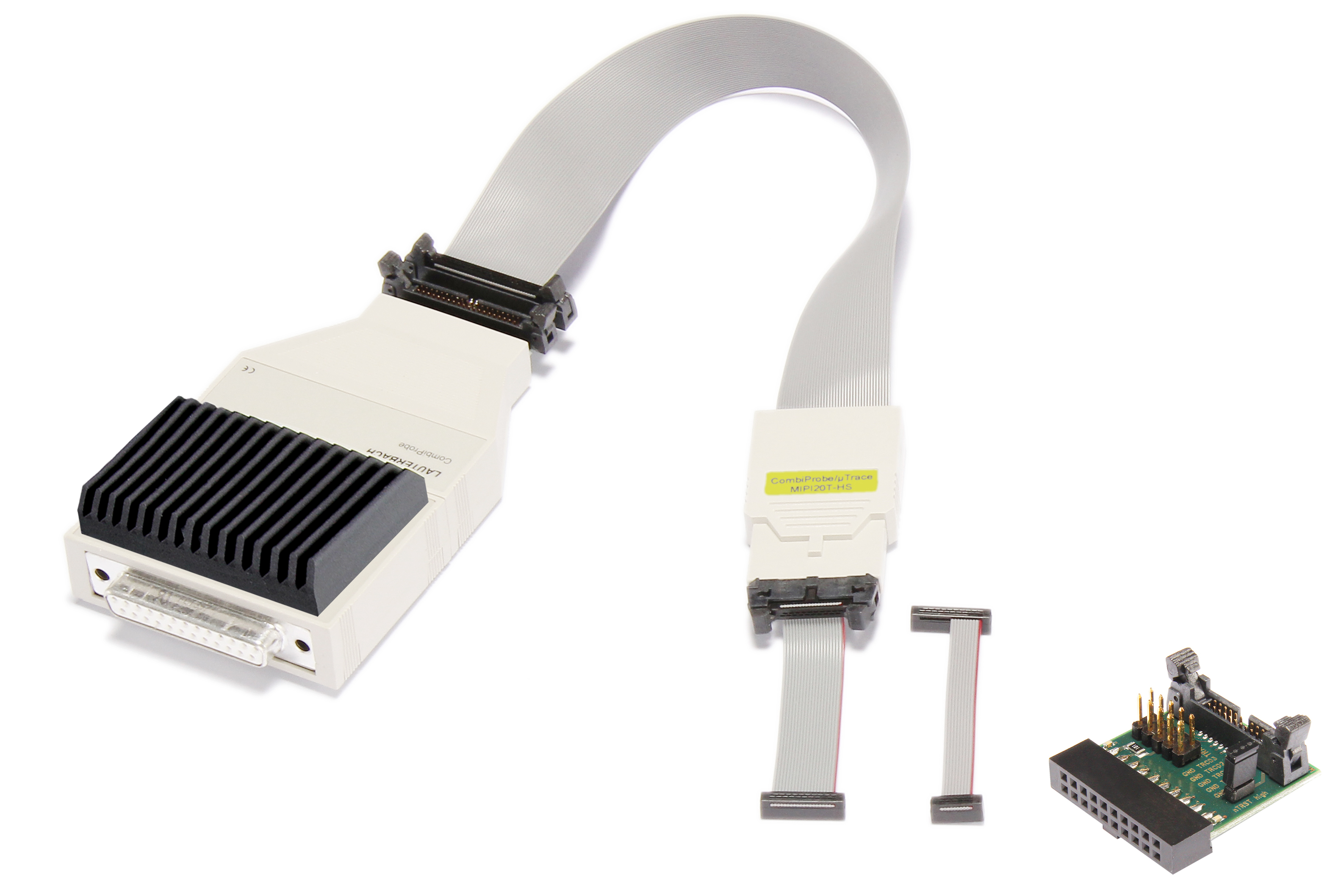

Whisker MIPI20T for RISC-V
  • Support for MIPI20T and MIPI10 pinout
  • Support for standard JTAG, SWD and cJTAG (IEEE 1149.7)
  • 400 MBit/s per trace channel
  • Voltage range 1.2V to 5V

TRACE32 Mixed Signal Probe
  • Record digital/analog signals and correlate them with program flow
  • Digital signals: 12 channels, 0V - 5V, 200 MSamples/s per channel, threshold 0.1V - 2.5V
  • Analog signals: 6 single-ended voltage channels, -12V - +12V, 13-bit resolution, 2 current sense channels, up to 240mV differential shunt resistor voltage, 1 MSample/s conversion rate
