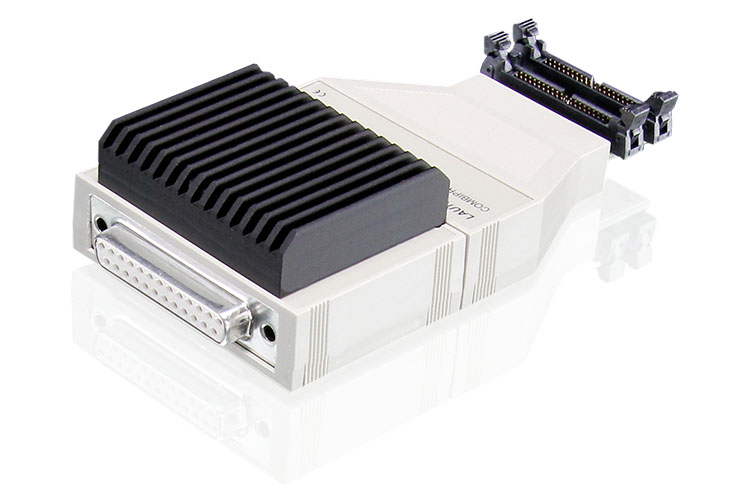

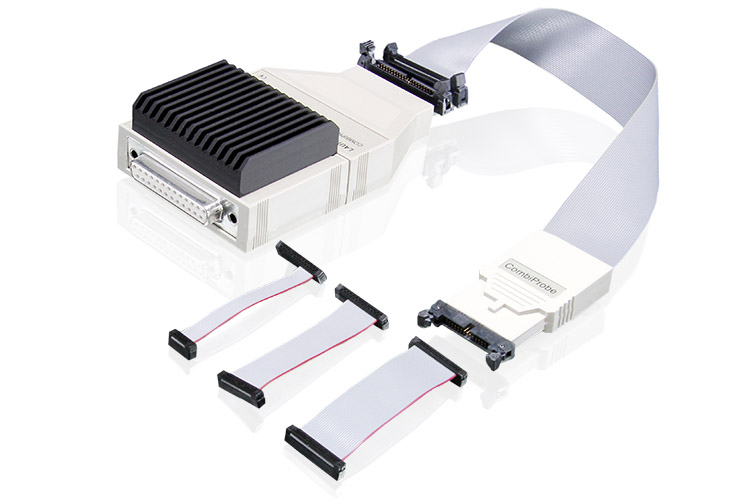

CombiProbe 2 for AUTO26 (PACK)
CombiProbe 2 for AUTO26 (PACK)

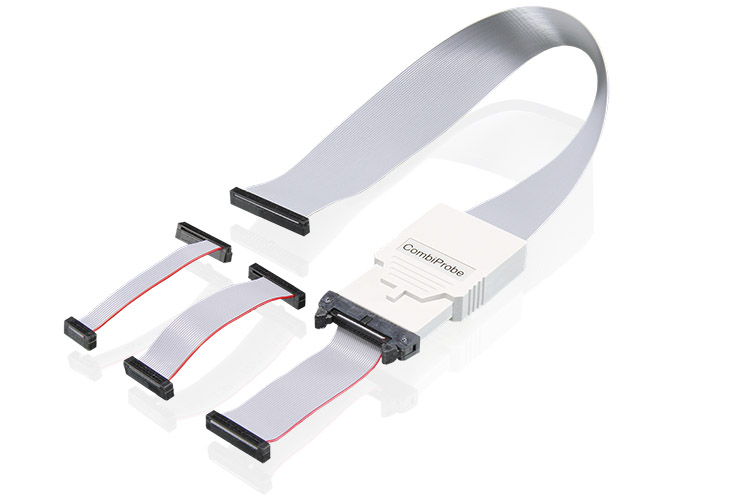

CombiProbe 2 with AUTO26 Whisker
for debugging and DAP Streaming,
supporting DAP (DAP2, DAP3, DAP4, DAPWide), JTAG, DXCPL/DXCM.
For optimal performance, we recommend using a DAP mode.
DAP streaming is supported for TriCore (in DAP mode)
and works most effectively with DAPWide (up to 320 Mbit/s).
For DXCPL/DXCM, you will likely require the CAN-Box (LA-3889) as well.
Voltage Range: 1.8V to 5.0V.
Debug Clock Frequency: 10 kHz to 160 MHz

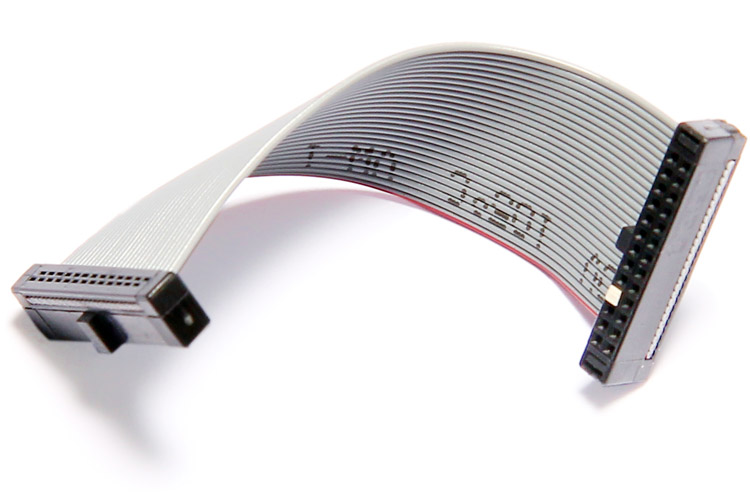

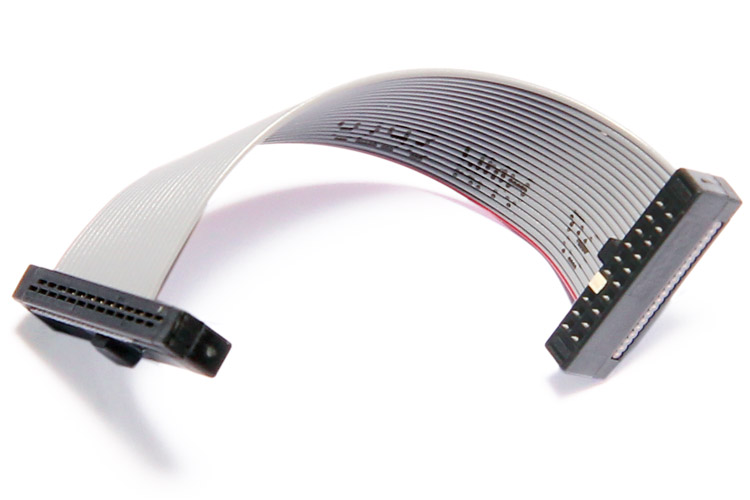

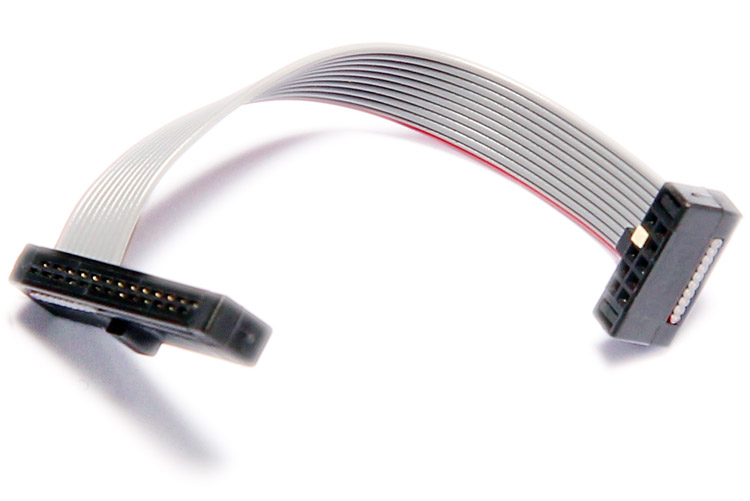

Target Connector: AUTO26, AUTO20, AUTO10
Trace Memory: 512 MByte.
Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.
Requires the following A-license:
LA-7756A (Debugger for TriCore Standard Additional).
Trace analysis and display requires
LA-3799X (Trace License for TriCore ED).
Requires Power Debug Interface USB 3.0,PowerDebug II,
PowerDebug PRO, PowerDebug E40 or PowerDebug X50.
Please note that TriCore SoCs usually support only 3.3V or 5V in DAP
mode. Debug clock frequency in JTAG mode is typically limited to 40
MHz on TriCore SoCs (while up to 160 MHz is supported in DAP mode).
Extend your CombiProbe with a Mixed-Signal Probe (LA-2500),
to record digital and analog signals and correlate them with
MCDS DAP streaming. (Requires PowerView R.2024.02 or higher).
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the CombiProbe 2 for AUTO26 (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9 Add.
- LA-3776A JTAG Debugger for Intel x86/x64 Add.
- LA-7760A Debugger License for MIPS32 Add.
- LA-3750A Debug License for ARC® Add.
- LA-2760A Debugger for dsPIC Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-7960X License for Multicore Debugging
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-7844A Debug Cortex-M (Armv6/7/8 32-bit) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A Debug License for Hexagon Add.
