CombiProbe 2 for dsPIC Dual Core (PACK)
OVERVIEW
CombiProbe 2 for dsPIC Dual Core (PACK)
Product number:
LA-3084

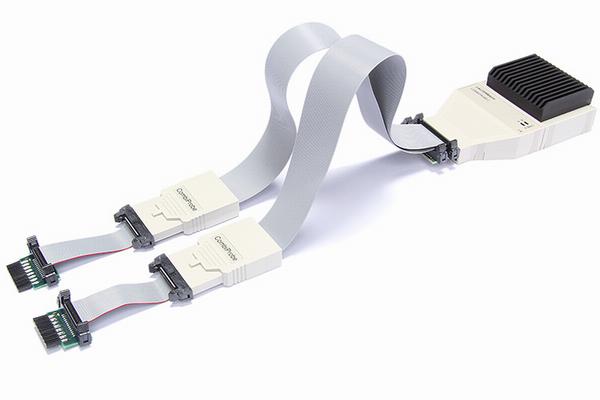

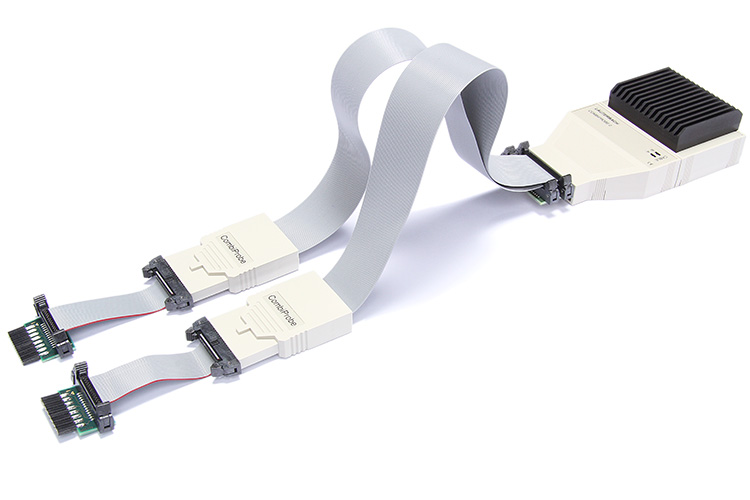

CombiProbe with two whisker cables
to debug dual-core dsPIC controller from Microchip.
Supports dsPIC33A, dsPIC33C, and dsPIC33E.
Requires the following A-license:
LA-2760A (Debugger for PIC Additional)
LA-7960X (License for Multicore Debugging).
Requires one of the following debug base modules:
PowerDebug X-Series, PowerDebug E-Series
PowerDebug PRO, PowerDebug II, PowerDebug USB 3.

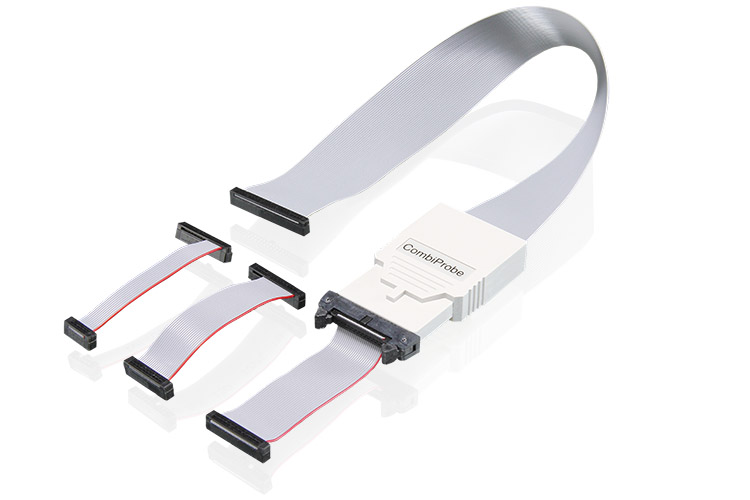

Includes two Debug Whisker with 26 pin connector (1.8V to 5.0V).

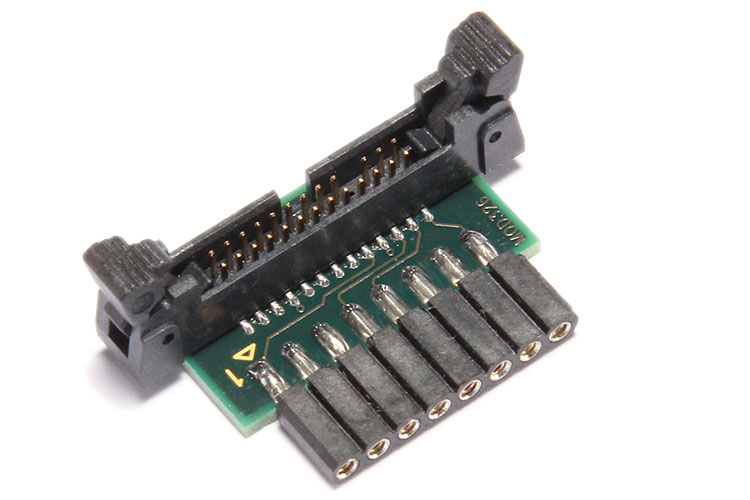

Includes Converter to MICROCHIP-8 header.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the CombiProbe 2 for dsPIC Dual Core (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A JTAG Debugger for Synopsys ASIP Cores Add.
- LA-3743A Debugger for Armv8/Armv9-A/R/X Add.
- LA-3776A JTAG Debugger for Intel x86/x64 Add.
- LA-7837A Debug License for Nios® II Add.
- LA-7760A Debugger License for MIPS32 Add.
- LA-3750A Debug License for ARC® 32-bit Add.
- LA-2760A Debugger for dsPIC Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-3730A Debug License for MicroBlaze Additional
- LA-7960X License for Multicore Debugging
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-7838A Debug License for C6000 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-3711A Debug License for CEVA-X Add.
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7847A Debug License for C2000 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A Debug License for Hexagon Add.
