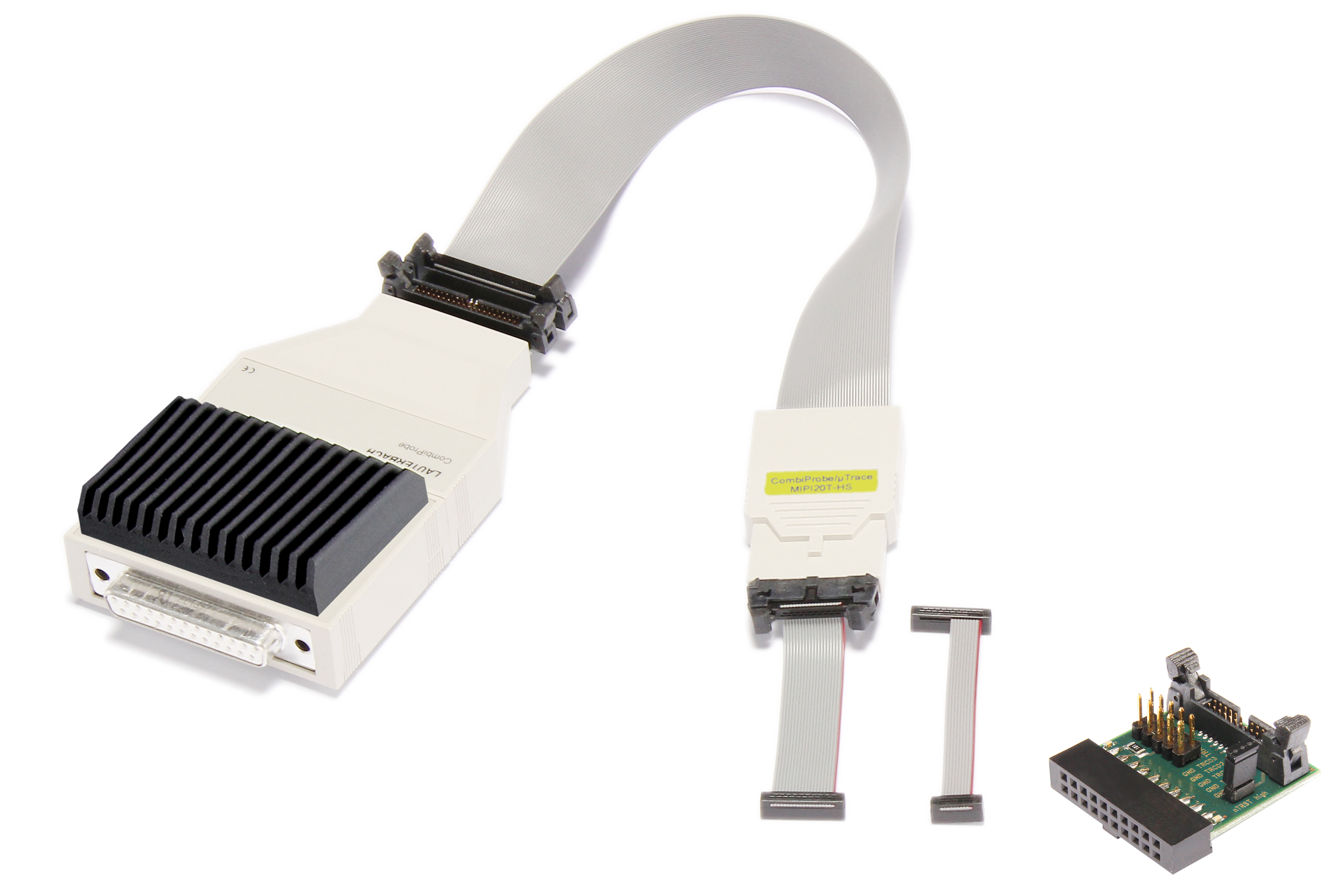

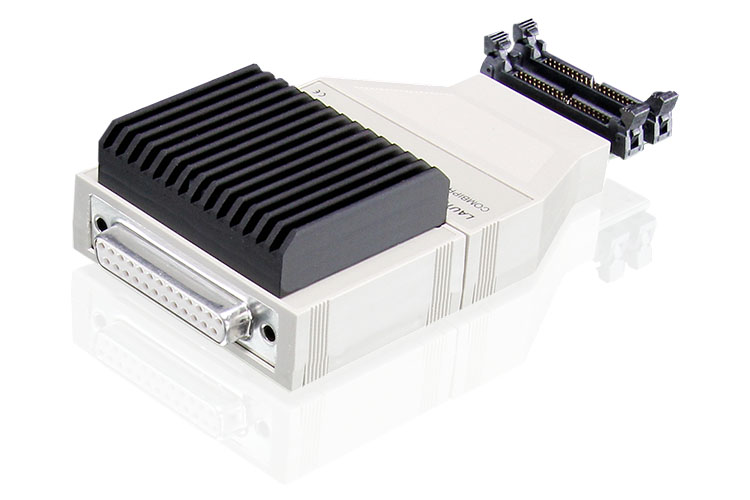

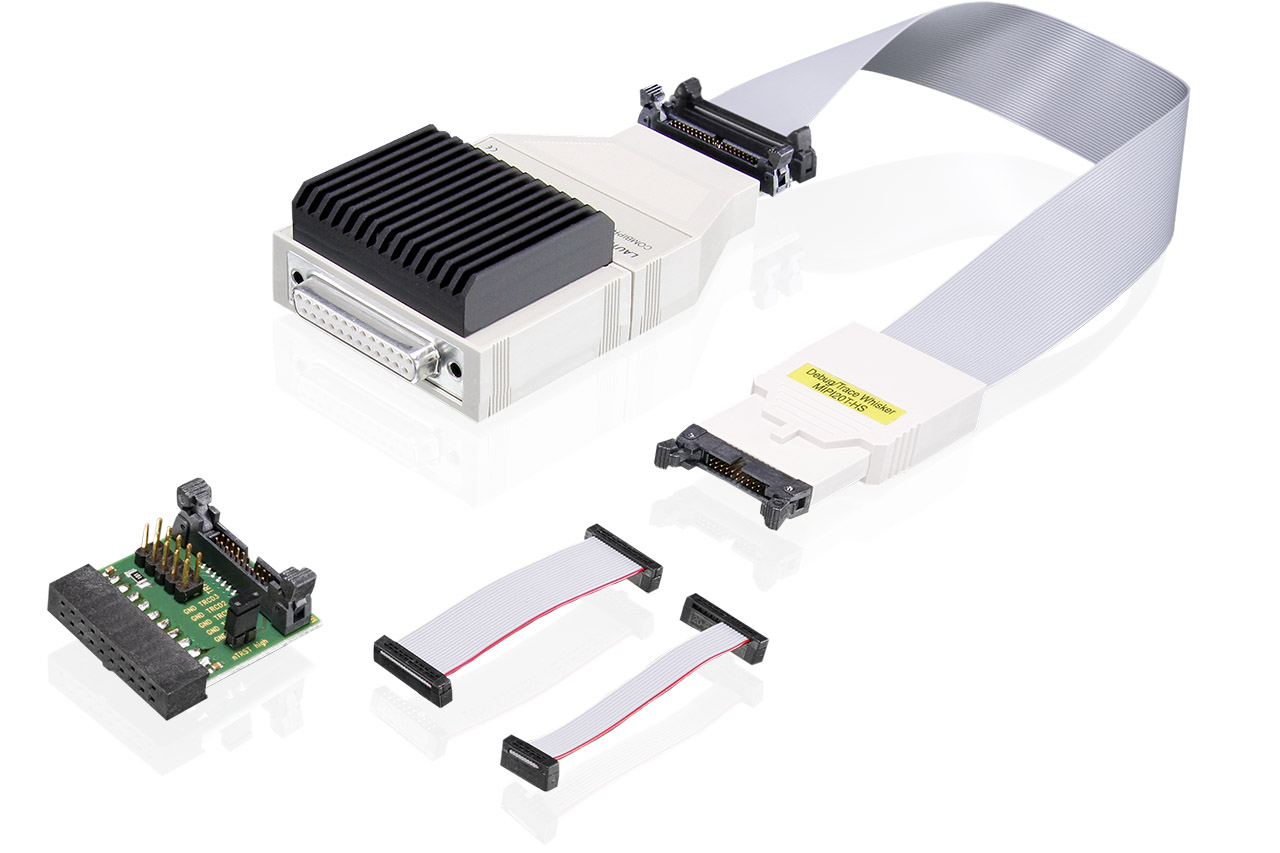

CombiProbe 2 for MIPI20T-HS (PACK)
CombiProbe 2 for MIPI20T-HS (PACK)

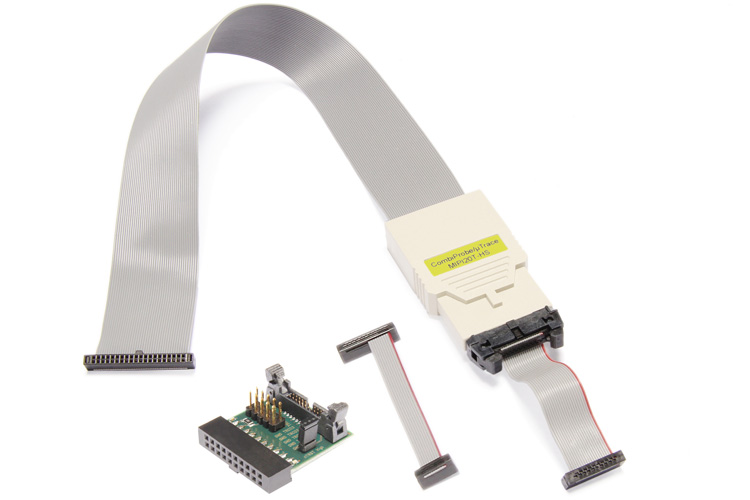

CombiProbe 2 with MIPI20-HS whisker for debugging and tracing.
Trace memory: 512 MByte.
Maximum trace port width: 4 pins.
Maximum trace bandwidth: 400 MBit/s per trace pin.
Requires at least one of the following A-licenses:
LA-3743A Debug. for Cortex-A/R (Armv8 and Armv9) Add.
LA-7844A Debug Cortex-M (Armv6/7/8 32-bit) Add.
LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
LA-7765A JTAG Debugger License for Arm11 Add.
LA-7742A JTAG Debugger License for Arm9 Add.
LA-7746A JTAG Debugger License for Arm7 Add.
LA-2540A Debugger for RISC-V 32-bit Add.
LA-2541A Debugger for RISC-V 64-bit Add.
Supports the following trace licenses:
LA-7970X Trace License for the Arm Architecture
LA-2767X Trace License for RISC-V (Debug Cable/COB).
Requires Power Debug Interface USB 3.0,
PowerDebug II, PowerDebug PRO,
PowerDebug E40 or PowerDebug X50.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the CombiProbe 2 for MIPI20T-HS (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9 Add.
- LA-3776A JTAG Debugger for Intel x86/x64 Add.
- LA-7760A Debugger License for MIPS32 Add.
- LA-3750A Debug License for ARC® Add.
- LA-2760A Debugger for dsPIC Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-7960X License for Multicore Debugging
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-7844A Debug Cortex-M (Armv6/7/8 32-bit) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A Debug License for Hexagon Add.
