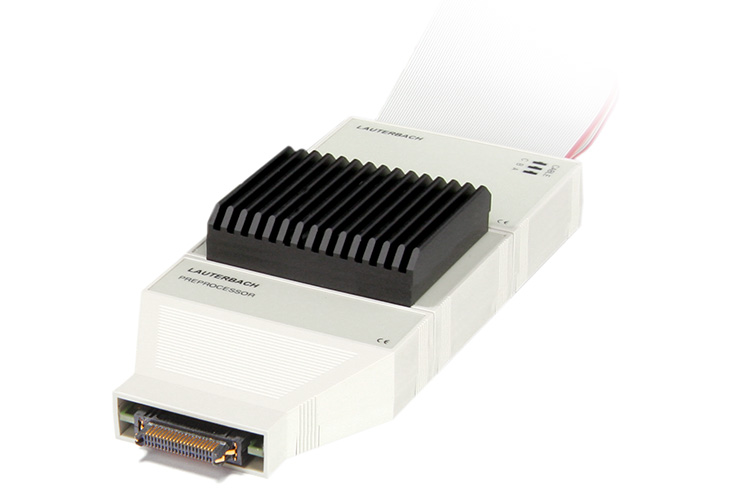

Serial Preprocessor Hardware V2
OVERVIEW
Serial Preprocessor Hardware V2
Product number:
LA-3140
Preprocessor for recording high-speed serial off-chip trace
suitable for HSSTP, AGBT, Aurora.
Requires PowerTrace II / III, PowerTrace PX
or PowerTrace Ethernet Version 6 or higher.
Supported maximum speed per lane with PowerTrace II and III:
4 lanes @ 5.00Gbps,
3, 2, or 1 lanes @ 6.25Gbps
This product can only be ordered as part of a package, not separately.
This TRACE32 Product is a license carrier. It requires a
suitable, programmed TRACE32 A-license.
Bundles
Included in the Following Products
Available in
This product is part of the following product bundles.
- LA-3304 Serial Trace Probe for TriCore™
- LA-3305 Serial Trace Probe for MPC5xxx
- LA-3307 Serial Trace Probe for RH850
- LA-3309 Serial Trace Probe for Arm ETM
- LA-3313 Serial Trace Probe for Xtensa®
- LA-3324 Serial Trace Probe for RISC-V
- LA-3327 Serial Trace Probe for QorIQ PowerPC
- LA-3332 Serial Trace Probe for C6000
- LA-3344 Serial Trace Probe for VSPA
- LA-3352 Serial Trace Probe for PPC4xx
Add-ons
Extend the Serial Preprocessor Hardware V2
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-3900A PPC4xx Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
