Trace for Arm-ETM via Serial Prepro. (PACK)
OVERVIEW
Trace for Arm-ETM via Serial Prepro. (PACK)
Product number:
LA-3309

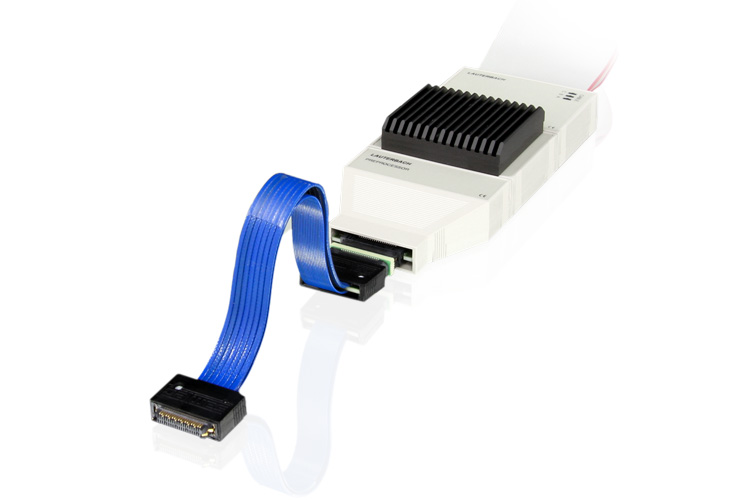

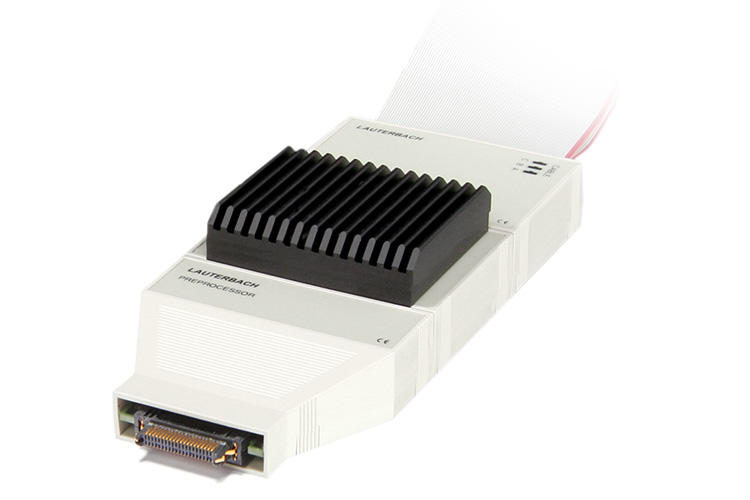

Serial preprocessor for Arm-ETM with HSSTP

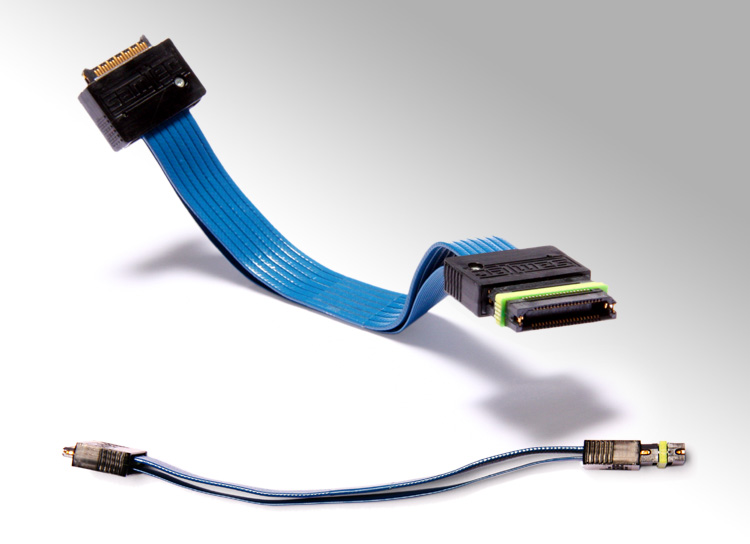

Connector cable and software
Supported maximum speed per lane:
4 lanes @ 5.00Gbps
3 lanes @ 6.25Gbps
2 lanes @ 6.25Gbps
1 lane @ 6.25Gbps
Support ETMv1.x, ETMv3.x, ETMv4,
all versions of CoreSight-ETM and
Marvell's SETM
Requires PowerTrace II / III
voltage range 0.15V to 1.2V
HS-Code / Tariff-Code: 90318080
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for Arm-ETM via Serial Prepro. (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
