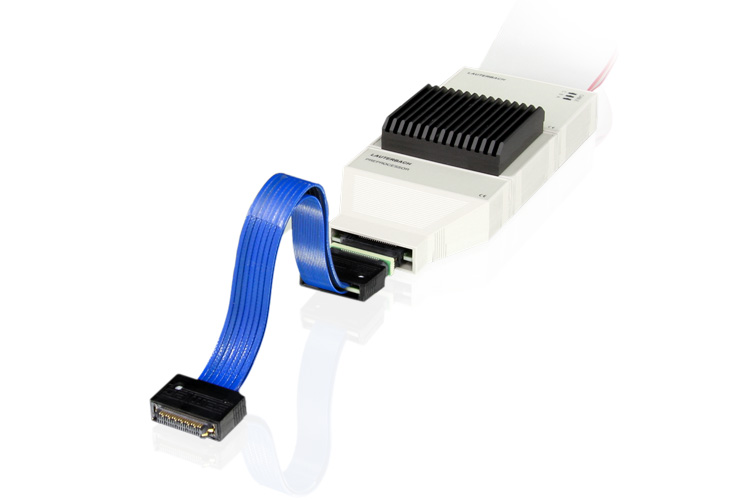

Serial Trace Probe for RISC-V
OVERVIEW
Serial Trace Probe for RISC-V
Product number:
LA-3324

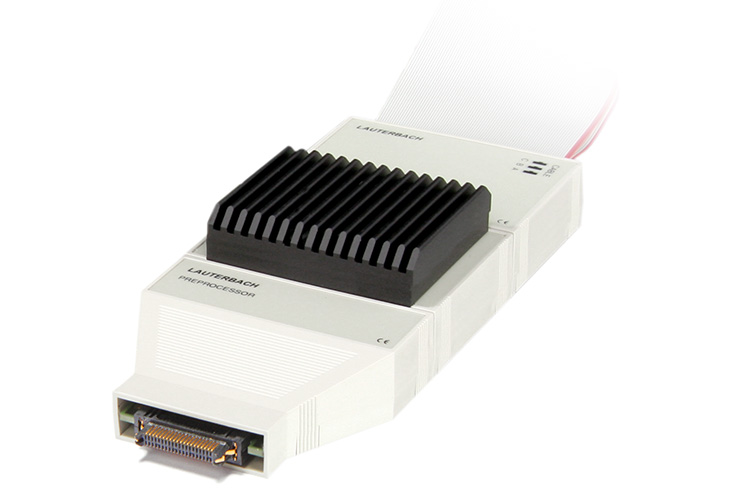

Serial preprocessor for RISC-V cores via AURORA.

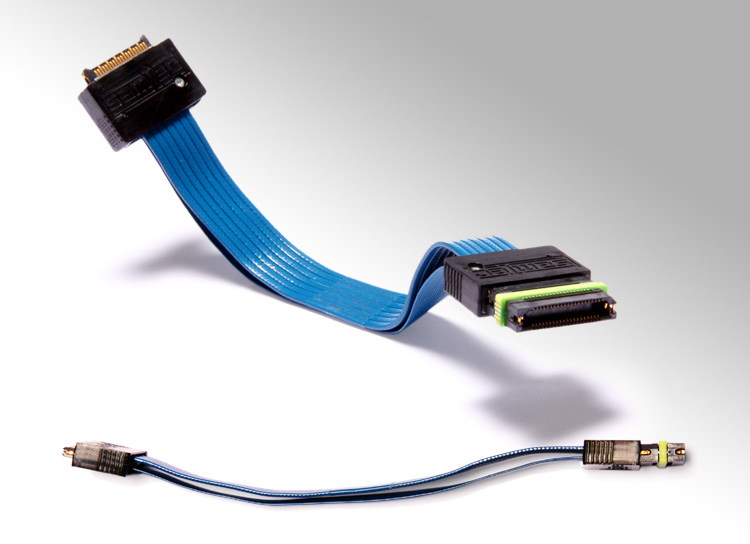

Includes Samtec 40-pin flex extension and software.
Requires PowerTrace II or PowerTrace III.
Records up to 3 lanes with 6.25 Gbit/s per lane
or 4 lane with 5.00 Gbit/s per lane.
Voltage range: 0.15 to 1.25 differential Voltage.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Serial Trace Probe for RISC-V
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-3900A PPC4xx Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
