Serial Trace Probe for RH850
OVERVIEW

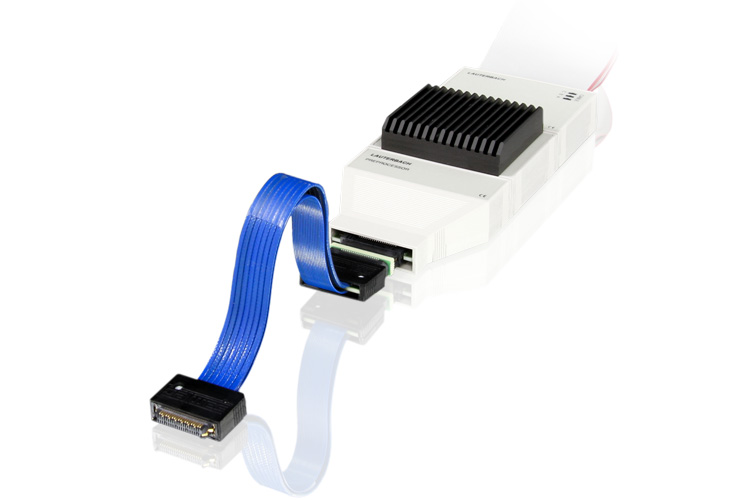

Serial Trace Probe for RH850
Product number:
LA-3307
Not recommended for new projects
Preprocessor for RH850 with
serial Nexus trace interface
Includes Samtec 40-pin flex extension cable.
Requires PowerTrace II or PowerTrace III.
Supported speeds per lane:
4 lanes at 4.25Gbps
3 lanes at 6.0Gbps
2 lanes at 6.25Gbps
1 lane at 6.25Gbps
We recommend using this product only for existing projects. For new projects, please consider one of the available superseding products. If no suitable product is available, feel free to contact us to discuss alternative solutions.
LA-3303 Trace for RH850 via PT-Serial 4GB (PACK)
LA-3323 Trace for RH850 via PT-Serial 8GB (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Serial Trace Probe for RH850
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-3900A PPC4xx Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
