Serial Trace Probe for PPC4xx
OVERVIEW

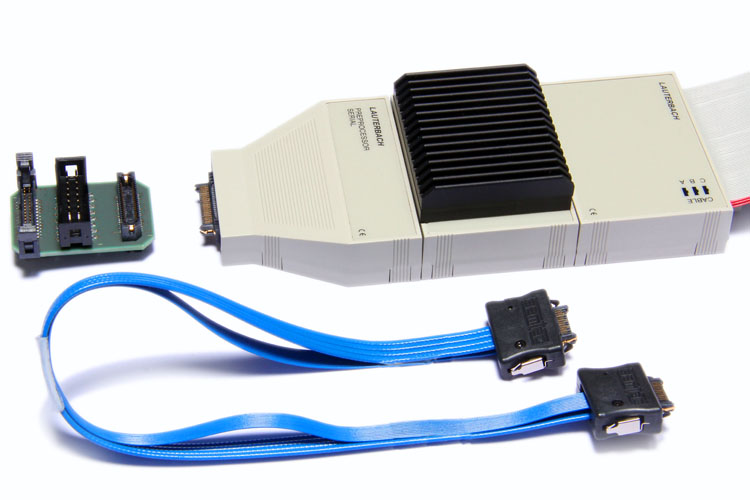

Serial Trace Probe for PPC4xx
Product number:
LA-3352
New Product
Preprocessor for recording serial traces (Aurora),
including a license for decoding of traces
emitted by PPC4xx cores.
Requires PowerTrace II or PowerTrace III.

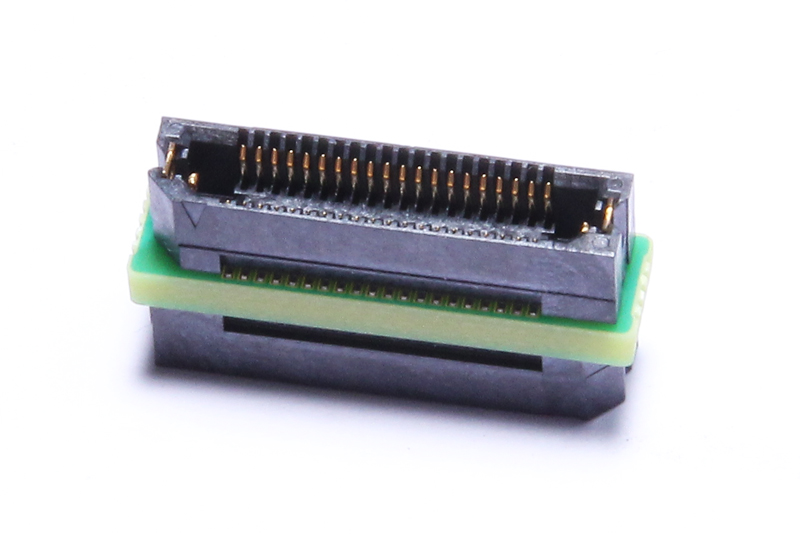

Converters for Samtec22/46/70 have to be ordered separately
Records up to 3 lanes with 6.25 Gbit/s per lane
or 4 lane with 5.00 Gbit/s per lane.
Voltage range: 0.15 to 1.25 differential voltage.
This product can be ordered now.
HS-Code / Tariff-Code: 90318080
Product Details
Technical Information
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Serial Trace Probe for PPC4xx
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
