Trace for QorIQ via Serial Prepro. (PACK)
OVERVIEW
Trace for QorIQ via Serial Prepro. (PACK)
Product number:
LA-3327

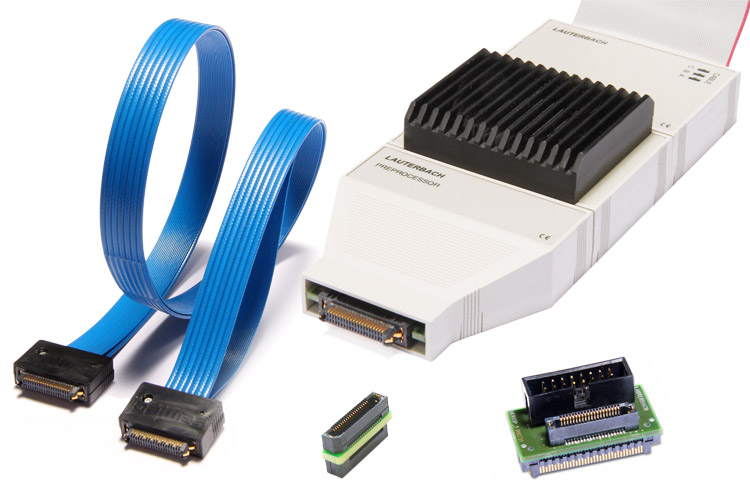

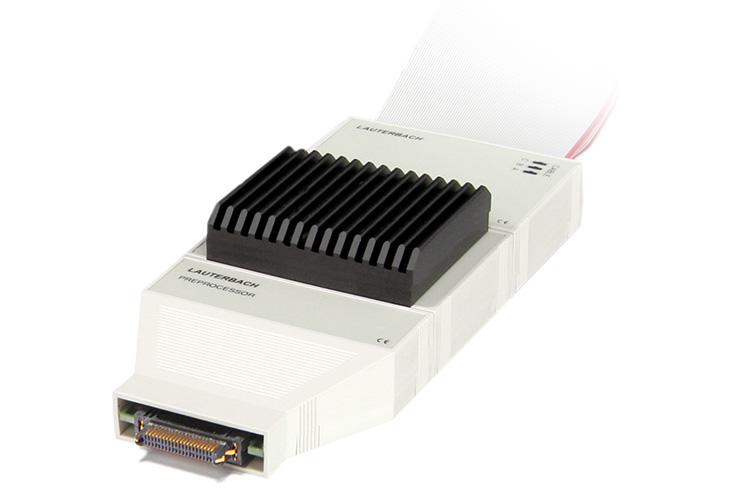

Preprocessor serial trace from QorIQ PowerPCs via Aurora.

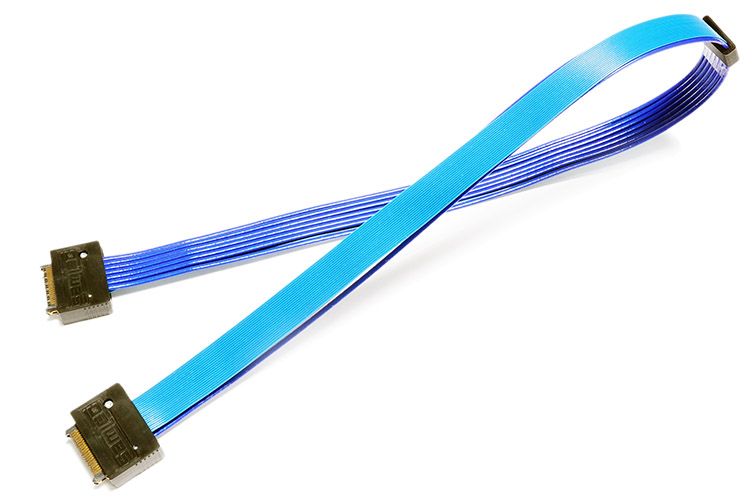

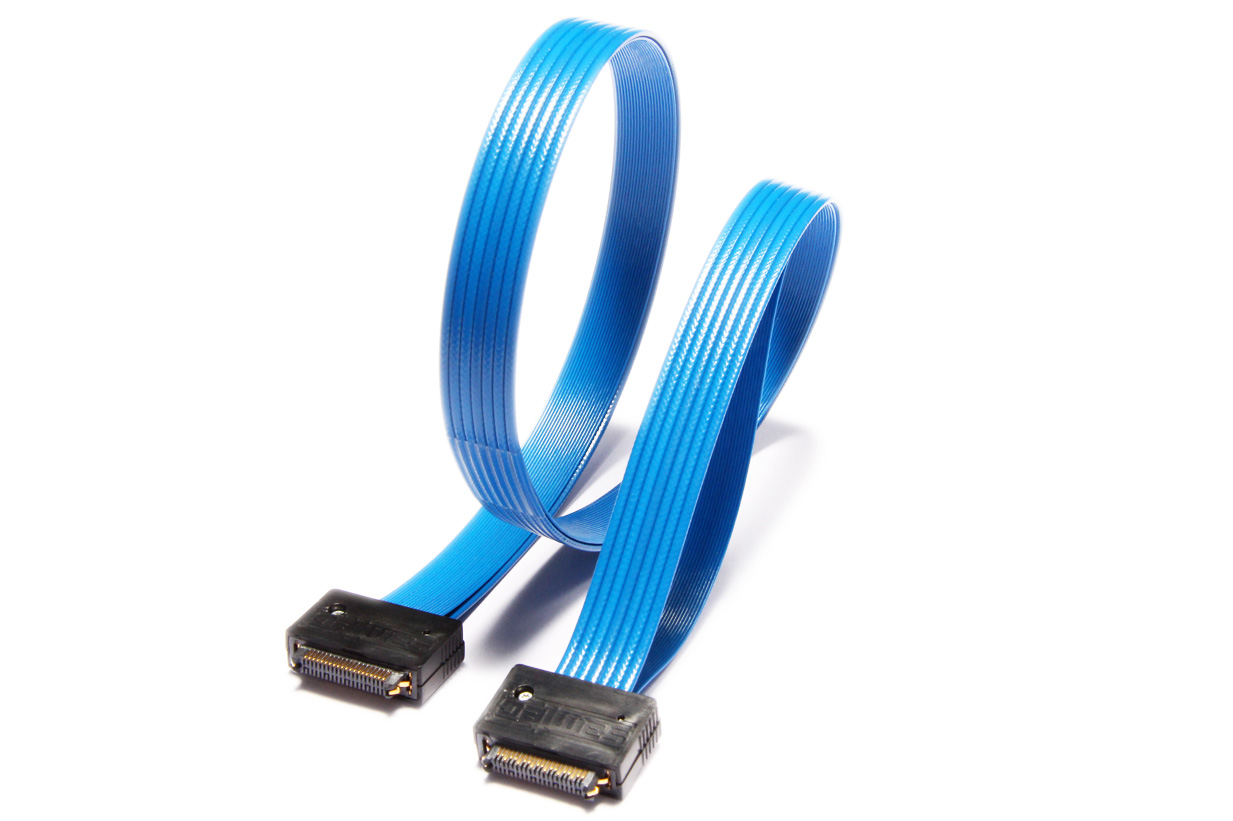

Includes Samtec 40-pin flex extension,

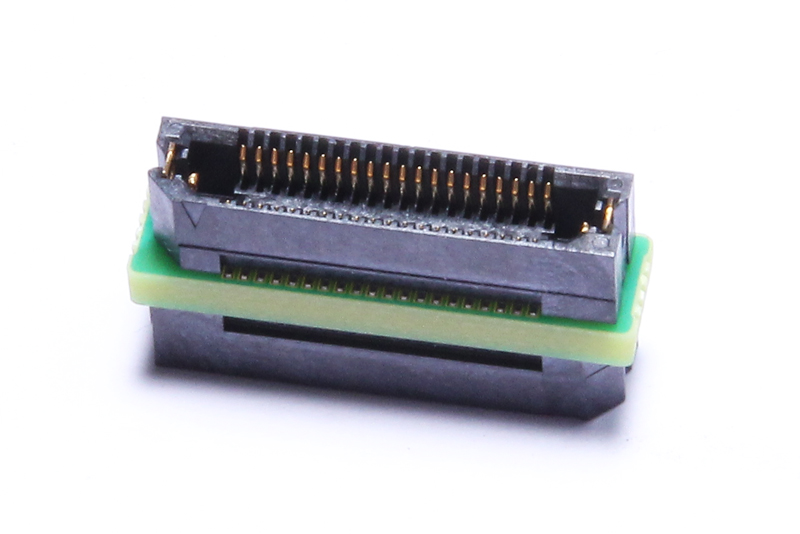

converter to Samtec70, and software.
Records up to 3 lanes with 6.25 Gbit/s per lane
or 4 lane with 5.00 Gbit/s per lane.
Voltage range: 0.15 to 1.25 differential Voltage.
Requires PowerTrace II or PowerTrace III.
For Samtec46 target connector, add LA-3831.
For Samtec22 target connector, add LA-3832.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information

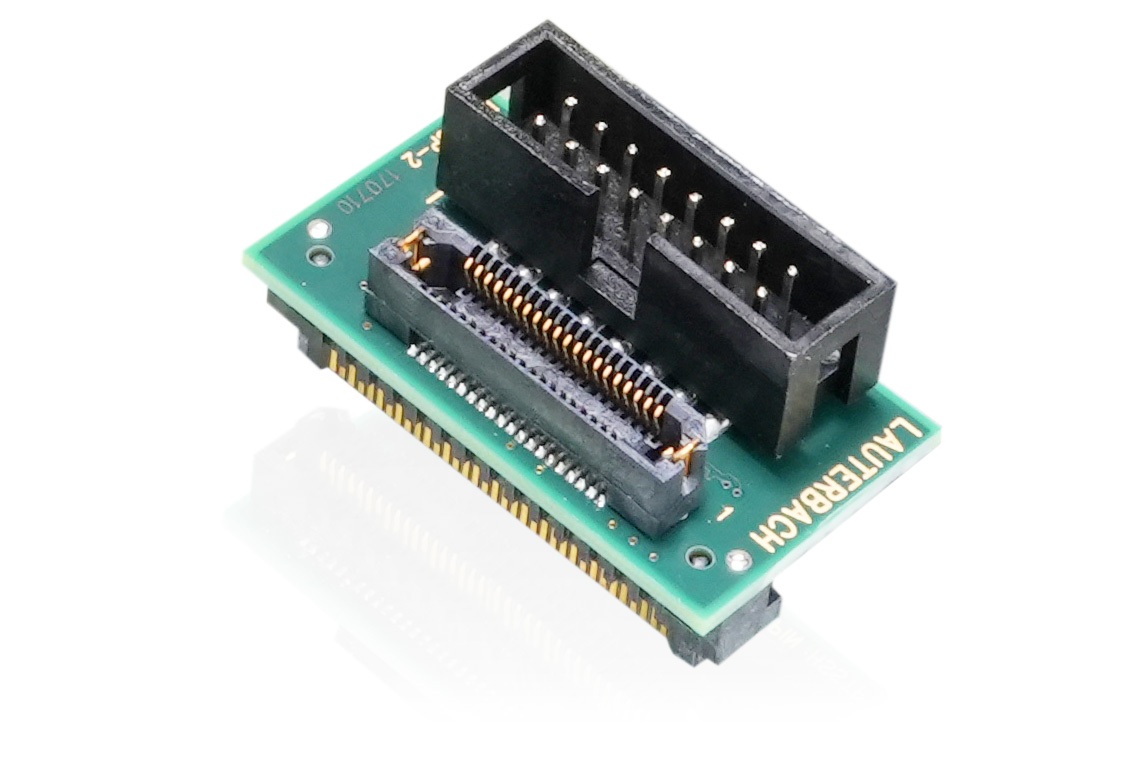

LA-3830
Add-ons
Extend the Trace for QorIQ via Serial Prepro. (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3734A RH850 Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2754A Xtensa® Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-7968X MPC5xxx Trace License (debug probe)
- LA-7970A Arm® Trace License (trace tool)
