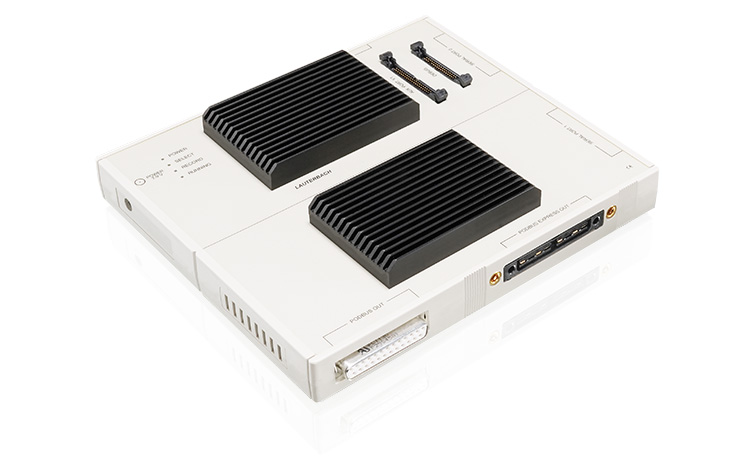

Trace for C6000 via PT-Serial 4GB (PACK)
OVERVIEW
Trace for C6000 via PT-Serial 4GB (PACK)
Product number:
LA-3333
Trace recorder for serial high-speed ports
with 4 Gigabyte trace memory
for C6000.
Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.)
Voltage range: 0.15 to 1.25 differential voltage.
Optional Mixed-Signal Probe with LA-2500.
Requires accessory kit LA-3521 or LA-3522.
Requires PowerDebug X51/X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for C6000 via PT-Serial 4GB (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3734A RH850 Trace License (trace tool)
- LA-3550X PCIe License (tool locked)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2754A Xtensa® Trace License (trace tool)
- LA-3551X HSDP License (tool locked)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3914A ARC® Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
