Aurora 2 Preprocessor for PowerTrace Serial

Aurora 2 Preprocessor for PowerTrace Serial
OVERVIEW

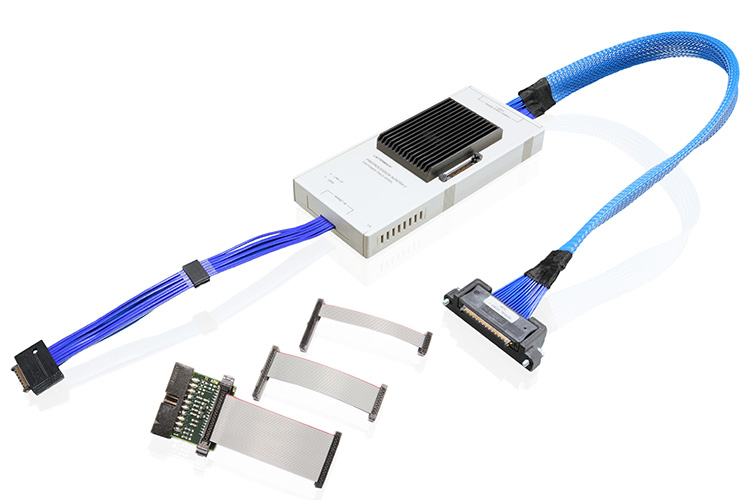

Aurora 2 Preprocessor for PowerTrace Serial

Product number: LA-3945

Preprocessor to extend the recording speed of a PowerTrace Serial
for serial lanes with Aurora/HSSTP protocol.

Support up to 4 lanes with up to 22.5Gbit/s each.

Requires PowerTrace Serial (1 or 2) and
TRACE32 software DVD 2022/09 or newer.

Product Details

Technical Information

Technical Data

Pinout Specification

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information

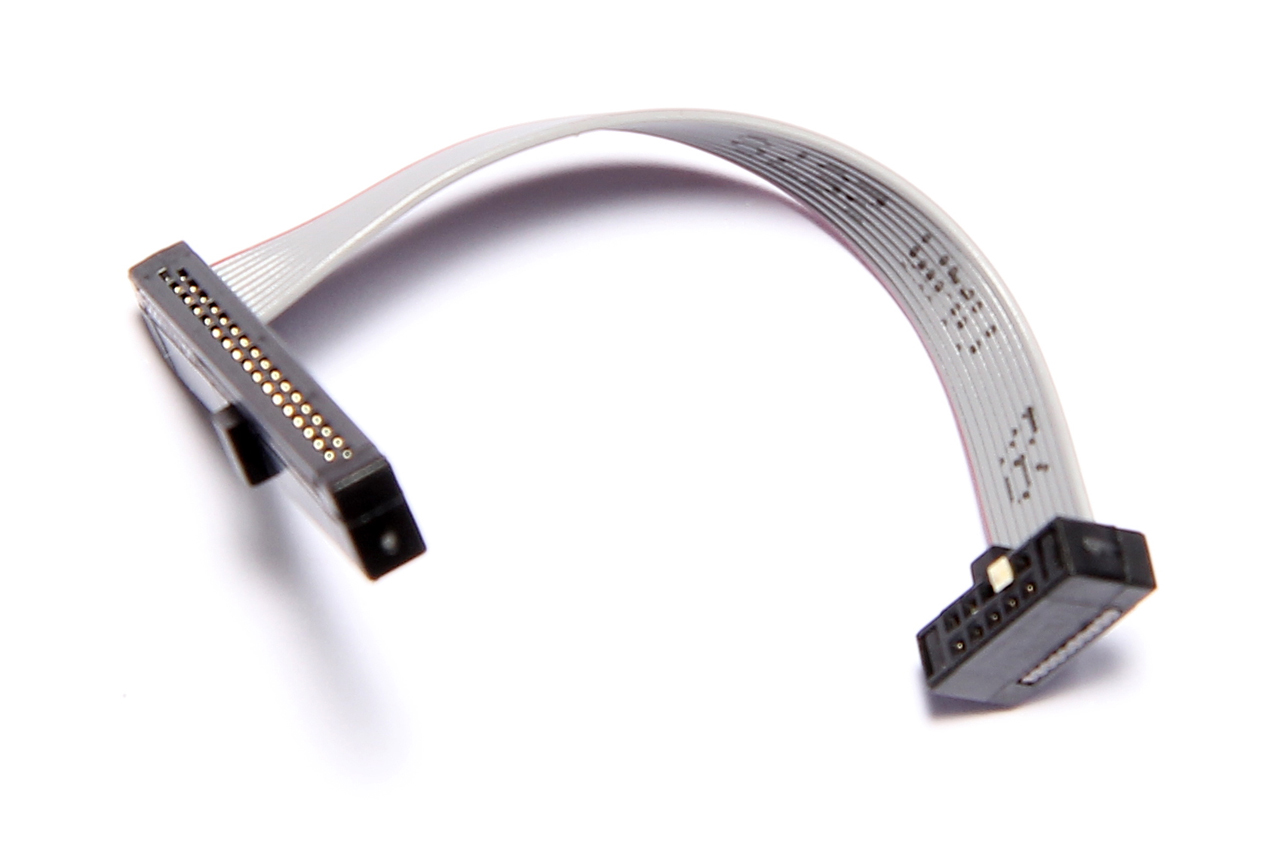

MIPI-Half-Size-Cable 34-10 MIPI-Half-Size-Cable 34-10
LA-1937

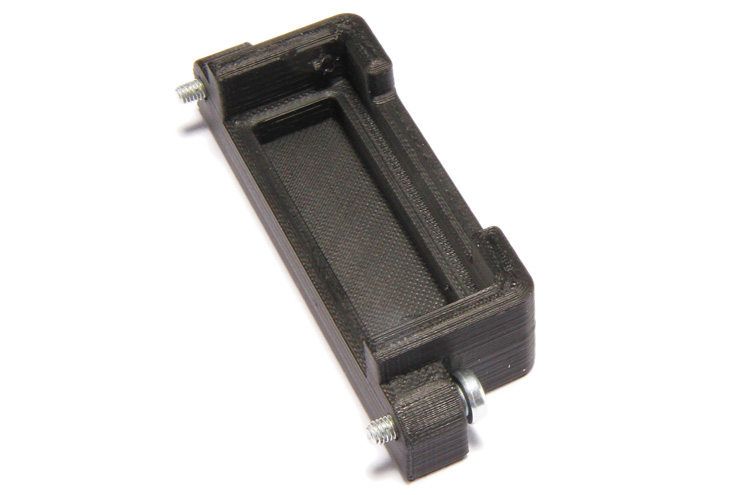

Retainer for Samtec 80 (PowerTrace Serial) Retainer for Samtec 80 (PowerTrace Serial)
LA-3509

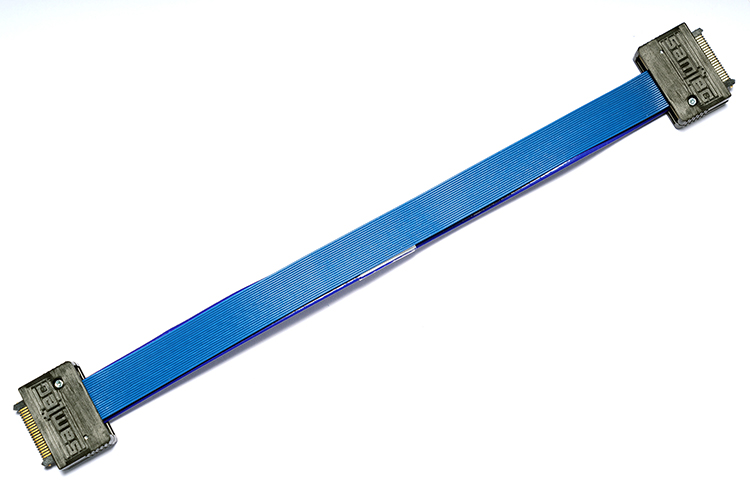

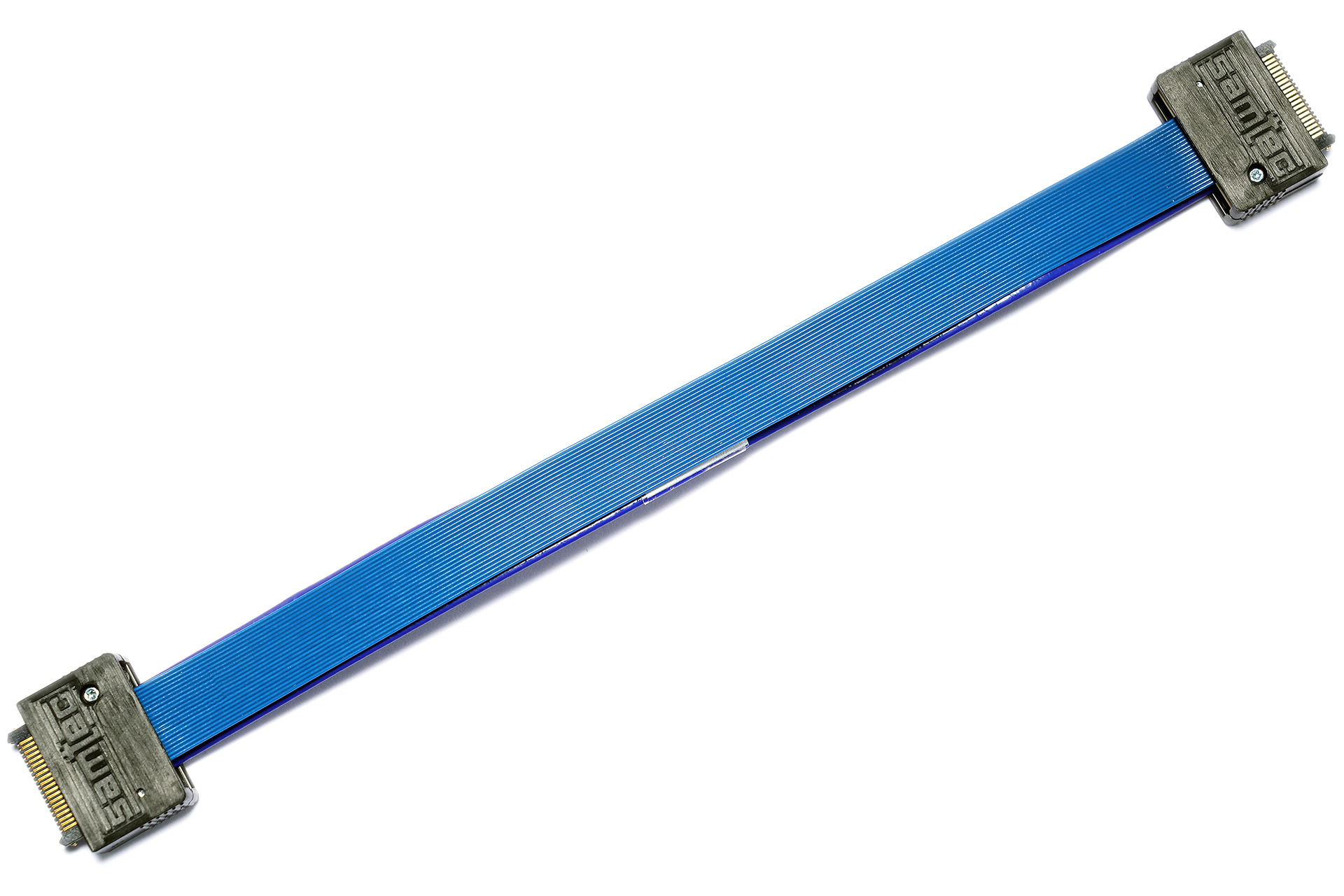

Flex Ext. for SAMTEC 40 pin ERM8-ERM8 200mm B Flex Ext. for SAMTEC 40 pin ERM8-ERM8 200mm B
LA-1212

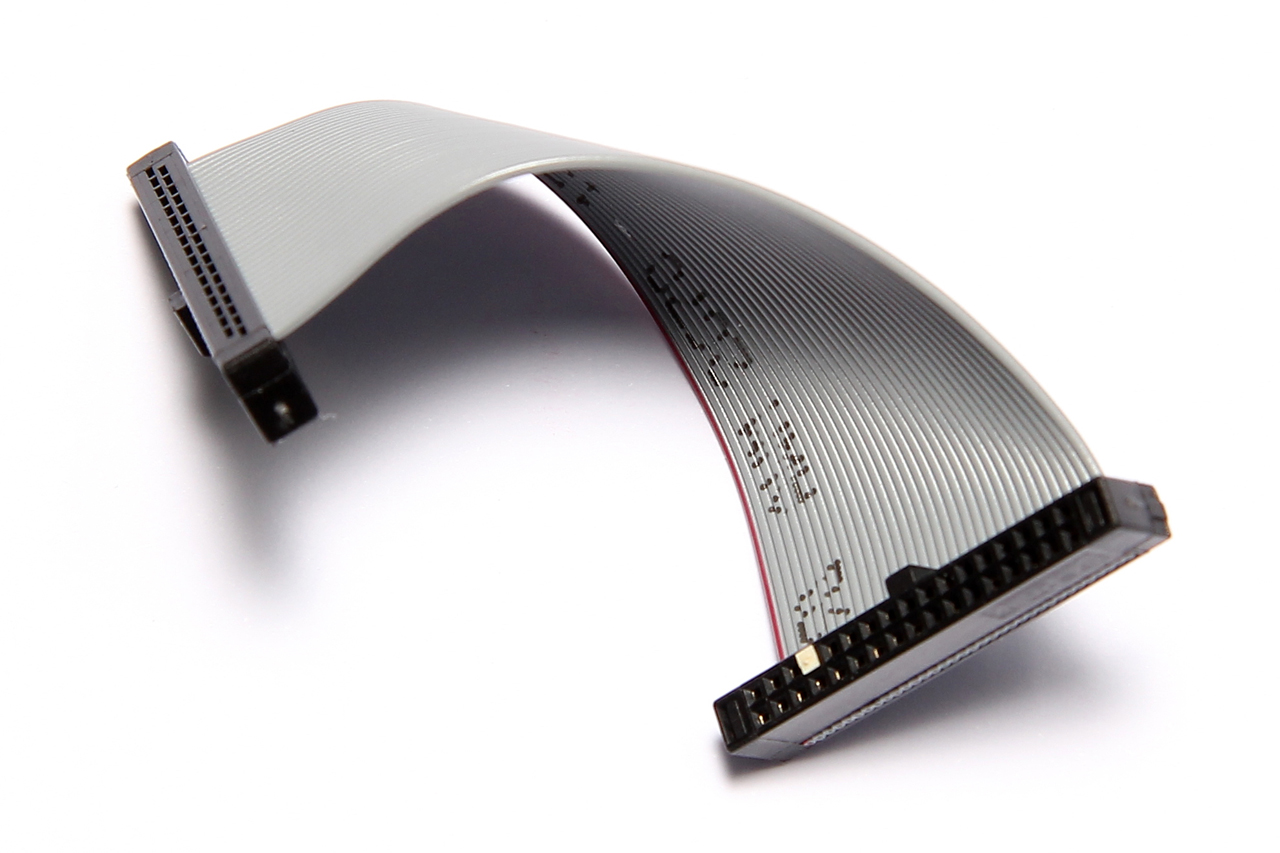

MIPI-Half-Size-Cable 34 MIPI-Half-Size-Cable 34
LA-1939

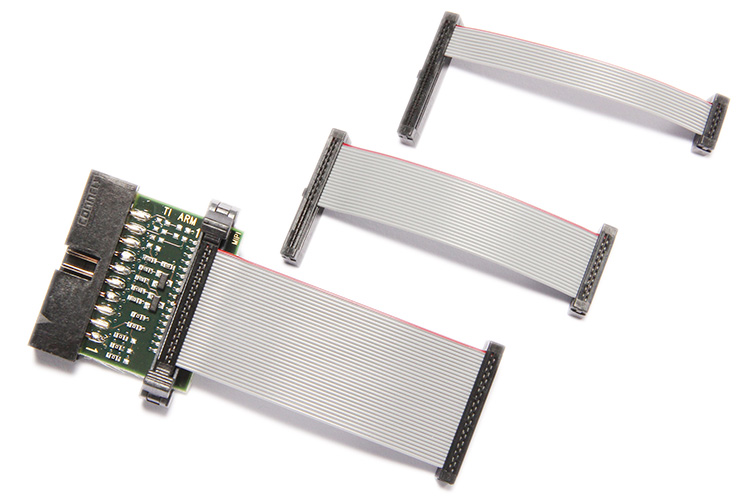

Converter IDC20A to MIPI-10/20D/34 Converter IDC20A to MIPI-10/20D/34 See pinout specifications
LA-3770
See pinout specifications

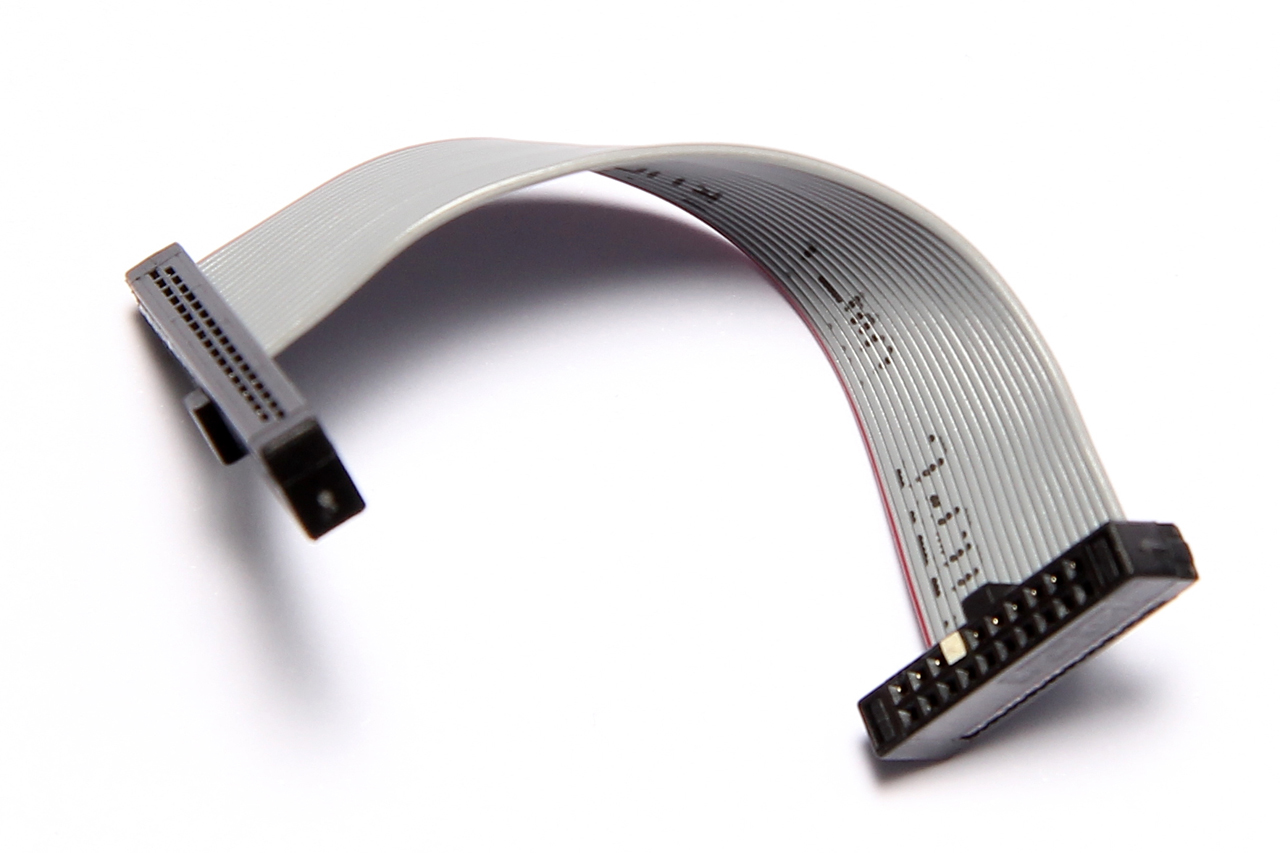

MIPI-Half-Size-Cable 34-20 MIPI-Half-Size-Cable 34-20
LA-1938

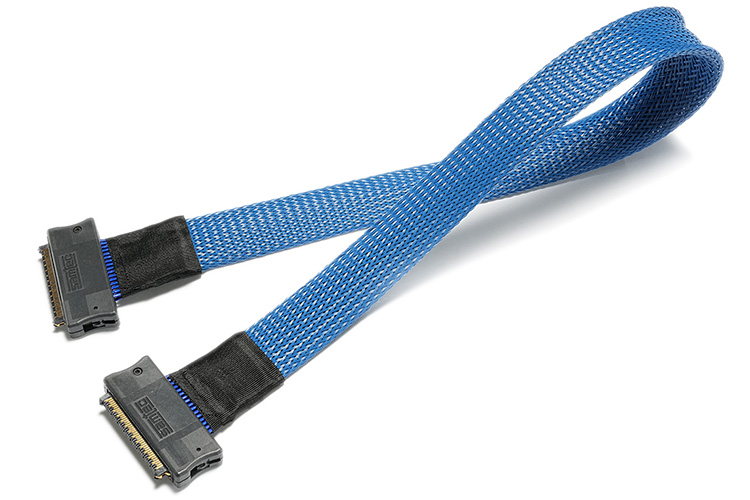

Flex Ext. for SAMTEC 80 pin ERM8-ERM8 500mm B Flex Ext. for SAMTEC 80 pin ERM8-ERM8 500mm B
LA-1211
