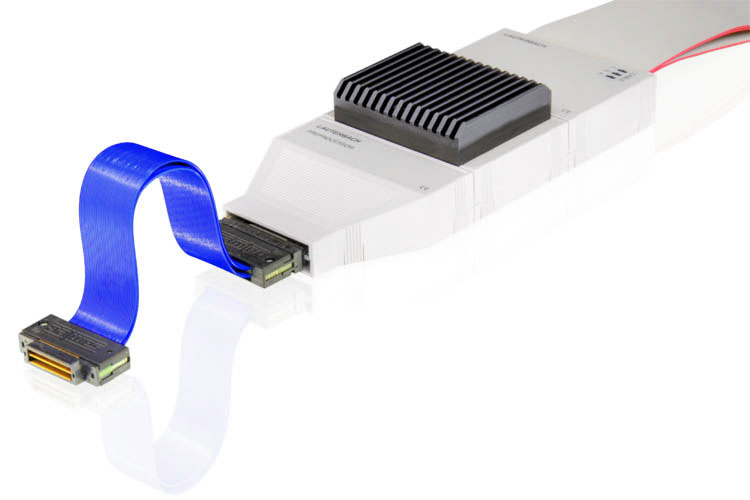

AutoFocus II MIPI Trace Probe V1
AutoFocus II MIPI Trace Probe V1
Preprocessor for recording parallel off-chip trace
from up to 40 signals from one MIPI60 connector,
Requires PowerTrace II / III, PowerTrace PX
or PowerTrace Ethernet Version 6 or higher.
Variable threshold level and termination voltage.
AUTOFOCUS self calibration technology.
Voltage: 1.2 to 3.3V.
Traceport: 1- 40 bit.
Bandwidth: Up to 600+ Mbit/s per pin.
Connector: 60 pin Samtec connector (MIPI60)
This product can only be ordered as part of a package, not separately.
This TRACE32 Product is a license carrier. It requires a
suitable, programmed TRACE32 A-license.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Included in the Following Products
Available in
This product is part of the following product bundles.
Extend the AutoFocus II MIPI Trace Probe V1
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
