AutoFocus MIPI Trace Probe for MIPS32
OVERVIEW

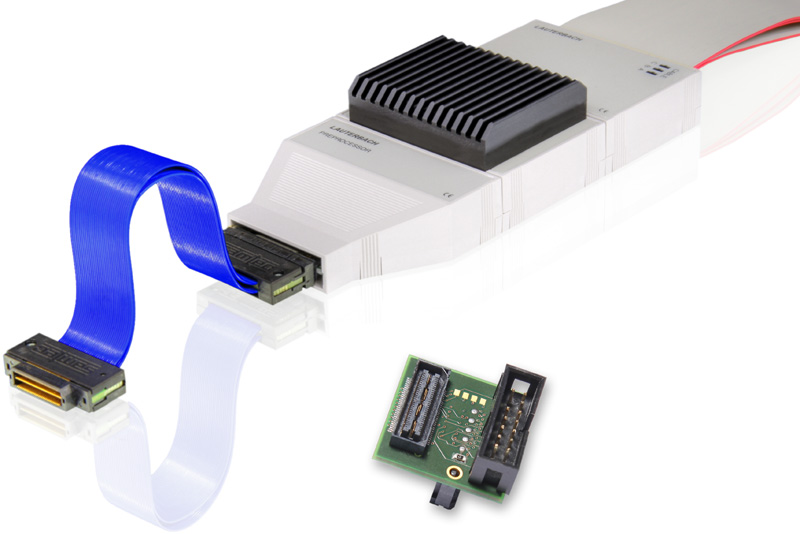

AutoFocus MIPI Trace Probe for MIPS32
Product number:
LA-3362
On request, please contact Lauterbach
Preprocessor with MIPI60 connector for recording
parallel real-time traces, ncluding a license for
decoding of traces emitted by MIPS32 cores.

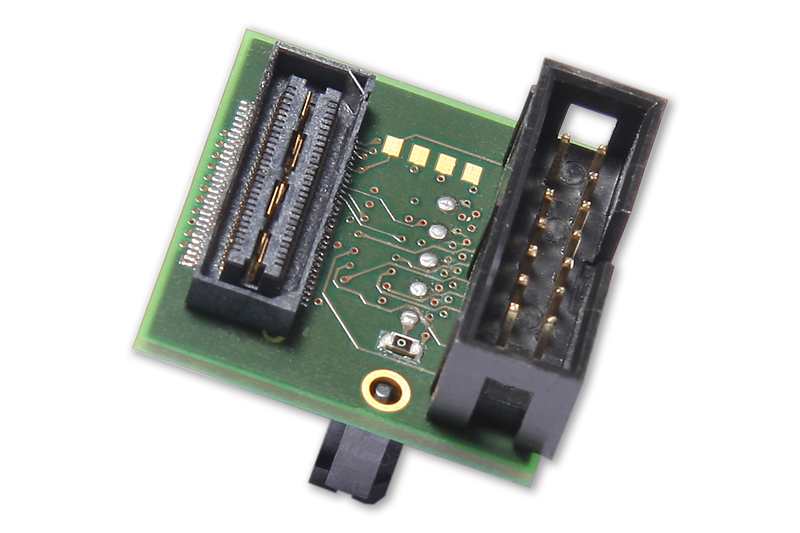

Includes connector cable and converter to
connect 14-pin MIPS debug probe.
Requires EJTAG 2.6 derivatives or higher,
Requires PowerTrace II / III, PowerTrace PX
or PowerTrace/Ethernet Version 6 or higher.
600 MBaud (300MHz clock speed, DDR).
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Supports 1.2 to 3.3V - otherwise contact support
This product has limited availability. Please contact local office.
HS-Code / Tariff-Code: 90318080
Product Details
Technical Information
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the AutoFocus MIPI Trace Probe for MIPS32
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
