Trace for C7000 via AutoFocus II MIPI (PACK)

Trace for C7000 via AutoFocus II MIPI (PACK)
OVERVIEW

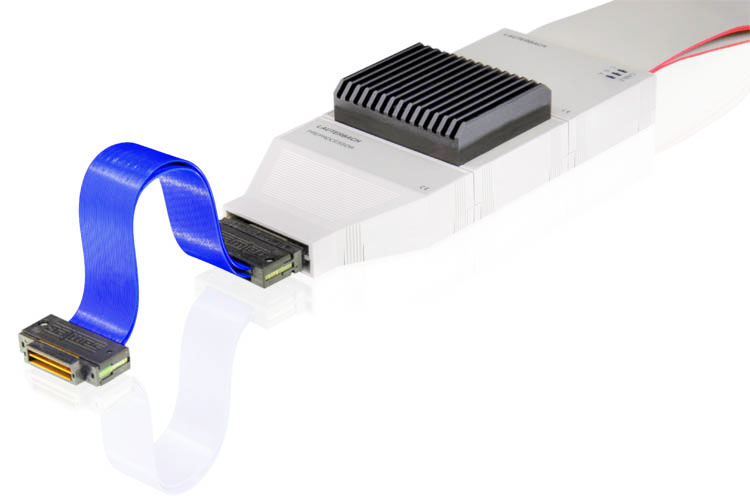

Trace for C7000 via AutoFocus II MIPI (PACK)

Product number: LA-3345

Parallel preprocessor for tracing C7000 DSPs.

Includes connector cable and software.

Voltage: 1.2 to 3.3V (contact support otherwise)
Traceport: 1-32 bit
Bandwidth: up to 600+ Mbit/s per trace signal
Connector: 60 pin Samtec connector (MIPI)
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology

Requires a PowerTrace module:
PowerTrace PX / II / III (or PowerTrace Ethernet vers 6).

Product Details

Technical Information

Technical Data

Pinout Specification

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information
AutoFocus II MIPI Hardware AutoFocus II MIPI Hardware
LA-3160

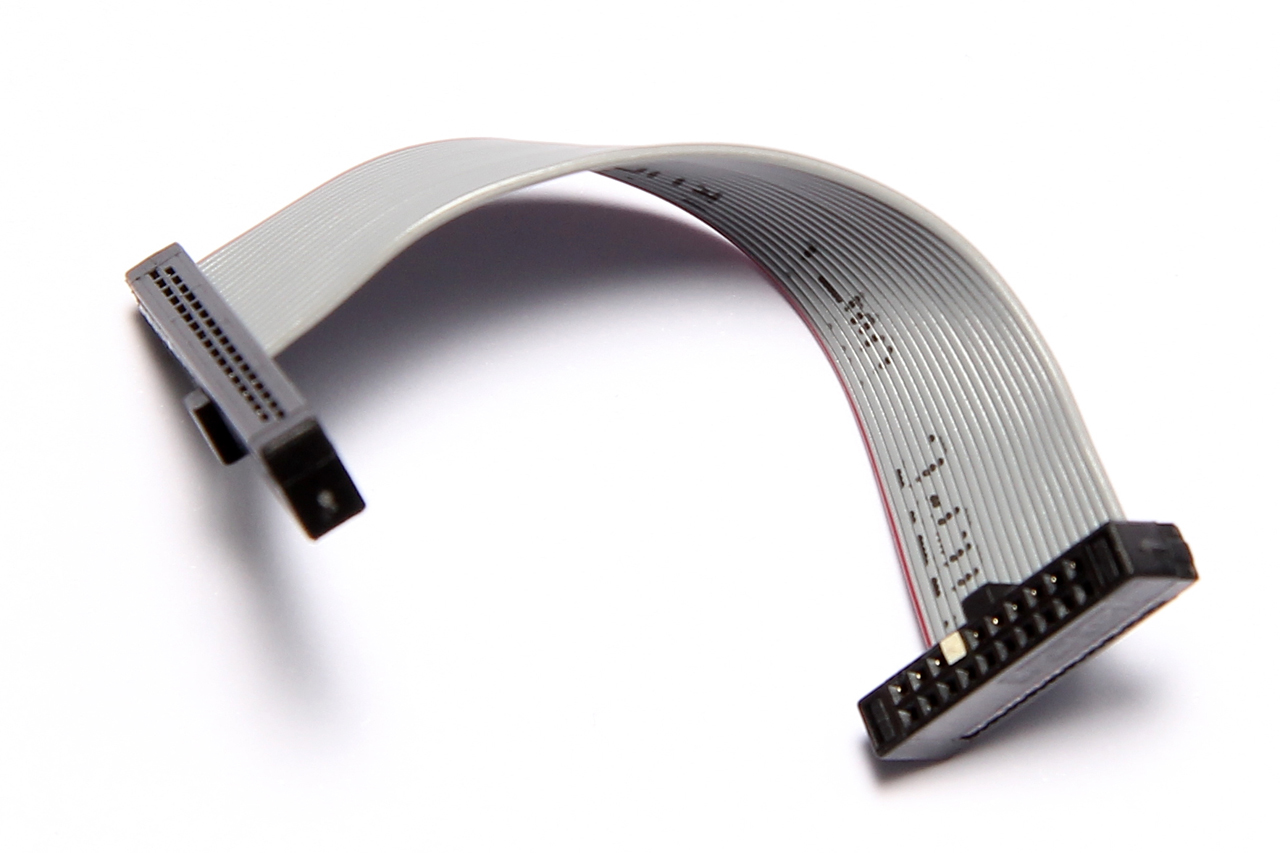

MIPI-Half-Size-Cable 34-20 MIPI-Half-Size-Cable 34-20
LA-1938

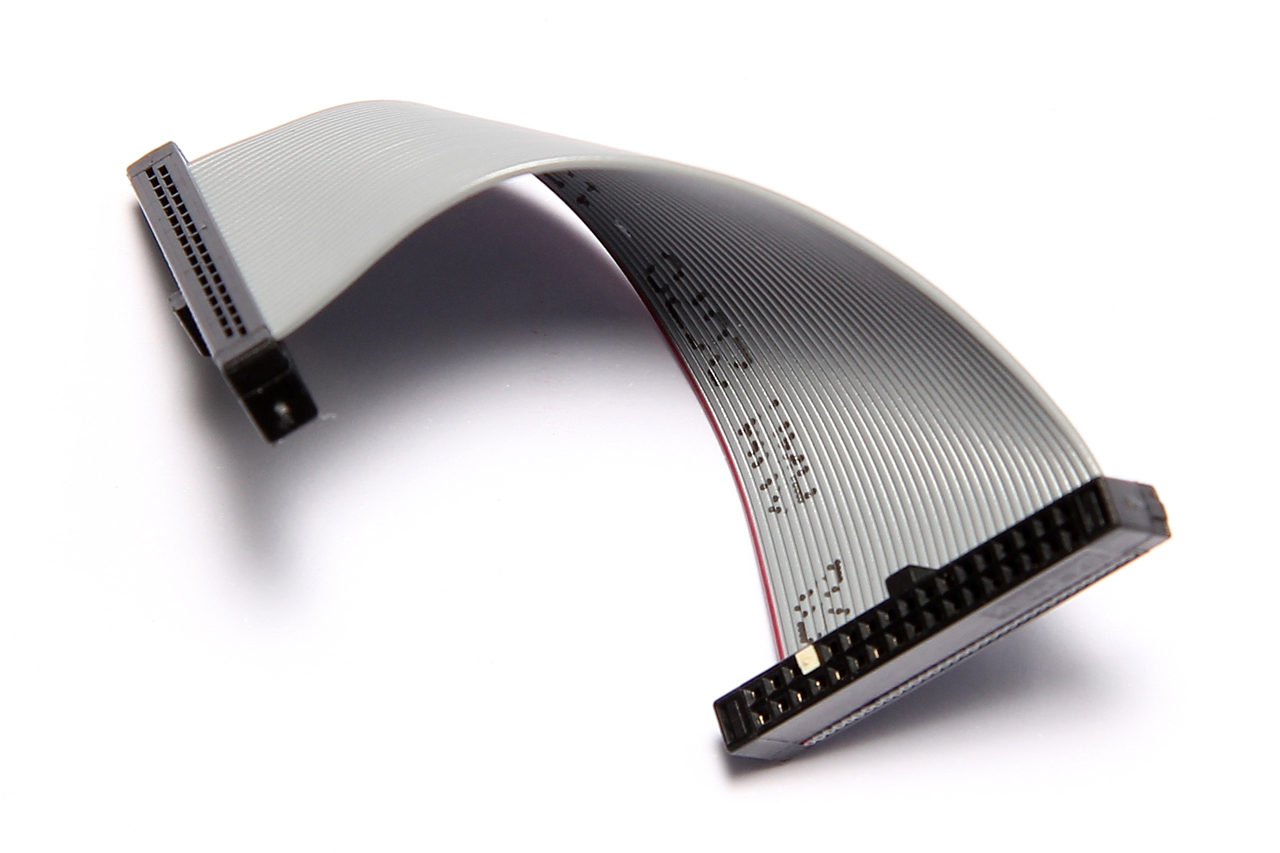

MIPI-Half-Size-Cable 34 MIPI-Half-Size-Cable 34
LA-1939
Trace License for C7000 DSP (AF-II) Trace License for C7000 DSP (AF-II)
LA-2761A

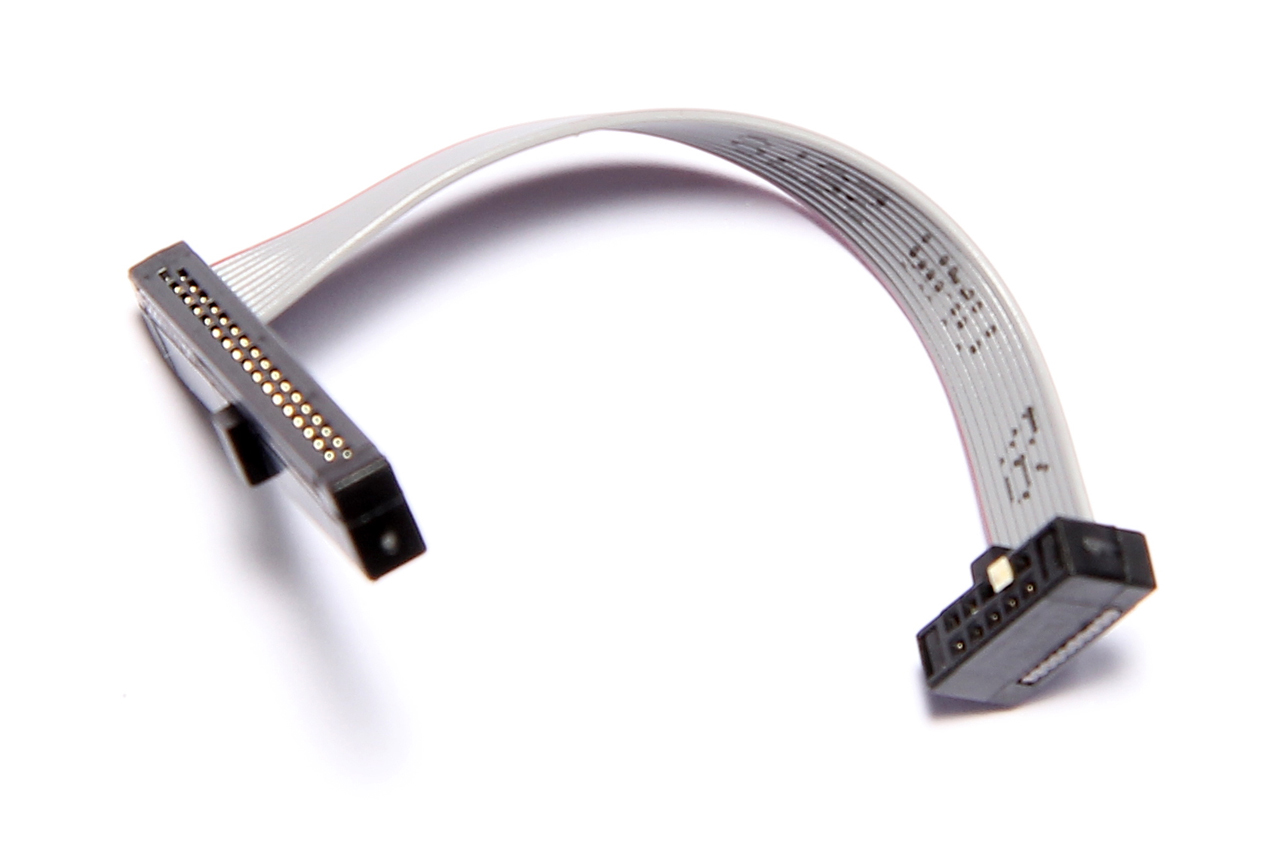

MIPI-Half-Size-Cable 34-10 MIPI-Half-Size-Cable 34-10
LA-1937

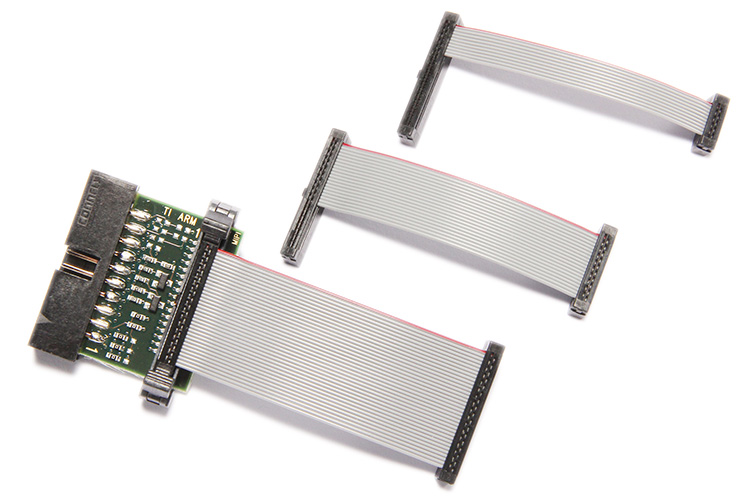

Converter IDC20A to MIPI-10/20/34 Converter IDC20A to MIPI-10/20/34 See pinout specifications
LA-3770
See pinout specifications

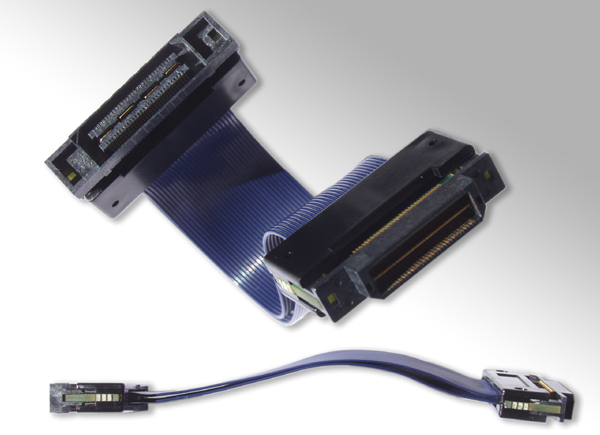

Flex Ext. for SAM 60 pin QTH-QSH series 05.00 Flex Ext. for SAM 60 pin QTH-QSH series 05.00
LA-1228
Add-ons

Extend the Trace for C7000 via AutoFocus II MIPI (PACK)

Allowed Licenses

The following licenses can be added to the product to support debug and/or tracing of other core architectures.
