Package for CombiProbe 2 TriCore DAP
OVERVIEW

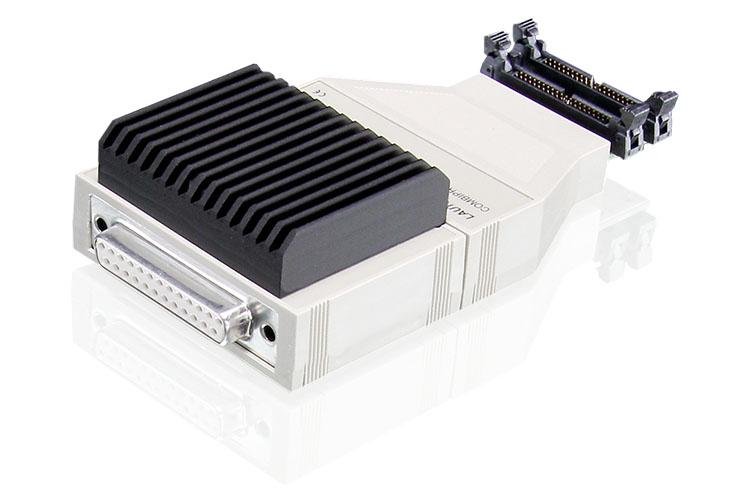

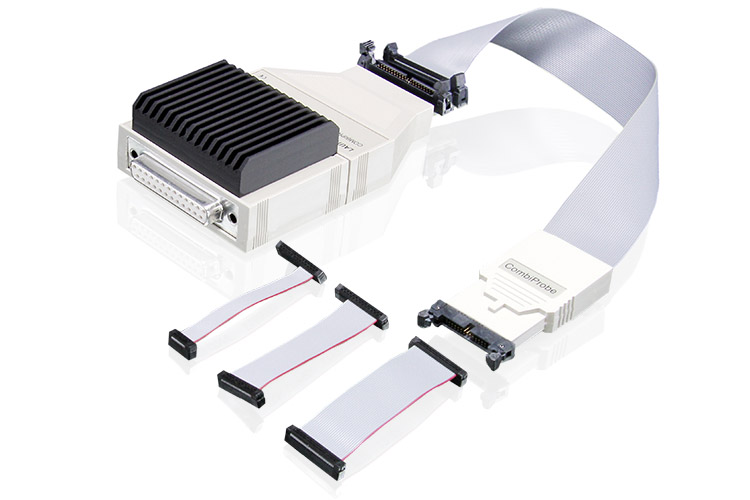

Package for CombiProbe 2 TriCore DAP
Product number:
LA-4552
Out of production
Debug cable and 512-MByte of trace memory
support for DAP Streaming
Supports
- DAP (DAP2, DAP3, DAPWide, DAP4): up to 160 MHz,
3.3 V or 5.0 V
- JTAG: 1.8-5.0 V, up to 60 MHz
- DXCPL
DAP streaming requires a DAP mode. For performance reasons,
we recommend DAPWide at 160 MHz.
26-pin Automotive Connector
requires the following A-license:
LA-7756A (Debugger for TriCore Standard Additional)
trace analysis and display requires
LA-3799X (Trace License for TriCore ED)
requires Power Debug Interface USB 3.0,
Power Debug II or PowerDebug PRO
This product is discontinued and not available for purchase.

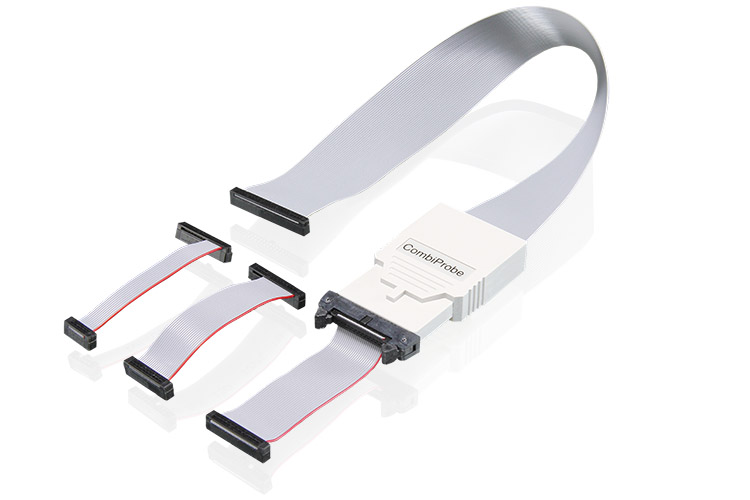

LA-3081 CombiProbe 2 for AUTO26 (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
LA-4553
Add-ons
Extend the Package for CombiProbe 2 TriCore DAP
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A Synopsys ASIP Core Debug License (Nodelocked)
- LA-3743A Armv8/v9-A/R Debug License (Nodelocked)
- LA-3776A Intel x86/x64 Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-2760A dsPIC Debug License (Nodelocked)
- LA-2751A JTAG Debugger for STRED Add.
- LA-3712A ZSP500 Debug License (Nodelocked)
- LA-7746A ARM7 Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3799X Trace License for TriCore ED
- LA-7844A Cortex-M Debug License (Nodelocked)
- LA-7742A ARM9 Debug License (Nodelocked)
- LA-7843A Armv7-A/R Debug License (Nodelocked)
- LA-3970X Trace Lic. for Intel® Processor Trace (COB)
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-2752X Trace License for STRED (Debug Cable)
- LA-2759A C7000 Debug License (Nodelocked)
- LA-7756A TriCore Debug License (Nodelocked)
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
- LA-7765A ARM11 Debug License (Nodelocked)
- LA-3741A Hexagon Debug License (Nodelocked)
