Conv. Serial Preprocessor to TriCore AGBT
OVERVIEW
Conv. Serial Preprocessor to TriCore AGBT
Product number:
LA-3829

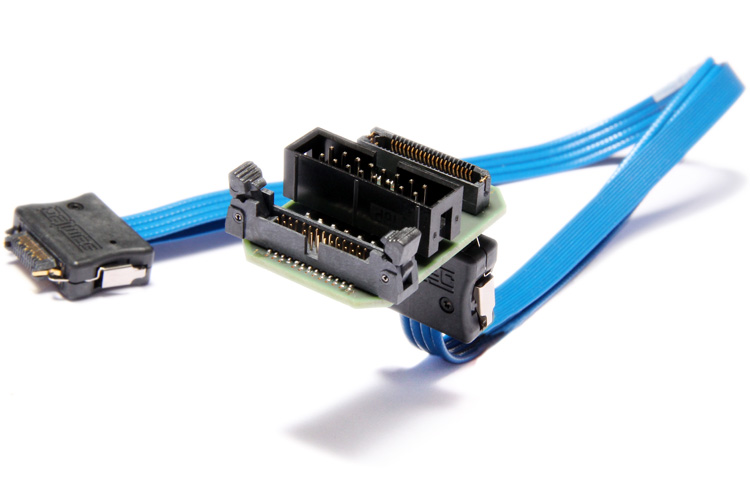

Converter to connect a TriCore AGBT debug and trace port.
Converter from a debug probe suitable for TriCore and
a Serial Preprocessor with Samtec 40 pin connector (LA-3304)
at a PowerTrace to an ERF8 22 pin (Samtec 22 pin) used for
InfineonAurora GigaBit Trace (AGBT).
This converter is compatible with both
the AUTO26 debug probe for TriCore (LA-3203) and
the legacy 16-pin OCDS debug probes for TriCore (LA-7756).

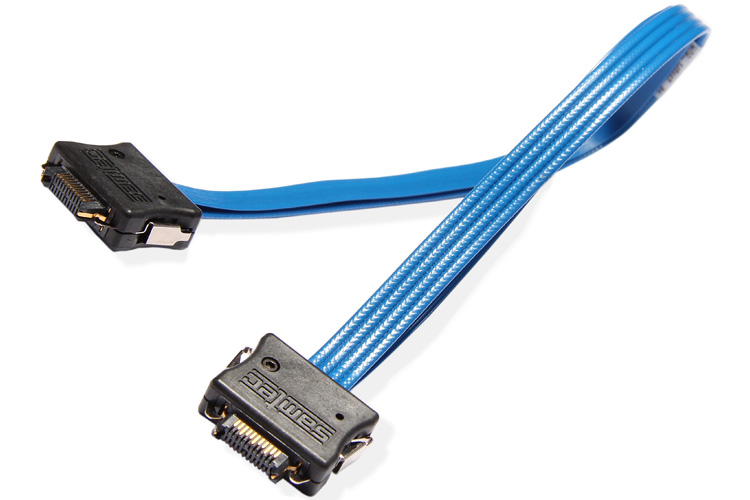

Includes Samtec 22-pin flex extension.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
