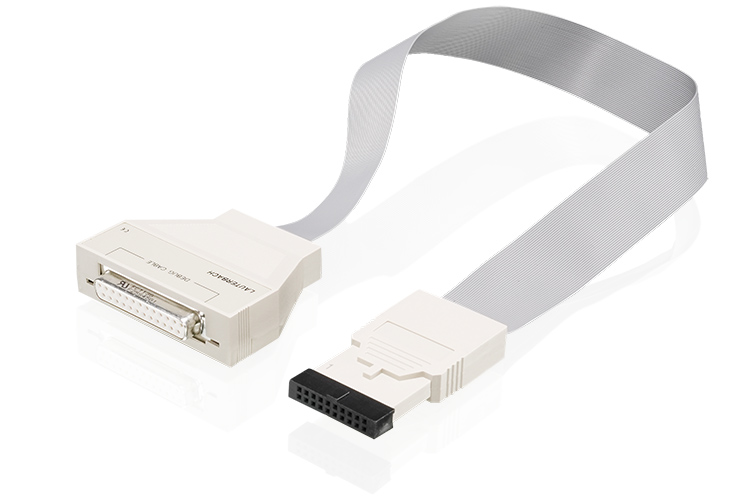

IDC20A Debug Probe with ARM9 License

IDC20A Debug Probe with ARM9 License
OVERVIEW

IDC20A Debug Probe with ARM9 License

Product number: LA-3251

IDC20A debug probe for ARM9 cores
usable with a PowerDebug base module
via JTAG, cJTAG (IEEE 1149.7), or Serial Wire Debug (SWD).

Includes licenses to debug ARM9 cores based on the ARMv4T and
ARMv5TE architecture. (This is NOT for Armv9 based Cortex-A cores.)
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.

Requires a PowerDebug base module.

cJTAG and SWD require PowerDebug from 2004 and newer.
(Works with all PowerDebug except Gen 1 (LA-7702 & LA-7704).)

Voltage range 0.4V to 5V

Product Details

Technical Information

Technical Data

Pinout Specification

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information
TRACE32-ICD Software Warranty First Year TRACE32-ICD Software Warranty First Year
LA-8017I
ARM9 Debug License (tool locked) ARM9 Debug License (tool locked)
LA-7742A
IDC20A Debug Probe V5 IDC20A Debug Probe V5 See pinout specifications
LA-3000
See pinout specifications
Add-ons

Extend the IDC20A Debug Probe with ARM9 License

Allowed Licenses

The following licenses can be added to the product to support debug and/or tracing of other core architectures.
