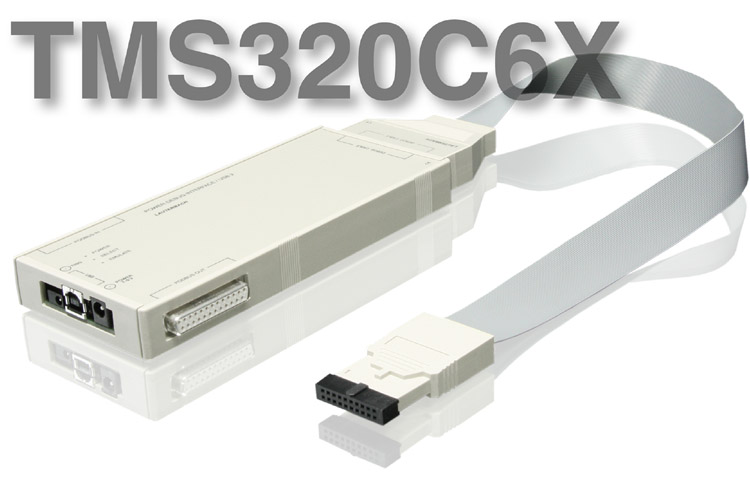

Debugger for C6000 IDC20A (PACK)
OVERVIEW
Debugger for C6000 IDC20A (PACK)
Product number:
LA-3226
Supports C6xxx.
Uses IDC20A debug cable,
which supports 5-pin standard JTAG, cJTAG (IEEE 1149.7) and
Serial Wire Debug (SWD), (0.4V - 5V)
Includes software for Windows, Linux and macOS.
Requires PowerDebug base module.
Requires LA-7748 if 14 pin TI target adapter is used.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Debugger for C6000 IDC20A (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9 Add.
- LA-7760A Debugger License for MIPS32 Add.
- LA-3750A Debug License for ARC® Add.
- LA-3730A JTAG Debug. License for MicroBlaze Additonal
- LA-7744A JTAG Debugger License for ARM10 Add.
- LA-3749A Debug License for VSPA Add.
- LA-7960X License for Multicore Debugging
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-7979X Trace License for C6000 (Cable)
- LA-3760A Debug License for Xtensa® Add.
- LA-3711A Debug License for CEVA-X Add.
- LA-7844A Debug Cortex-M (Armv6/7/8 32-bit) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7847A Debug License for C2800 Add.
- LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A Debug License for C7000 Add.
- LA-7762A Debug License for XScale Add.
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A Debug License for Hexagon Add.
- LA-3744A JTAG Debugger Lic. for APEX ADD.
