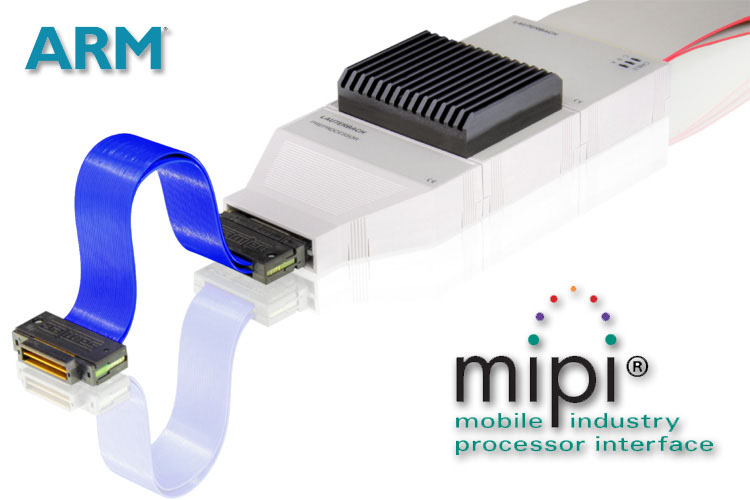

Preproc. for ARM-ETM/AUTOFOCUS 600 MIPI
Product number:
LA-7993
Out of production
Parallel preprocessor for ARM cores
Embedded Trace Macrocell (ETM),
Program Trace Macrocell (PTM)
Connector cable and software,
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Support all ETM modes
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 60 pin Samtec connector (MIPI)
supports up to 4 trace sources (mix of TPIU and STM)
Requires PowerTrace Version 6 or higher
or PowerTrace II / III
This product is discontinued and not available for purchase.
Superseded by LA-3311 Trace for Arm-ETM via AUTOFOCUS II MIPI(PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preproc. for ARM-ETM/AUTOFOCUS 600 MIPI
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
