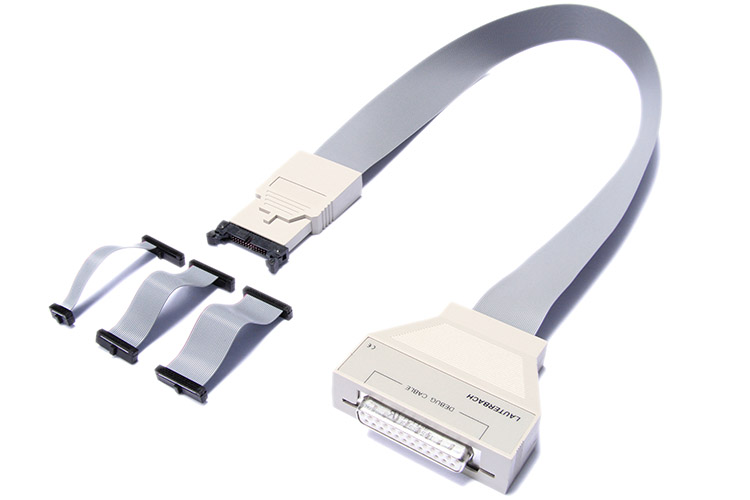

AUTO26 Debug Probe with Armv8/v9-A/R License
AUTO26 Debug Probe with Armv8/v9-A/R License
AUTO26 Debug Probe with debug license
to debug Armv8 and Armv9 based Cortex-A/R/X cores,
via JTAG, cJTAG (IEEE 1149.7), Serial Wire Debug (SWD),
or Single Signal Debug Port (SSDP).
We recommend ordering the IDC20A Debug Probe LA-3255 instead
(for Armv8 and Armv9 based SoCs) because
IDC20A supports a wider voltage range for the debug signals, and
IDC20A supports a wider range of subcore architectures.
Includes licenses to debug Armv8 and Armv9 based
Cortex-A, Cortex-R, Cortex-X and Neoverse 32/64-bit cores,
as well as GTM, SPT and IPU cores.
Multicore debugging is included.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires TRACE32 R.2022.09-SP2 or newer.
Requires PowerDebug debug base module from 2004 and newer.
(Works with all PowerDebug except Gen 1 (LA-7702 & LA-7704).)
To debug via Single Signal Debug Port (SSDP) by STMicroelectronics
you'll probably need to order an additional CAN-Box LA-3889.
Voltage range 1.8V to 5.0V.
Technical Information
Technical Data

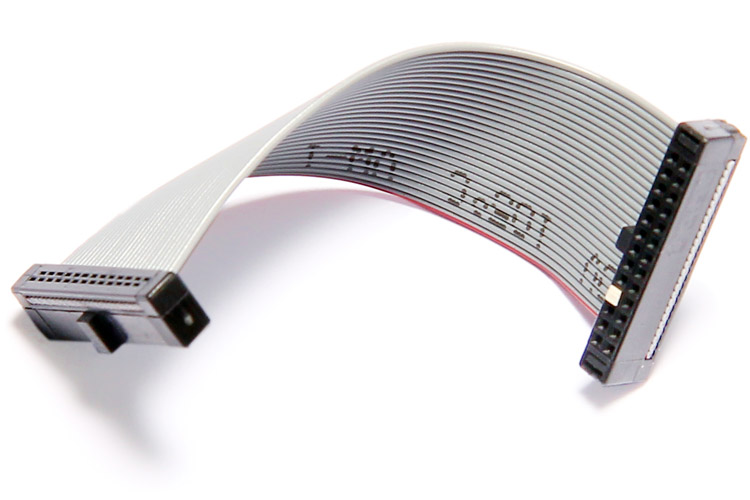

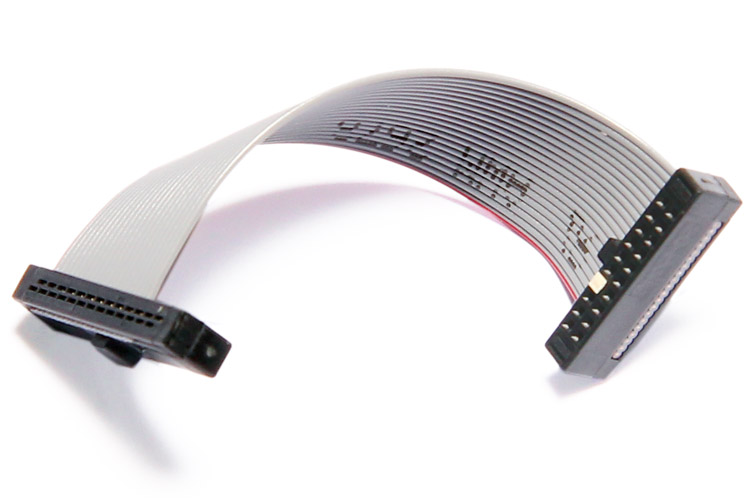

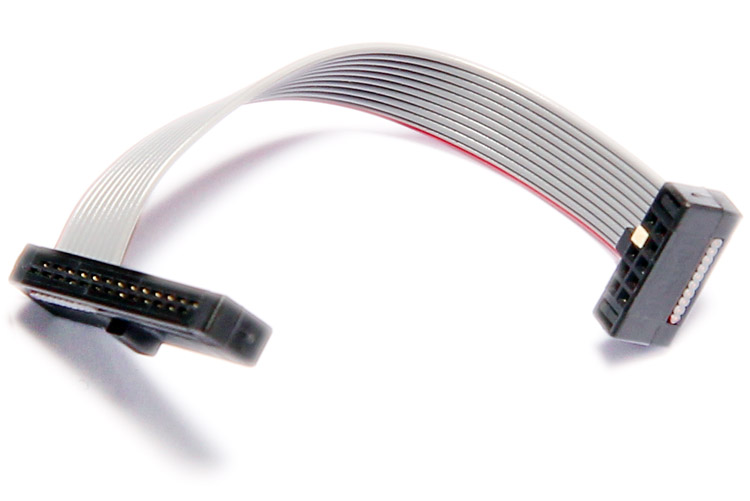

INCLUDED PRODUCTS:
Extend the AUTO26 Debug Probe with Armv8/v9-A/R License
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7844X Cortex-M Debug License (Nodelocked) Ext.
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-2760A dsPIC Debug License (Nodelocked)
- LA-3732A XC800 Debug License (Nodelocked)
- LA-3730A MicroBlaze Debug License (Nodelocked)
- LA-7838A C6000 Debug License (Nodelocked)
- LA-7843X Armv7-A/R Debug License (Nodelocked) Ext.
- LA-7753A MPC5xxx Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-3719A RH850 Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-2756A JTAG Debugger for PRU Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-2759A C7000 Debug License (Nodelocked)
- LA-7756A TriCore Debug License (Nodelocked)
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
- LA-2900X License for PIL Simulation (Cable)
