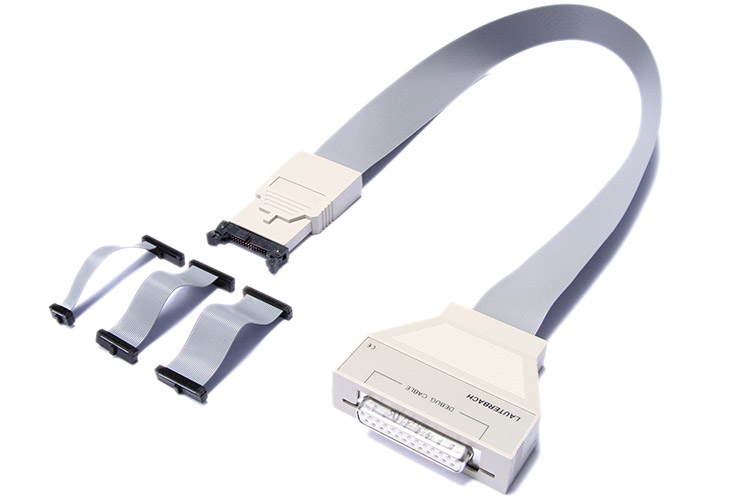

AUTO26 Debug Probe V3
OVERVIEW
AUTO26 Debug Probe V3
Product number:
LA-3011
This TRACE32 product is a license carrier. It requires a
suitable programmed TRACE32 A-license.
Requires any PowerDebug with USB 2/USB 3/Ethernet and newer.
(Not supported with LA-7702 and LA-7704)
Requires TRACE32 R.2022.09-SP2 or newer.
DAP streaming supported with TRACE32 build 160619 or higher
(R.2023.09) in conjunction with PowerDebug X51, X50, E40, or PRO.
Voltage range 1.8V to 5.0V.
Product Details
Technical Information
Technical Data

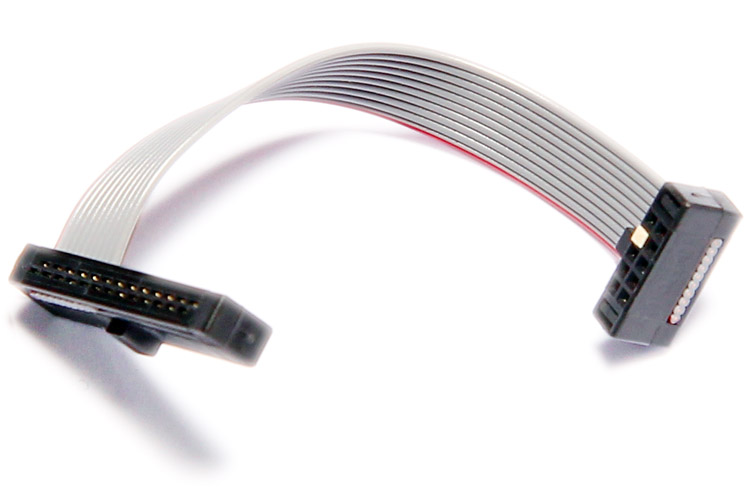

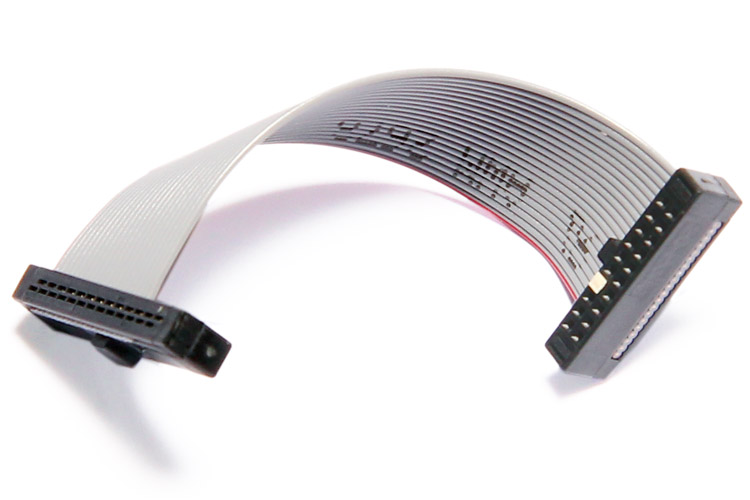

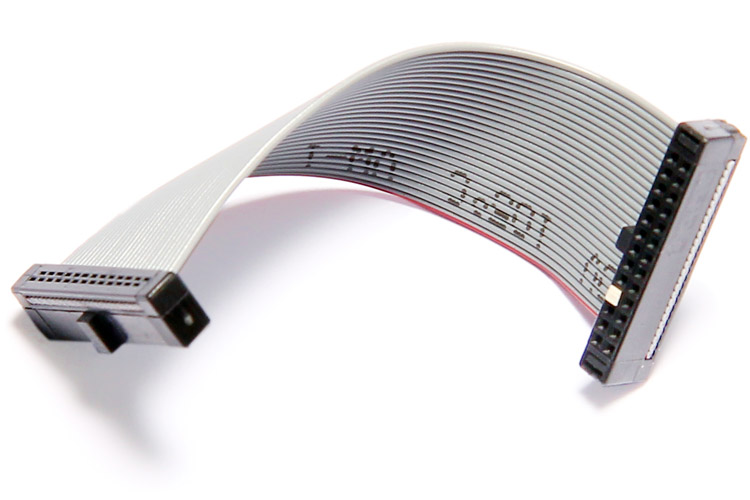

INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the AUTO26 Debug Probe V3
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Armv8/v9-A/R Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-2760A dsPIC Debug License (Nodelocked)
- LA-3732A XC800 Debug License (Nodelocked)
- LA-3730A MicroBlaze Debug License (Nodelocked)
- LA-7838A C6000 Debug License (Nodelocked)
- LA-7753A MPC5xxx Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-3719A RH850 Debug License (Nodelocked)
- LA-7844A Cortex-M Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-7843A Armv7-A/R Debug License (Nodelocked)
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A C7000 Debug License (Nodelocked)
- LA-7756A TriCore Debug License (Nodelocked)
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
Available Converters
- LA-3849 Conv. AUTO26 to JTAG16-TriCore
- LA-3889 CAN-Box
- LA-3598 Converter MIPI10 to USB-C (DAM, D1)
- LA-2748 Converter AUTO26 to IDC20A/IDC20A-ETK/TI-14
- LA-3874 Conv. AUTO26 to MICTOR38 MPC5xxx
- LA-2700 Conv. AUTO26 to JTAG14 RH850
- LA-2745 Conv. AUTO-26 to 10-pin ECU14
- LA-2773 Conv. AUTO26 to MICROCHIP-8
- LA-3873 Conv. AUTO26 to JTAG14 OnCE (MPC5xxx)
- LA-3597 Converter AUTO20 to AURIX-HSTCU
- LA-3843 Conv. AUTO-26/OnCE14-PPC/JTAG16-TC to ECU14
- LA-3875 Conv. AUTO26 to Samtec50 MPC5xxx
