License for debugging the Xtensa architecture via Tessent Embedded Analytics (former UltraSoC) USB Debug for Windows and Linux requires TRACE32 software R.2022.02 The TRACE32 software must be specially adapted from Lauterbach for each chip. Please contact the Lauterbach development departement before ordering. floating license via RLM (Reprise License Manager) Please add the RLM HostID of the license server to your order (please see our FAQ)

License to use TRACE32 PowerView Front-End TRACE32 PowerView Front-End can be used to connect to third-party solutions such as: - virtual target/simulators - target server such as GDB For details please refer to tool chain support list for your core architecture supports Arm based architectures floating license via RLM (Reprise License Manager) Please add the RLM HostID of the license server to your order (please see our FAQ)

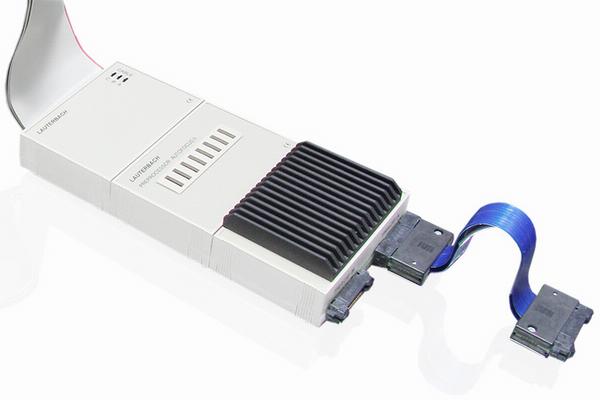

Parallel preprocessor for real-time tracing of C6000 cores via a MIPI60 connector. Includes connector cable and software. Voltage: 1.2 to 3.3V (contact support otherwise) Traceport: 1-32 bit Bandwidth: up to 600+ Mbit/s per trace signal Connector: 60 pin Samtec connector (MIPI) Variable threshold level and termination voltage, AUTOFOCUS self calibration technology Requires a PowerTrace module: PowerTrace PX / II / III (or PowerTrace Ethernet vers 6).

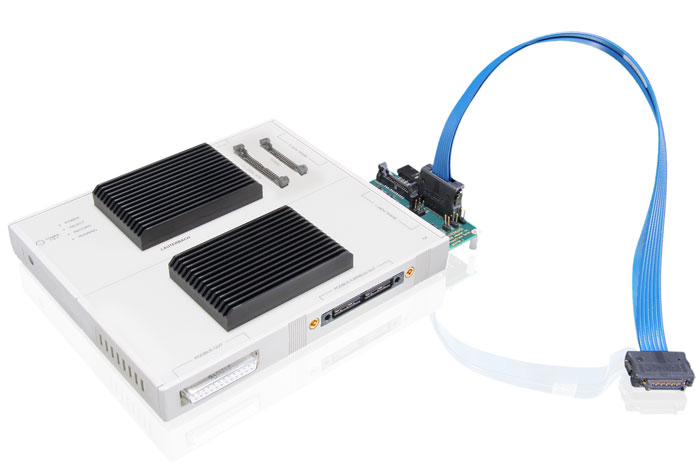

Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for RH850 Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Includes converter and flex-extension for Samtec34 target connector. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.

License for debugging the Cortex-M architecture (Armv6/7/8 32-bit) via Tessent Embedded Analytics (former UltraSoC) USB Debug for Windows and Linux requires TRACE32 software R.2020.09 The TRACE32 software must be specially adapted from Lauterbach for each chip. Please contact the Lauterbach development departement before ordering. floating license via RLM (Reprise License Manager) Please add the RLM HostID of the license server to your order (please see our FAQ)

License for debugging the RISC-V 64-bit architecture via Tessent Embedded Analytics (former UltraSoC) USB Debug for Windows and Linux requires TRACE32 software R.2020.09 The TRACE32 software must be specially adapted from Lauterbach for each chip. Please contact the Lauterbach development departement before ordering. floating license via RLM (Reprise License Manager) Please add the RLM HostID of the license server to your order (please see our FAQ)

Parallel preprocessor for ARM/Cortex Embedded Trace Macrocell (ETM), Program Trace Macrocell (PTM) Connector cable and software, Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Support all ETM modes, with 2 MICTOR connectors, Voltage: 1.2 to 3.3V - else contact support Traceport: 1-32bit Bandwidth: 9.6 Gbps (300MHz clock speed, DDR) Connector: 2x38 pin mictor connector Requires PowerTrace II / III, PowerTrace PX or PowerTrace/Ethernet Version 6 or higher

Parallel Preprocessor for ARC Real-Time Trace (ARC RTT) supporting all RTT modes (MDO4, MDO8, MDO16, 2xMDO8, CoreSight) Includes connector cable and software. Voltage: 1.2 to 3.3V (contact support otherwise) Traceport: 1-32 bit Bandwidth: up to 600+ Mbit/s per trace signal Connector: Two 38 pin mictor connectors Variable threshold level and termination voltage, AUTOFOCUS self calibration technology Requires a PowerTrace module: PowerTrace PX / II / III (or PowerTrace Ethernet vers 6).

License for debugging the Cortex-A V7 architecture (32-bit) via Tessent Embedded Analytics (former UltraSoC) USB Debug for Windows and Linux requires TRACE32 software R.2020.09 The TRACE32 software must be specially adapted from Lauterbach for each chip. Please contact the Lauterbach development departement before ordering. floating license via RLM (Reprise License Manager) Please add the RLM HostID of the license server to your order (please see our FAQ)

Parallel preprocessor for ARM cores Embedded Trace Macrocell (ETM), Program Trace Macrocell (PTM) Connector cable and software, Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Support all ETM modes Voltage: 1.2 to 3.3V - else contact support Traceport: 1-32bit Bandwidth: 9.6 Gbps (300MHz clock speed, DDR) Connector: 60 pin Samtec connector (MIPI) supports up to 4 trace sources (mix of TPIU and STM) Requires PowerTrace Version 6 or higher or PowerTrace II / III
