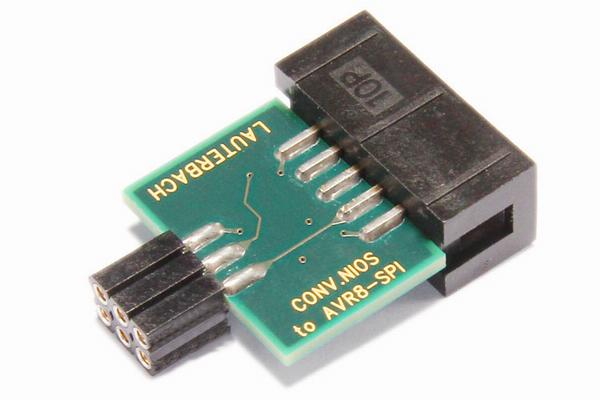

Converter AVR8 10 Pin JTAG to 6 Pin SPI IN PRODUCT CATALOG
LA-2732

supports the SPI Programming Interface of Atmel AVR8 Chips

Converter IDC20A to MIPS-14 IN PRODUCT CATALOG
LA-2720

Converter to connect an IDC20A Debug Cable to a MIPS-14 connector on the target Former name: Converter ARM-20 to MIPS-14

Converter MIPS-14 to ARM-20 IN PRODUCT CATALOG
LA-2721

Converter to connect a MIPS Debug Cable to an ARM-20 connector on the target

Conv. MIPI60-Cv2 to MIPI60-C IN PRODUCT CATALOG
LA-2725

Converter from Intel MIPI60-Cv2 to Intel MIPI60-C pin-out on target

Conv. Intel MIPI60-Cv2 to ARM MIPI34 IN PRODUCT CATALOG
LA-2727

Converter from Intel MIPI60-Cv2 to MIPI34 pin-out on target Converts termination scheme Intel (50 Ohm parallel termination at receiver) to termination scheme ARM (50 Ohm series termination at sender) Support for JTAG/SWD Maps Intel specific debug signals to MIPI34 pins. Default mapping: Intel PREQ -> DBGREQ (pin 18 on MIPI34) Intel PRDY -> DBGACK (pin 20 on MIPI34) Intel HOOK6 (PMODE) -> RTCK (pin 12 on MIPI34) Intel HOOK0 (PowerGood) -> BCE (pin 14 on MIPI34) Intel HOOK7 (ResetOut) -> RESET (pin 10 on MIPI34) TVREF (trace reference voltage) == DVREF (debug reference voltage) For other possible options, please contact Lauterbach.

Conv. Bundle Intel MIPI60-Cv2 to ARM 20 IN PRODUCT CATALOG
LA-2728

Combination of two converters to adapt from Intel MIPI60-Cv2 to MIPI20 pin-out on target

Converter MIPI-20T to IDC20A IN PRODUCT CATALOG
LA-2730

Converter from a MIPI20T to an IDC20A debug connector, designed to connect the debug signals of a MIPI20T-HS Whisker (from a CombiProbe or MicroTrace) to a target with IDC20A connector. Can be used for debugging if an IDC20A connector is mounted on the target, which is used on many targets with Arm SoCs or Arm-compatible SoCs. There is a pin header to optionally receive trace signals from elsewhere.

Converter ARM20 to STM8 4 Pin Connector IN PRODUCT CATALOG
LA-2731

supports STM8 4 pin connector

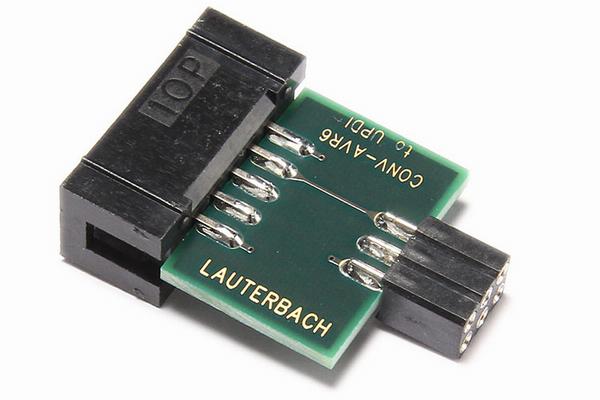

Converter AVR8 10 Pin JTAG to 6 Pin UPDI IN PRODUCT CATALOG
LA-2733

supports the 6-pin UPDI Interface of Atmel AVR8 Chips

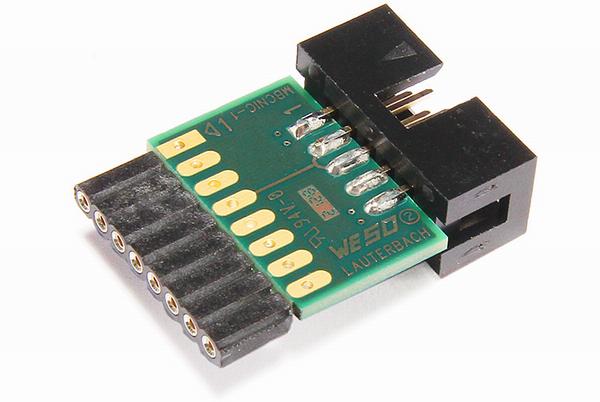

Converter AVR8 10 Pin JTAG to 8 Pin UPDI IN PRODUCT CATALOG
LA-2736

supports the 8 Pin UPDI Interface of Atmel AVR8 Chips
