Search results for "la-2732"

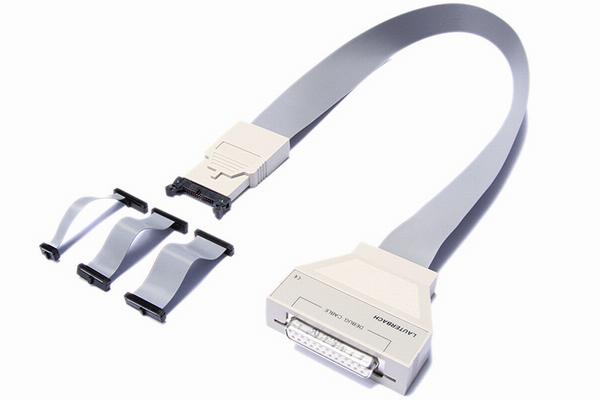

debug cable with license bundle includes software for Windows, Linux and macOS requires Power Debug Interface USB 2.0/USB 3.0, Power Debug Ethernet, Power Trace Ethernet, Power Debug II, PowerDebug PRO, PowerDebug E40 or PowerDebug X50 Automotive Debug Cable 26-pin voltage range 0.9V to 5.5V

supports dsPIC33C Debugging of dual-core dsPIC requires LA-2762 Package for CombiProbe 2 dsPIC Dual Core Adaptation to MICROCHIP-8 requires LA-2773 Conv. AUTO26 to MICROCHIP-8 LA-1949 Automotive HALF-SIZE-CABLE 26-26 only suitable for debug cables newer than 07/2018 please add the serial number of the existing debug cable to your order includes software for Windows, Linux and macOS

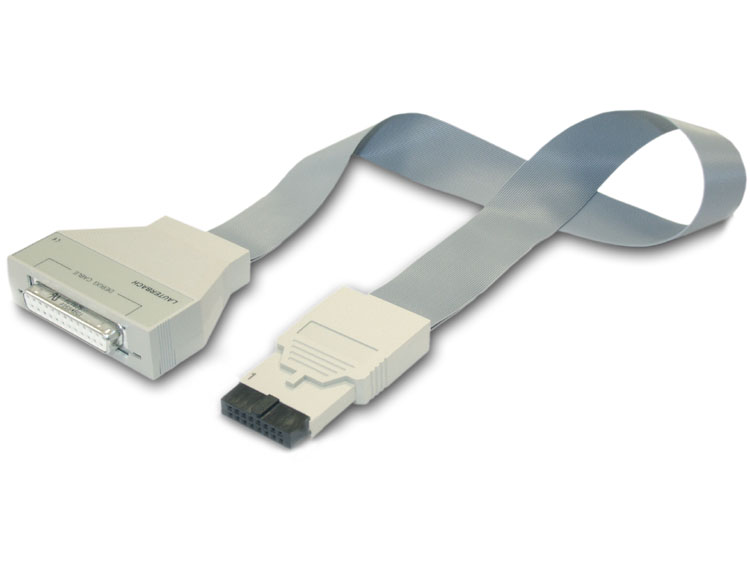

supports XC800 includes software for Windows, Linux and MacOSX requires Power Debug Module debug cable with 16 pin connector

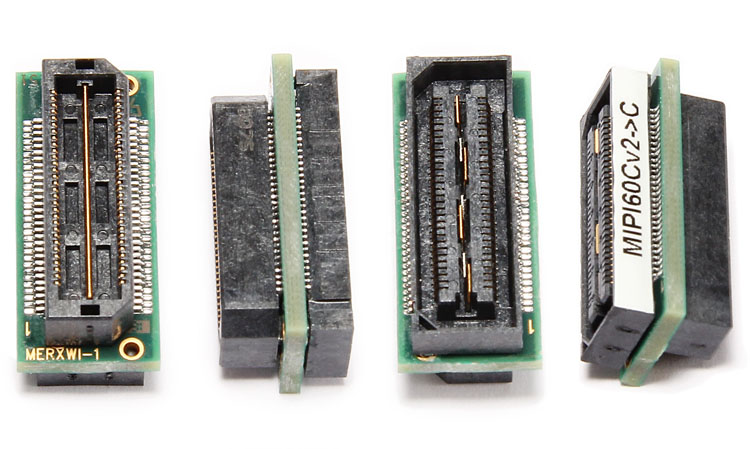

Converter from Intel MIPI60-Cv2 to Intel MIPI60-C pin-out on target

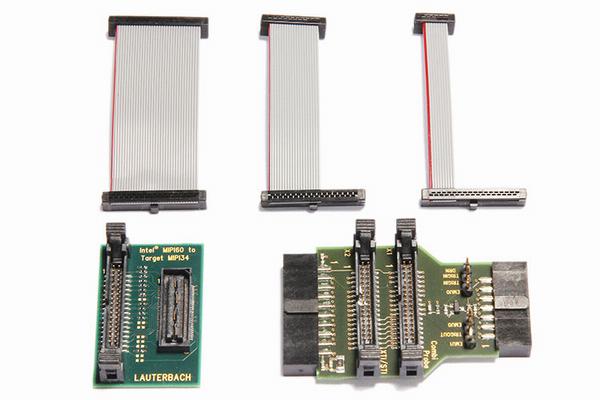

Converter from Intel MIPI60-Cv2 to MIPI34 pin-out on target Converts termination scheme Intel (50 Ohm parallel termination at receiver) to termination scheme ARM (50 Ohm series termination at sender) Support for JTAG/SWD Maps Intel specific debug signals to MIPI34 pins. Default mapping: Intel PREQ -> DBGREQ (pin 18 on MIPI34) Intel PRDY -> DBGACK (pin 20 on MIPI34) Intel HOOK6 (PMODE) -> RTCK (pin 12 on MIPI34) Intel HOOK0 (PowerGood) -> BCE (pin 14 on MIPI34) Intel HOOK7 (ResetOut) -> RESET (pin 10 on MIPI34) TVREF (trace reference voltage) == DVREF (debug reference voltage) For other possible options, please contact Lauterbach.

Converter to connect a MIPS Debug Cable to an ARM-20 connector on the target

Combination of two converters to adapt from Intel MIPI60-Cv2 to MIPI20 pin-out on target

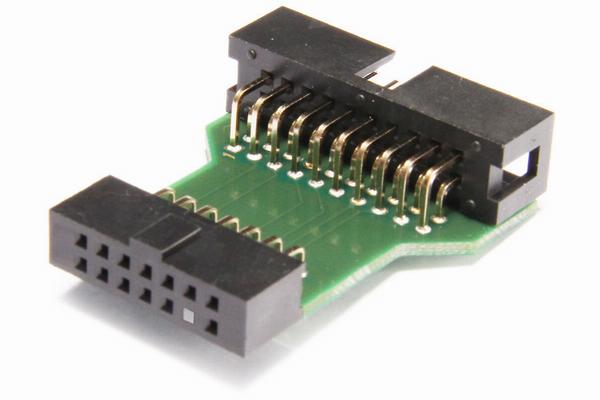

Converter to connect an IDC20A Debug Cable to a MIPS-14 connector on the target Former name: Converter ARM-20 to MIPS-14

Converter from 14 pin debug connector for RH850 to AUTO26 use with LA-3719 (Debugger for RH850) to connect to targets designed for LA-2709 Debugger for RH850/V850 Automotive PRO LA-3205 Debugger for RH850/V850 AUTO26 (PACK) LA-3739 Debugger for RH850 Automotive

Converts 40pin HSSTP to 60pin Samtec QTH
