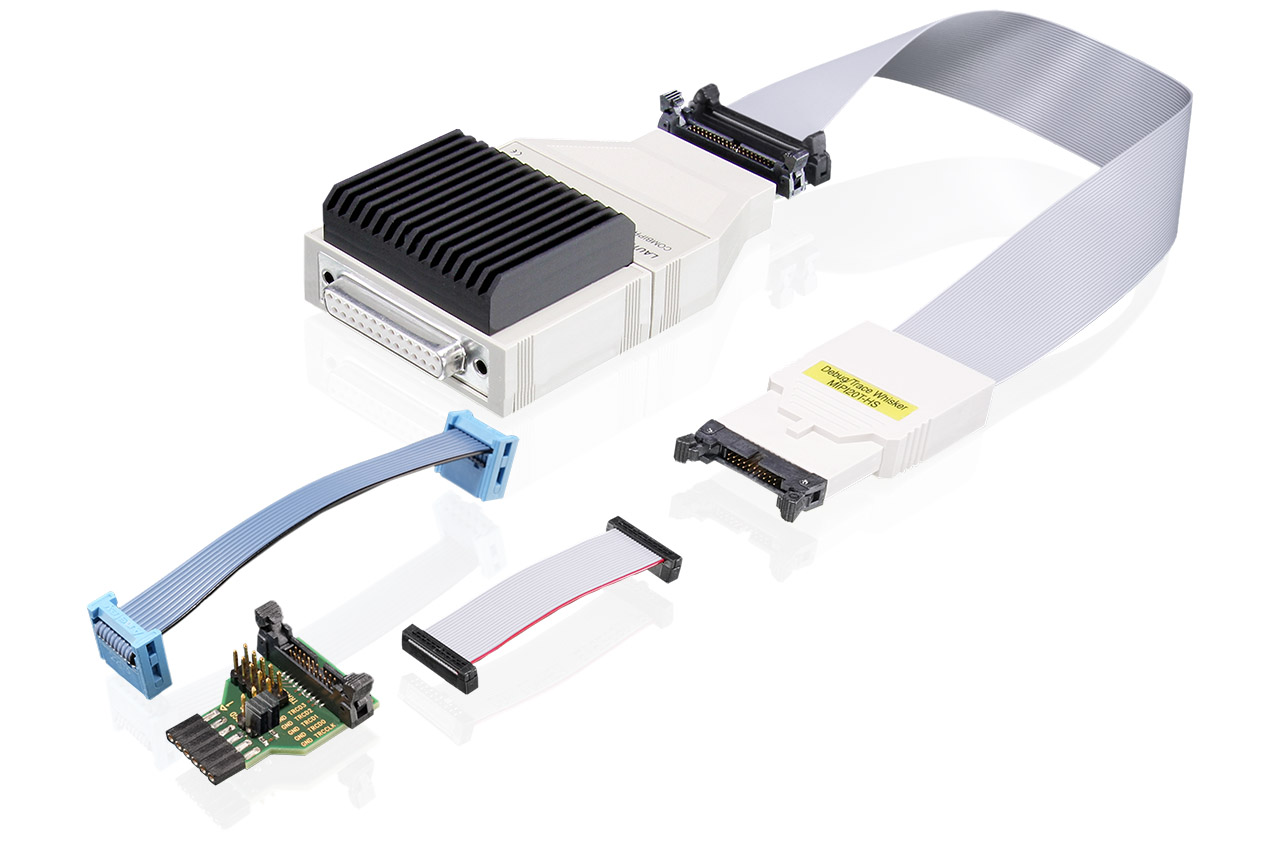

MIPI20T-HS CombiProbe with dsPIC License
MIPI20T-HS CombiProbe with dsPIC License

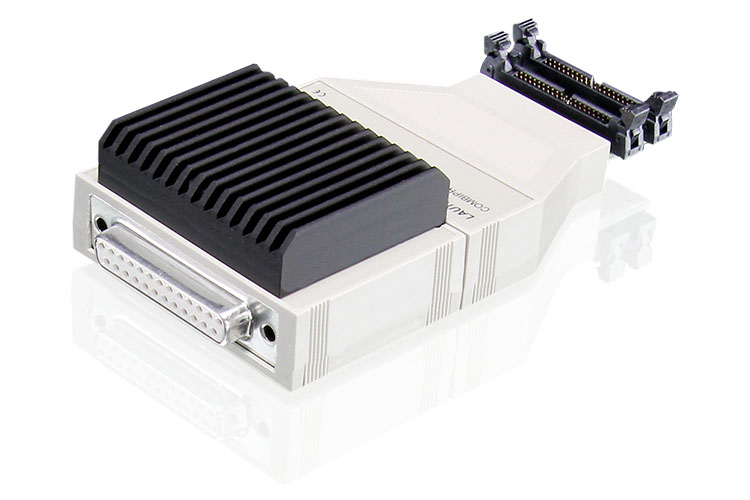

CombiProbe 2 with MIPI20T-HS Whisker, PIC-SIL-6 adapter and
a license to debug dsPIC controller from Microchip.
Supports dsPIC33A, dsPIC33C, and dsPIC33E.
Includes the debug license for dsPIC cores.
Includes license for deocding traces emitted by dsPIC cores.

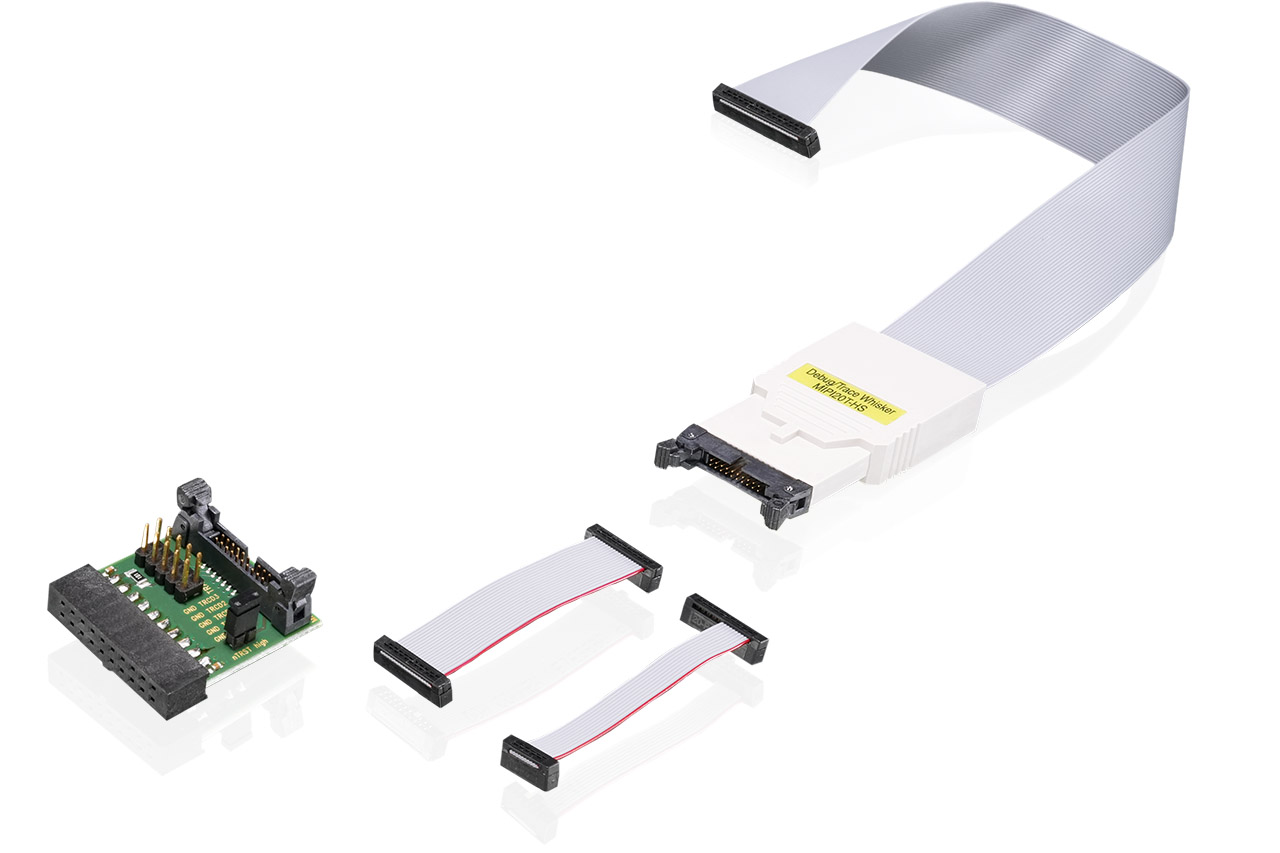

Includes CombiProbe with one MPI20T-HS Whisker.

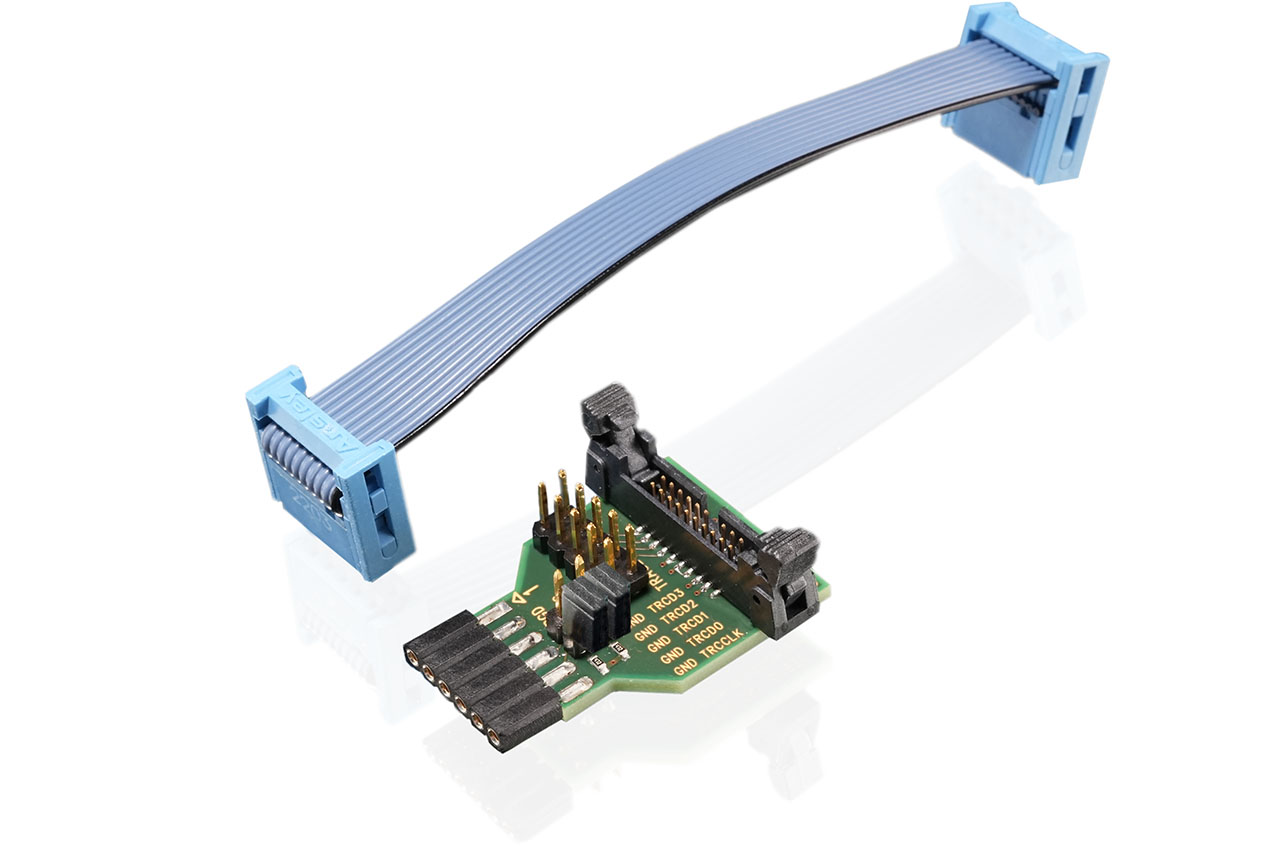

Includes converter to Micochip PIC-SIL-6 header.
Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.
Requires Power Debug Interface USB 3.0, PowerDebug II,
PowerDebug PRO, PowerDebug X-Series, PowerDebug E-Series.
For dsPIC dual-core controller extend your CombiProbe
with a second MIPI20T-HS Whisker (LA-4513), an extra
PIC-SIL-6 converter (LA-2778), and a multicore license (LA-7960X).
Voltage Range: 1.2V...5.0V.
Target Connector: MIPI20T, PIC-SIL-6
Trace Memory: 512 MByte.
Maximum Trace Port Width: 4 pins.
Maximum Trace Bandwidth: 400 MBit/s per trace pin.
Technical Information
INCLUDED PRODUCTS:
Extend the MIPI20T-HS CombiProbe with dsPIC License
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A Synopsys ASIP Debug License (tool locked)
- LA-2750A CoolFlux Debug License (tool locked)
- LA-2798A SPARC-V8 Debug License (tool locked)
- LA-3743A Armv8/v9-A/R Debug License (tool locked)
- LA-3776A Intel x86/x64 Debug License (tool locked)
- LA-7837A Nios® II Debug License (tool locked)
- LA-7760A MIPS32 Debug License (tool locked)
- LA-3750A ARC® 32-bit Debug License (tool locked)
- LA-2751A JTAG Debugger for STRED Add.
- LA-3730A MicroBlaze Debug License (tool locked)
- LA-7960X License for Multicore Debugging (tool locked)
- LA-3712A ZSP500 Debug License (tool locked)
- LA-7746A ARM7 Debug License (tool locked)
- LA-7838A C6000 Debug License (tool locked)
- LA-3760A Xtensa® Debug License (tool locked)
- LA-3711A Ceva®-X™ Debug License (tool locked)
- LA-7844A Cortex-M Debug License (tool locked)
- LA-7742A ARM9 Debug License (tool locked)
- LA-7847A C2000 Debug License (tool locked)
- LA-7843A Armv7-A/R Debug License (tool locked)
- LA-2540A RISC-V 32-bit Debug License (tool locked)
- LA-2756A PRU Debug License (tool locked)
- LA-7774A TeakLite JAM Debug License (tool locked)
- LA-2759A C7000 Debug License (tool locked)
- LA-7756A TriCore Debug License (tool locked)
- LA-2541A RISC-V 64-bit Debug License (tool locked)
- LA-7765A ARM11 Debug License (tool locked)
- LA-3741A Hexagon Debug License (tool locked)
