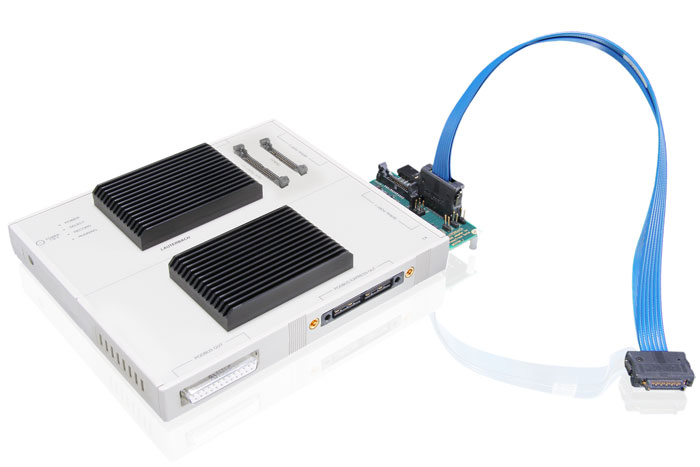

Trace for RH850 via PT-Serial 8GB (PACK)
OVERVIEW
Trace for RH850 via PT-Serial 8GB (PACK)
Product number:
LA-3323
Coming soon
Trace recorder for serial high-speed ports
with 8 Gigabyte trace memory
for RH850
Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.)
Voltage range: 0.15 to 1.25 differential voltage.

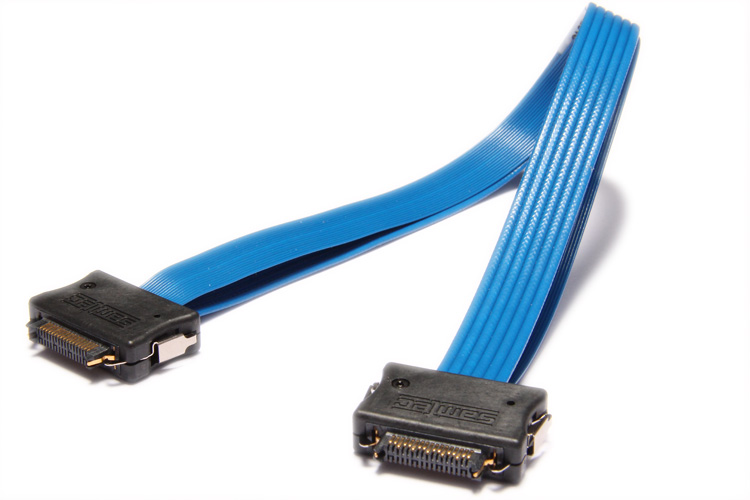

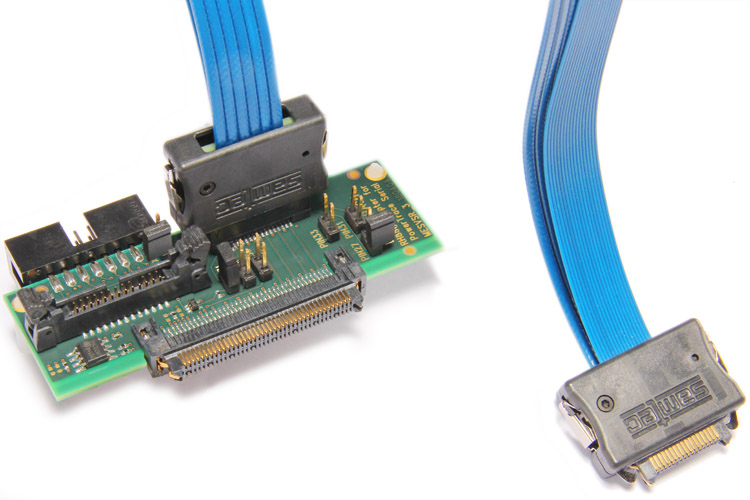

Requires accessory kit LA-3521 or LA-3522.
Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
This product can be ordered in the upcoming month.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
LA-3561
Add-ons
Extend the Trace for RH850 via PT-Serial 8GB (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3550X License for PCI Express
- LA-2767A Trace License for RISC-V (AF-II/PTS)
- LA-2754A Trace License for Xtensa® (AF-II/PTS)
- LA-7968A Trace License Qorivva MPC57xx and SPC57x/58x
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7967A Trace License for QorIQ PowerPC (PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-2901A Trace License for VPSA (AF-II/PTS)
- LA-3914A Trace License for ARC® (AF-II/PTS)
- LA-3799A Trace License for TriCore Add
- LA-7970A Trace License for Arm (AF-II/PTS)
