Trace for ARC® via AUTOFOCUS II (PACK)
OVERVIEW

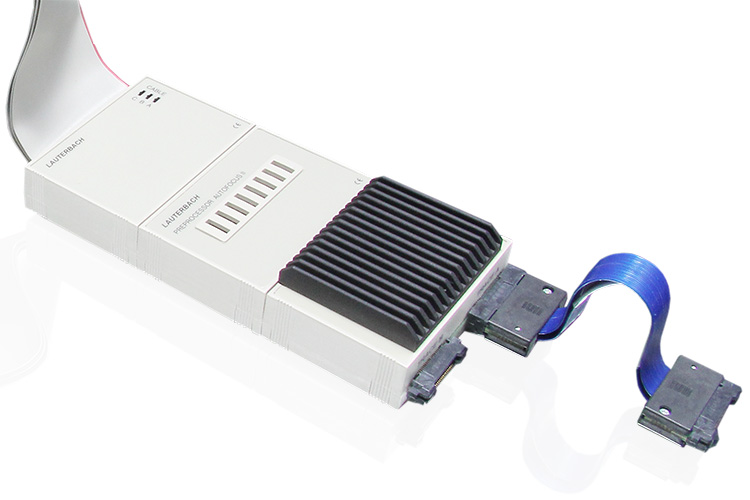

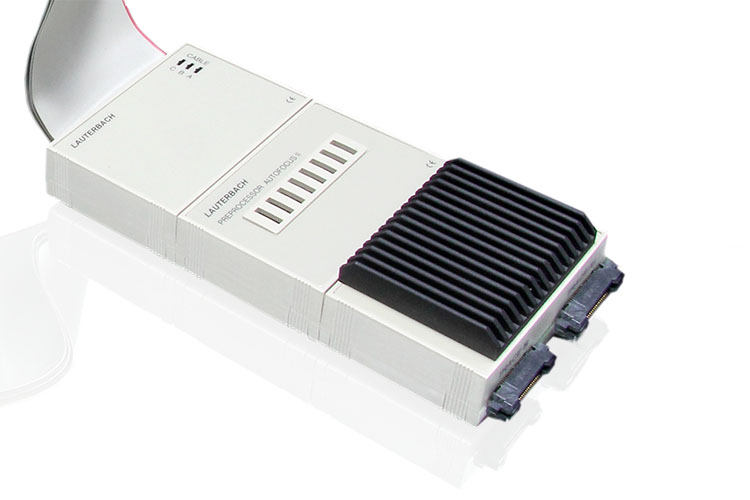

Trace for ARC® via AUTOFOCUS II (PACK)
Product number:
LA-3316
Parallel Preprocessor for ARC Real-Time Trace (ARC RTT)
supporting all RTT modes (MDO4, MDO8, MDO16, 2xMDO8, CoreSight)
Includes connector cable and software.
Voltage: 1.2 to 3.3V (contact support otherwise)
Traceport: 1-32 bit
Bandwidth: up to 600+ Mbit/s per trace signal
Connector: Two 38 pin mictor connectors
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology
Requires a PowerTrace module:
PowerTrace PX / II / III (or PowerTrace Ethernet vers 6).
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for ARC® via AUTOFOCUS II (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2767A Trace License for RISC-V (AF-II/PTS)
- LA-3904A Trace License for TEAKLITE-III AUTOFOCUS II
- LA-3902A Trace License for SH2A, SH4, SH4A in AF II
- LA-7999A Trace License for StarCore AUTOFOCUS II
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-2901A Trace License for VSPA (AF-II/PTS)
- LA-3901A Trace License for MicroBlaze AUTOFOCUS II
