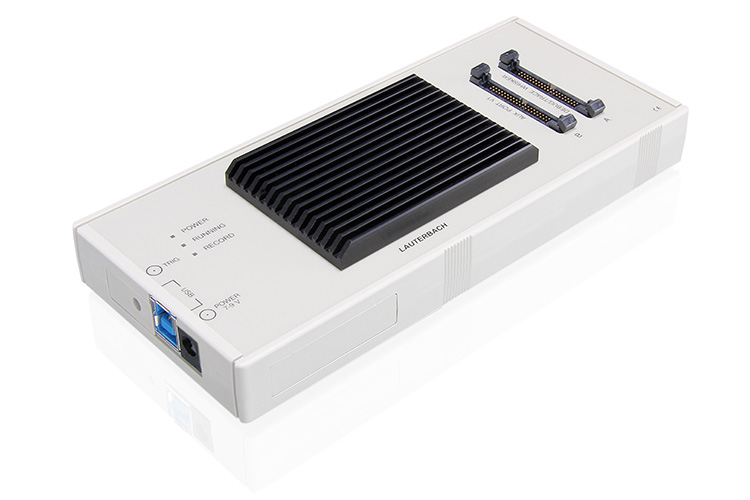

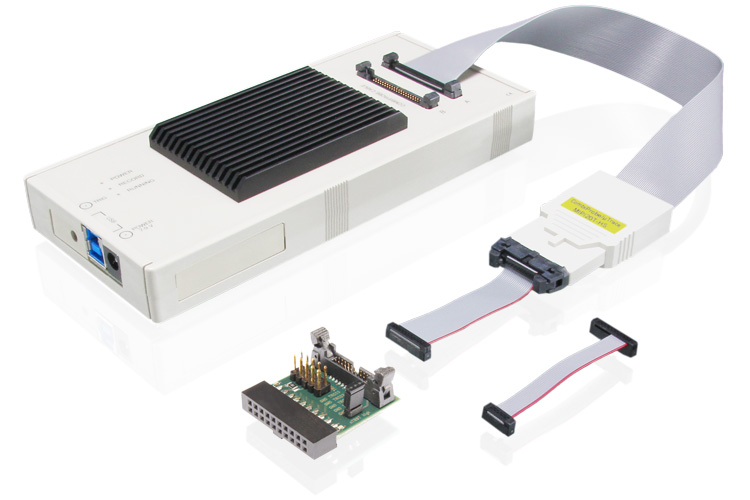

MicroTrace for Cortex-M (PACK)

OVERVIEW

MicroTrace for Cortex-M (PACK)

Product number: LA-3204

Supports 5-pin standard JTAG, cJTAG and
Serial Wire Debug Port for
Arm Cortex-M cores and SecurCore SC000/SC300

Bandwidth of 400 MBit/s per trace channel

includes 256-MByte of trace RAM to support:
- ITM via Serial Wire Output/TPIU
- ETM Cortex-M continuous mode via TPIU (4-bit)

Trace Streaming up to 100 MByte/s requires

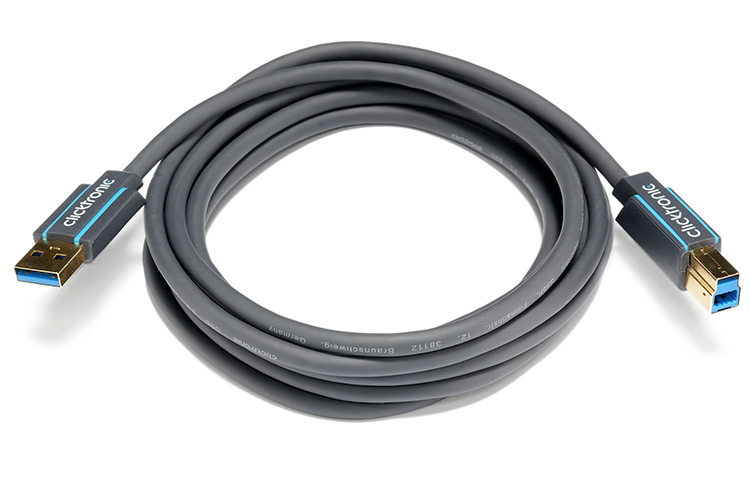

USB 3.0 (SuperSpeed) capable host computer

Concurrent debugging of two or more
Cortex-M cores requires a
License for Multicore Debugging MicroTrace (LA-7960N)

Can not be upgraded to include support for
other core architectures

Add-ons

Extend the MicroTrace for Cortex-M (PACK)

Allowed Licenses

The following licenses can be added to the product to support debug and/or tracing of other core architectures.
