supports SMARTi_LU, XC2xxx, XE16x Onchip Trace and MCDS features through JTAG/DAP please provide the serial number for LA-7759 together with the order
supports decoding of MCDS-based trace data, on-chip and off-chip please add the serial number of the existing serial preprocessor or the PowerTrace Serial to your order
supports decoding of MCDS-based trace data, on-chip and off-chip please add the serial number of the existing debug cable to your order
Program flow trace for PPC4xx 1.2 GHz clock speed Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Supports 1.2 to 3.3V - else contact support Requires PowerTrace II / III, PowerTrace PX or PowerTrace/Ethernet Version 6 or higher voltage range 1.2V to 3.3V
Supports off-chip trace port for PPC4XX if applied to an AUTOFOCUS II preprocessor Requires LA-7986 Mictor38-Mictor38-JTAG 16pin Conv. for PPC4XX please add the serial number of the preprocessor to your order AUTOFOCUS II Preprocessors with serial number C0806xxxxxx and lower have to be send to Lauterbach Germany for an hardware upgrade

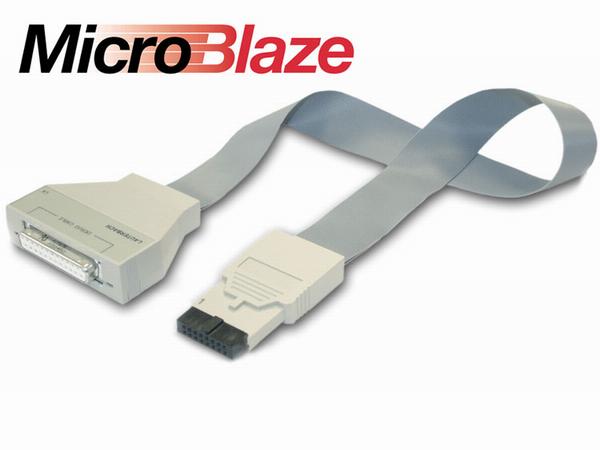

Preprocessor for Real-Time Trace of MICROBLAZE Requires Xilinx Vivado 2018.3 or later or Vivado 2018.2 with special patch from Xilinx (see https://www.xilinx.com/support/answers/71422.html#). 250 MHz clock speed Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Supports 1.2 to 3.3V - else contact support Requires PowerTrace Version 6 or higher or PowerTrace II / III voltage range 1.2V to 3.3V
Supports off-chip trace port for MicroBlaze if applied to an AUTOFOCUS II preprocessor Requires LA-7986 Mictor38-Mictor38-JTAG 16pin Conv. for PPC4XX Requires Xilinx Vivado 2018.3 or later or Vivado 2018.2 with special patch from Xilinx (see https://www.xilinx.com/support/answers/71422.html#). please add the serial number of the preprocessor to your order AUTOFOCUS II Preprocessors with serial number C0806xxxxxx and lower have to be send to Lauterbach Germany for an hardware upgrade
Preprocessor for AUD Real-Time Trace for SH2A, SH4 and SH4A cores 550 MHz clock speed Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Supports 1.2 to 3.3V - else contact support Requires PowerTrace Version 6 or higher or PowerTrace II / III Requires converter LA-7819 for 14 pin debug cables voltage range 1.2V to 3.3V
Supports AUD off-chip trace port for SH2A, SH4, SH4A if applied to an AUTOFOCUS II preprocessor please add the serial number of the preprocessor to your order AUTOFOCUS II Preprocessors with serial number C0806xxxxxx and lower have to be send to Lauterbach Germany for an hardware upgrade
Preprocessor for Real-Time Trace of C6x core Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Voltage: 1.2 to 3.3V - else contact support Traceport: 1-32bit Bandwidth: 9.6 Gbps (300MHz clock speed, DDR) Connector: 2x38 pin mictor connector Requires PowerTrace Version 6 or higher or PowerTrace II / III
