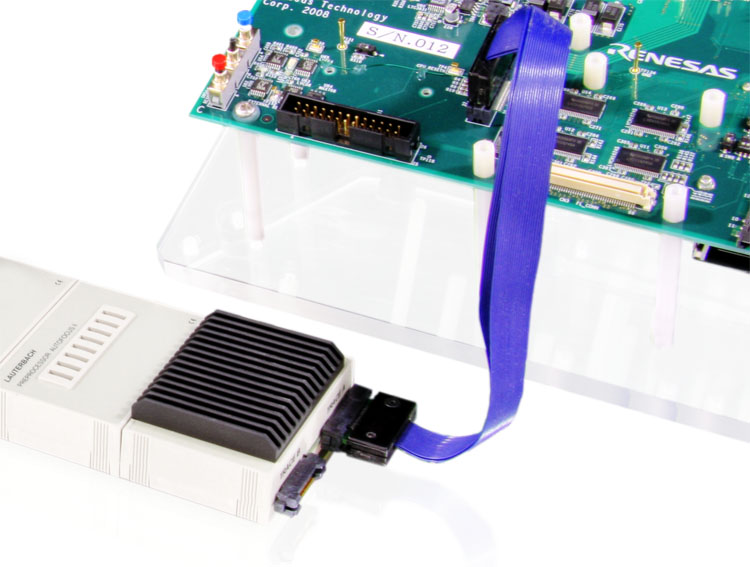

Preproc. for SHx (AUD) AUTOFOCUS II FLEX
OVERVIEW
Preproc. for SHx (AUD) AUTOFOCUS II FLEX
Product number:
LA-3902
Preprocessor for AUD Real-Time Trace for SH2A,
SH4 and SH4A cores
550 MHz clock speed
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Supports 1.2 to 3.3V - else contact support
Requires PowerTrace Version 6 or higher
or PowerTrace II / III
Requires converter LA-7819 for 14 pin debug cables
voltage range 1.2V to 3.3V
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preproc. for SHx (AUD) AUTOFOCUS II FLEX
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7995A Trace License for TMS320C5500 AUTOFOCUS II
- LA-3903A Trace License for C6000 in AUTOFOCUS II
- LA-3904A Trace License for TEAKLITE-III AUTOFOCUS II
- LA-7999A Trace License for StarCore AUTOFOCUS II
- LA-7992A Trace License for ARM-ETM
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-3901A Trace License for MicroBlaze AUTOFOCUS II
- LA-7996A Trace License for Ceva-X AUTOFOCUS II
