Serial Trace Probe for TriCore™
OVERVIEW

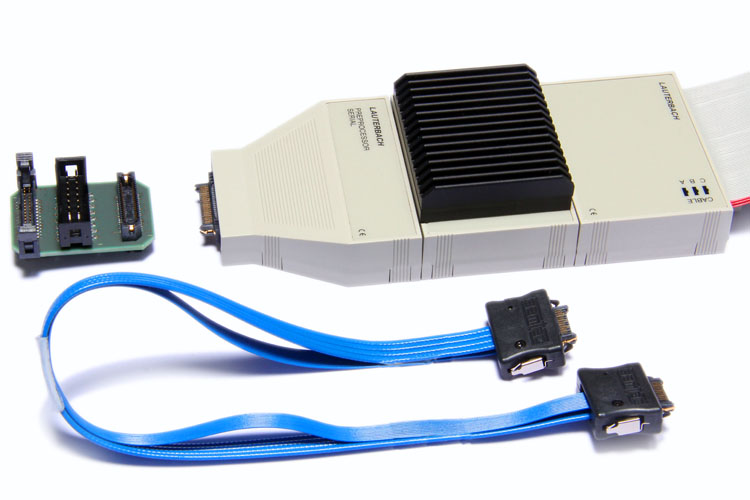

Serial Trace Probe for TriCore™
Product number:
LA-3304

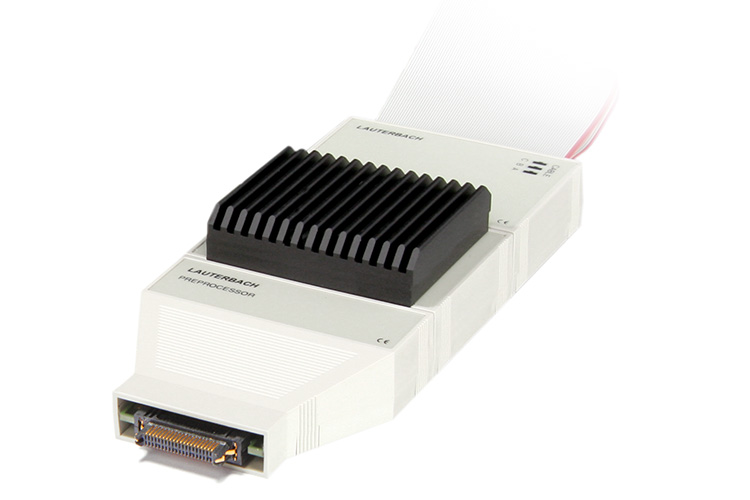

Preprocessor for TriCore AGBT/SGBT Trace
(Aurora high-speed trace).
Full support via PowerTrace III and PowerTrace II
with the following speed per lane:
4 lanes @ 4.25 Gbps,
3 lanes @ 6.00 Gbps,
2 lanes @ 6.25 Gbps,
1 lane @ 6.25 Gbps.
Limited support via PowerTrace PX and PowerTrace Ethernet.
with the following speed per lane:
4 lanes @ 1.25 Gbps,
2 lanes @ 2.50 Gbps.
PowerTrace Ethernet must have serial number E04xxxxxxxx or higher.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Serial Trace Probe for TriCore™
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3900A PPC4xx Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
