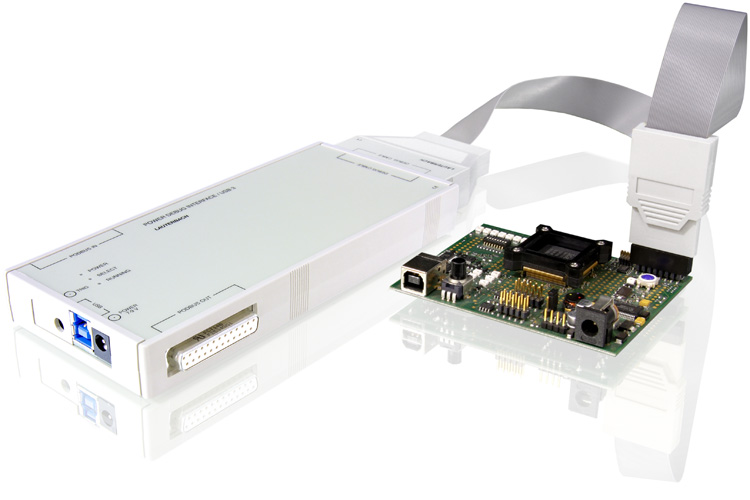

Debugger for TriCore Standard
OVERVIEW
Debugger for TriCore Standard
Product number:
LA-7756
Out of production
supports TriCore, PCP and GTM
supports JTAG and DAP
includes software for Windows, Linux and MacOSX
requires Power Debug Module
supports 16-pin standard JTAG
10-pin DAP interface requires LA-3815
and debug cable with serial number higher
than C0809xxxxxxx
Concurrent debugging of multiple TriCore cores on
multicore processors requires a
License for Multicore Debugging (LA-7960X)
debugging HSM requires Cortex-M license
LA-7844A (JTAG Debugger License for CORTEX-M Add.)
This product is discontinued and not available for purchase.
Superseded by LA-3203 Debugger for TriCore AUTO26 (PACK)
Product Details
Technical Information
Technical Data
Add-ons
Extend the Debugger for TriCore Standard
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3732A OCDS Debugger for XC800 Additional
- LA-7759A OCDS Debugger for XC2000/C166S V2 Additional
- LA-7960X License for Multicore Debugging
- LA-3799X Trace License for TriCore ED
- LA-7844A Debug Cortex-M (Armv6/7/8 32-bit) Add.
- LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
- LA-2900X License for PIL Simulation (Cable)
Available Converters
- LA-2102 Adapter Half-Size 16 pin
- LA-3848 Conv. JTAG16-TriCore to AUTO-26
- LA-7941 Conv. 16 Pin OCDS-L1 to Samtec 60 for TriCore
- LA-3815 Conv. 16 Pin JTAG to DAP for TriCore/XC2000
- LA-3829 Conv. Samtec40 to Samtec22 TriCore AGBT
- LA-3819 Conv. 16 Pin JTAG to 10 Pin BOSCH MEDC17
- LA-3843 Conv. AUTO-26/OnCE14-PPC/JTAG16-TC to ECU14
