JTAG Debugger for Arm9
OVERVIEW
JTAG Debugger for Arm9
Product number:
LA-7742
Out of production
supports Arm9 (0.4 V - 5 V)

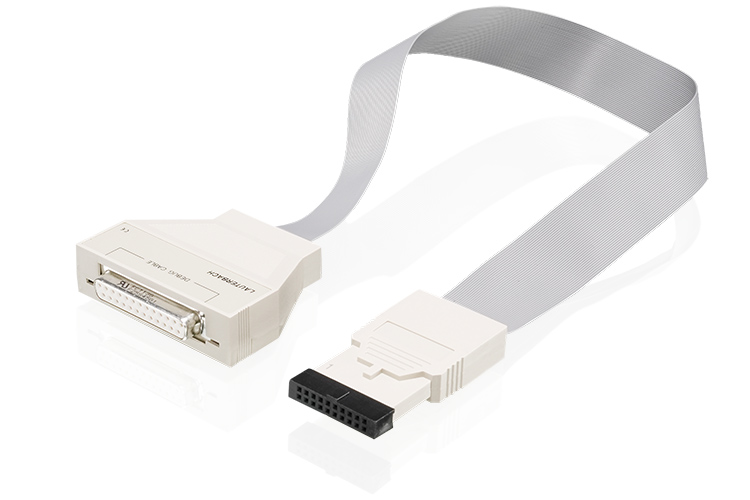

IDC20A debug cable supports 5-pin standard JTAG, cJTAG and
Serial Wire Debug Port, (0.4 V - 5 V)
includes software for Windows, Linux and MacOSX
requires Power Debug Module
cJTAG and SWD require
Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
or PowerDebug PRO
This product is discontinued and not available for purchase.
LA-3251 IDC20A Debug Probe with ARM9 License
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for Arm9
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A Synopsys ASIP Debug License (tool locked)
- LA-7746X ARM7 Debug License Ext. (tool locked)
- LA-3778A APS Debug License (tool locked)
- LA-7845A StarCore Debug License (tool locked)
- LA-7844X Cortex-M Debug License Ext. (tool locked)
- LA-7760A MIPS32 Debug License (tool locked)
- LA-7830A C5500 Debug License (tool locked)
- LA-3750A ARC® 32-bit Debug License (tool locked)
- LA-7832A ZSP400 Debug License (tool locked)
- LA-7759A XC2000/C166S V2 Debug License (tool locked)
- LA-7850A JTAG Debugger for R8051XC Add.
- LA-7762X XScale Debug License Ext. (tool locked)
- LA-7789A Teak/Oak SEIB Debug License (tool locked)
- LA-7831A C5400 Debug License (tool locked)
- LA-3747A UBI32 Debug License (tool locked)
- LA-7817A SH Debug License (tool locked)
- LA-7960X License for Multicore Debugging (tool locked)
- LA-3712A ZSP500 Debug License (tool locked)
- LA-7838A C6000 Debug License (tool locked)
- LA-7843X Armv7-A/R Debug License Ext. (tool locked)
- LA-7761A MIPS64 Debug License (tool locked)
- LA-3760A Xtensa® Debug License (tool locked)
- LA-3756A AndesCore™ V3/V2 Debug License (tool locked)
- LA-3711A Ceva®-X™ Debug License (tool locked)
- LA-7847A C2000 Debug License (tool locked)
- LA-7744X ARM10 Debug License Ext. (tool locked)
- LA-2540A RISC-V 32-bit Debug License (tool locked)
- LA-7774A TeakLite JAM Debug License (tool locked)
- LA-7970X Trace License for Arm (Debug Cable)
- LA-3743X Armv8/v9-A/R Debug License Ext. (tool locked)
- LA-7765X ARM11 Debug License Ext. (tool locked)
- LA-2541A RISC-V 64-bit Debug License (tool locked)
- LA-3844A TeakLite-4 Debug License (tool locked)
- LA-3741A Hexagon Debug License (tool locked)
- LA-3774A TeakLite-III Debug License (tool locked)
- LA-2900X PiL Simulation License (tool locked)
Available Converters
- LA-2729 Converter IDC20A to MIPI-10/20T
- LA-3881 Converter IDC20A to XILINX-14
- LA-7748 Converter IDC20A to TI-14
- LA-3880 Conv. ICD20A, MIPI-34, MIPI-60 to 2xMictor-38
- LA-2770 Converter IDC20A to MIPI-34 PowerTrace Serial
- LA-3833 Conv. IDC20A/Samtec40 HSSTP to Samtec40 HSSTP
- LA-3770 Converter IDC20A to MIPI-10/20D/34
- LA-3722 Converter IDC20A to Mictor-38
- LA-3780 Converter IDC20A to TI-14/TI-20-Compact
- LA-3863 Converter IDC20A to ALTERA-10/RISCV-10
- LA-3818 Converter 2xMictor38/IDC20A to MIPI-60
- LA-3809 Converter Mictor-38/IDC20A to MIPI-20T
