AUTO26 Debug Probe with MPC5xxx License

AUTO26 Debug Probe with MPC5xxx License
OVERVIEW

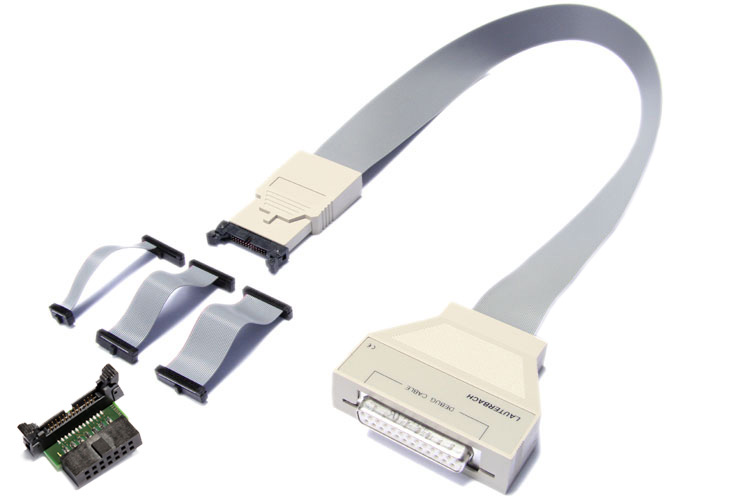

AUTO26 Debug Probe with MPC5xxx License

Product number: LA-3206

Debug Cable with debug license to debug
Qorivva MPC5xxx/SPC5xxx (e200 cores)
and Freescale PX SERIES processors.

Includes Debug License for eTPU, GTM and SPT.
Includes AUTO26 Debug Cable with 26 pin connector (1.8V to 5.0V).
Includes a converter AUTO26 to JTAG14 OnCE (LA-3873)
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.

Requires mulcitore license LA-7960X for concurrent debugging of
multiple e200 cores on multicore processors.
(not necessary for lockstep mode).

Requires one of the following PowerDebug base modules:
PowerDebug X-Series, PowerDebug E-Series, PowerDebug PRO,
PowerDebug Interface USB 2/USB 3, PowerDebug II,
PowerDebug Ethernet, PowerTrace Ethernet.

Product Details

Technical Information

Technical Data

Pinout Specification

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information
SPT debugging included SPT debugging included
LA-3405I

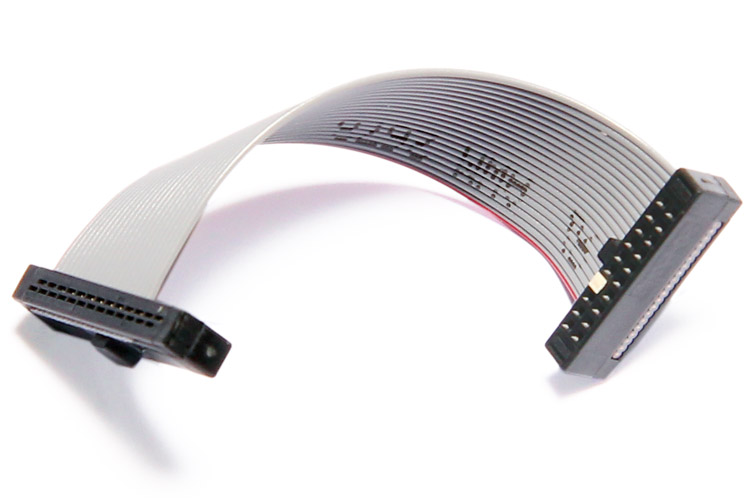

Automotive HALF-SIZE-CABLE 26-20 Automotive HALF-SIZE-CABLE 26-20
LA-1948
eTPU debugging included eTPU debugging included
LA-3404I
TRACE32-ICD Software Warranty First Year TRACE32-ICD Software Warranty First Year
LA-8017I
MPC5xxx Debug License (tool locked) MPC5xxx Debug License (tool locked)
LA-7753A

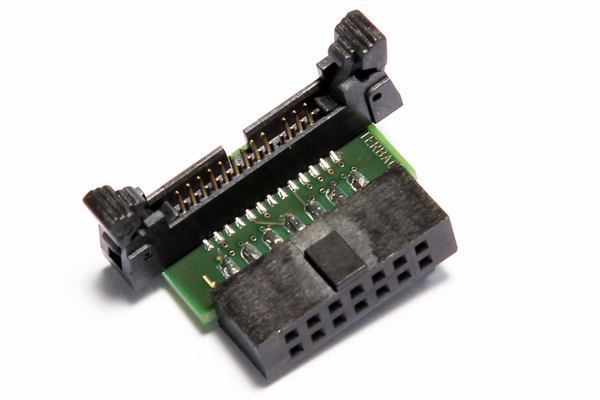

Conv. AUTO26 to JTAG14 OnCE (MPC5xxx) Conv. AUTO26 to JTAG14 OnCE (MPC5xxx) See pinout specifications See pinout specifications
LA-3873
See pinout specifications See pinout specifications
GTM debugging included GTM debugging included
LA-3403I

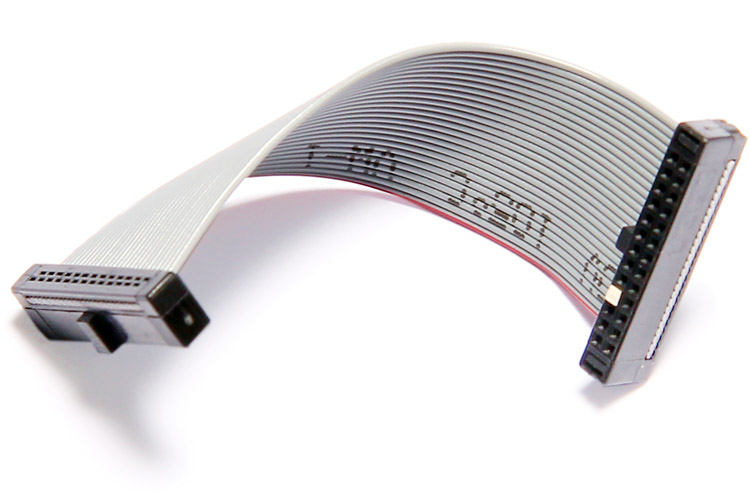

Automotive HALF-SIZE-CABLE 26-26 Automotive HALF-SIZE-CABLE 26-26
LA-1949
Automotive HALF-SIZE-CABLE 26-10 Automotive HALF-SIZE-CABLE 26-10
LA-1947

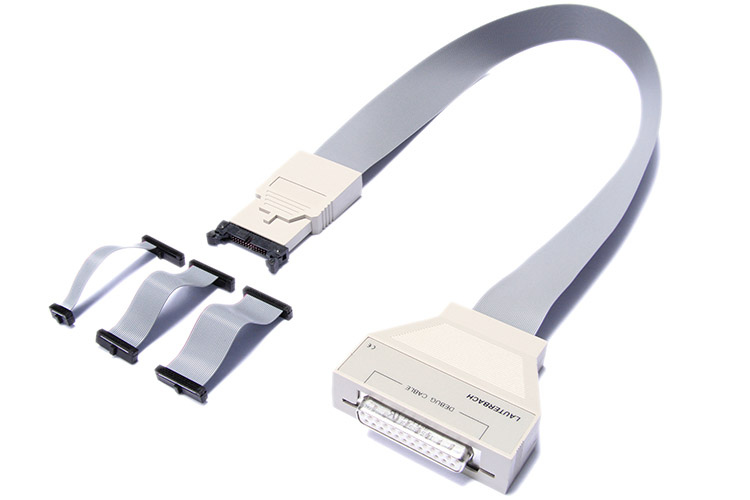

AUTO26 Debug Probe V3 AUTO26 Debug Probe V3 See pinout specifications
LA-3011
See pinout specifications
Compatible Hardware

Required Modules for AUTO26 Debug Probe with MPC5xxx License

One of the following modules is required

Add-ons

Extend the AUTO26 Debug Probe with MPC5xxx License
