Debugger for TriCore Automotive
OVERVIEW
Debugger for TriCore Automotive
Product number:
LA-3737
Out of production
supports TriCore, PCP and GTM debugging included
supports JTAG and DAP
includes software for Windows, Linux and MacOSX
requires Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, Power Trace Ethernet,
Power Debug II, PowerDebug PRO or PowerDebug E40
Automotive Debug Cable 26-pin
requires LA-3849 if 16 pin JTAG (TriCore) connector is used
This product is discontinued and not available for purchase.

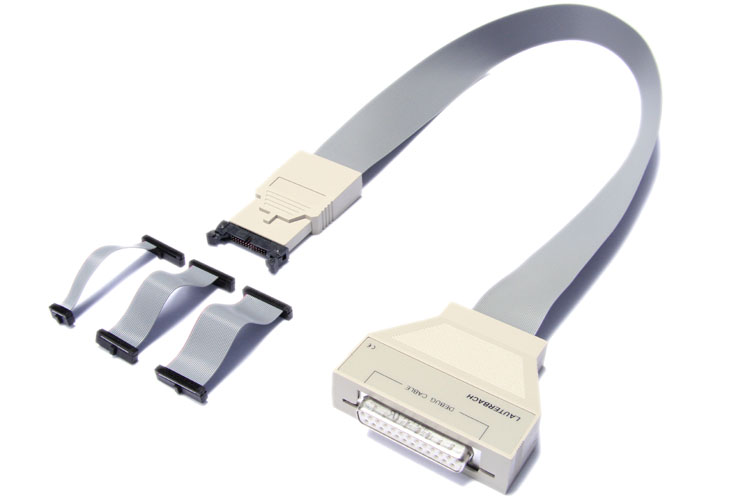

LA-3203 AUTO26 Debug Probe with TriCore License
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Debugger for TriCore Automotive
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Armv8/v9-A/R Debug License (tool locked)
- LA-3750A ARC® 32-bit Debug License (tool locked)
- LA-3732A XC800 Debug License (tool locked)
- LA-7960X License for Multicore Debugging
- LA-7753A MPC5xxx Debug License (tool locked)
- LA-3799X Trace License for TriCore ED
- LA-3719A RH850 Debug License (tool locked)
- LA-7844A Cortex-M Debug License (tool locked)
- LA-7843A Armv7-A/R Debug License (tool locked)
- LA-2900X License for PIL Simulation (Cable)
