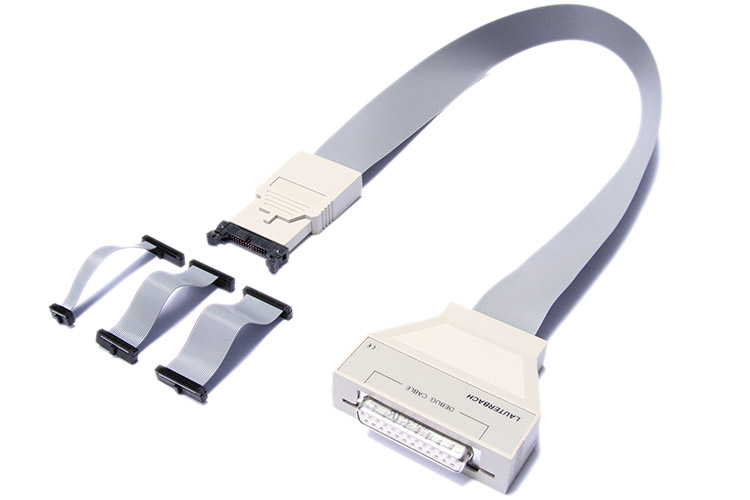

AUTO26 Debug Probe with C2000 License
OVERVIEW
AUTO26 Debug Probe with C2000 License
Product number:
LA-3282
AUTO26 Debug Probe with a license for debugging
of C28x and C29x microcontrollers
via JTAG, cJTAG (IEEE 1149.7), or Serial Wire Debug (SWD).
Includes licenses to debug Control Law Accelerator (CLA).
Includes licenses for onchip trace "PC Trace".
("PC Trace" supports up to 128 program branches.)
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires a PowerDebug base module.
Requires LA-3780 if you need to adapt to a
TI-14 or IDC20A target header.
Voltage range 1.8V to 5.0V.
Product Details
Technical Information
Technical Data

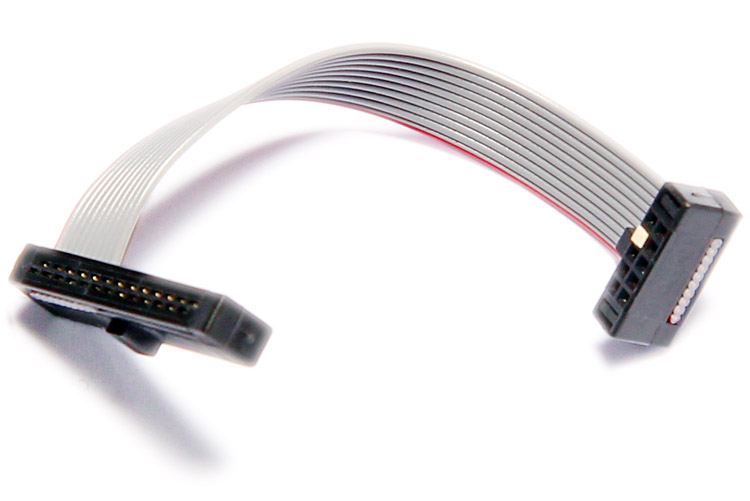

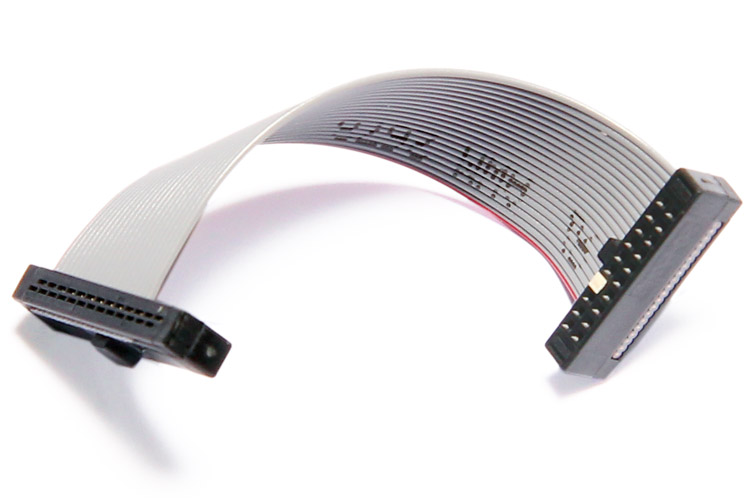

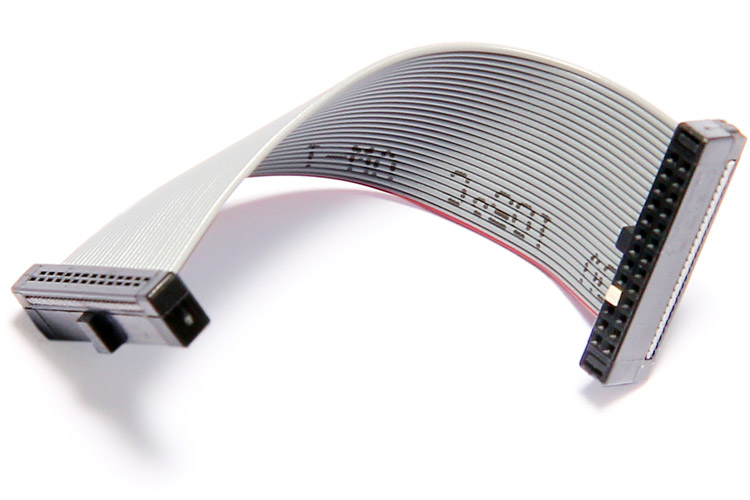

INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Compatible Hardware
Required Modules for AUTO26 Debug Probe with C2000 License
One of the following modules is required
Add-ons
Extend the AUTO26 Debug Probe with C2000 License
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Armv8/v9-A/R Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-2760A dsPIC Debug License (Nodelocked)
- LA-3732A XC800 Debug License (Nodelocked)
- LA-3730A MicroBlaze Debug License (Nodelocked)
- LA-7838A C6000 Debug License (Nodelocked)
- LA-7753A MPC5xxx Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-3719A RH850 Debug License (Nodelocked)
- LA-7844A Cortex-M Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-7843A Armv7-A/R Debug License (Nodelocked)
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A C7000 Debug License (Nodelocked)
- LA-7756A TriCore Debug License (Nodelocked)
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
