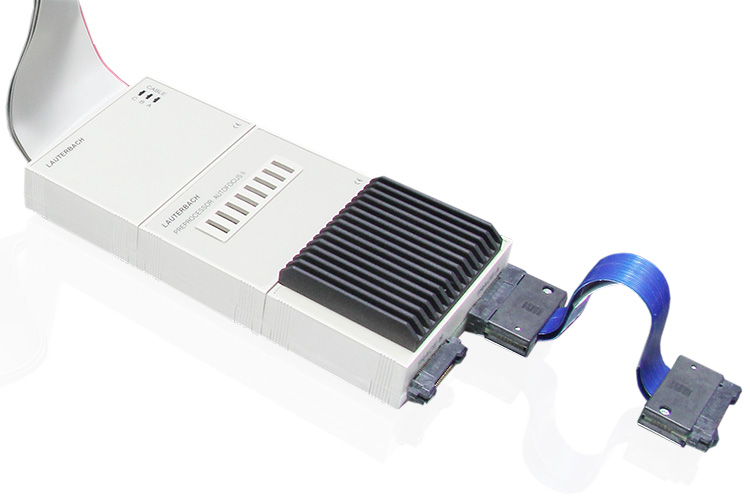

Preproc. for STARCORE AUTOFOCUS II Flex
OVERVIEW
Preproc. for STARCORE AUTOFOCUS II Flex
Product number:
LA-7999
Out of production
Preprocessor for Real-Time Trace of STARCORE
Connector cable and software,
SDR 180 MHz clock speed, DDR support,
8,16,32 Bit Trace Port width,
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 2x38 pin mictor connector
Requires PowerTrace Version 6 or higher
This product is discontinued and not available for purchase.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preproc. for STARCORE AUTOFOCUS II Flex
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7995A Trace License for TMS320C5500 AUTOFOCUS II
- LA-3903A Trace License for C6000 in AUTOFOCUS II
- LA-3904A Trace License for TEAKLITE-III AUTOFOCUS II
- LA-3902A Trace License for SH2A, SH4, SH4A in AF II
- LA-7992A Trace License for ARM-ETM
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-3901A Trace License for MicroBlaze AUTOFOCUS II
- LA-7996A Trace License for Ceva-X AUTOFOCUS II
