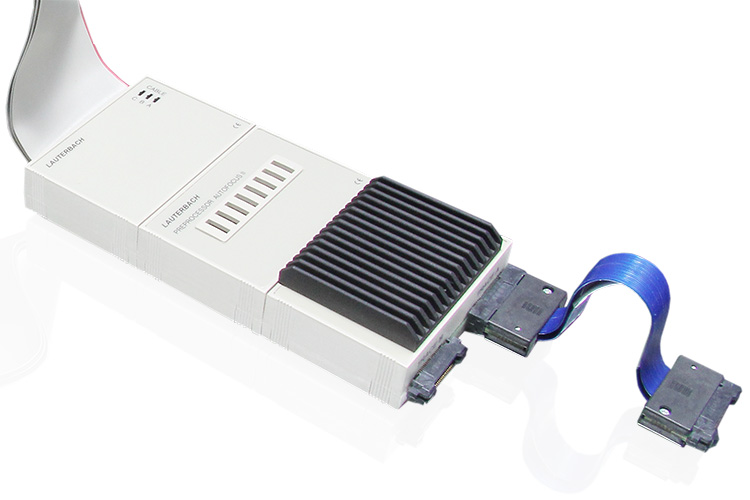

Preproc. for Ceva-X AUTOFOCUS II Flex
OVERVIEW
Preproc. for Ceva-X AUTOFOCUS II Flex
Product number:
LA-7996
Preprocessor for Real-Time Trace of Ceva-X
Connector cable and software,
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 2x38 pin mictor connector
Requires PowerTrace Version 6 or higher
or PowerTrace II / III
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preproc. for Ceva-X AUTOFOCUS II Flex
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7995A Trace License for TMS320C5500 AUTOFOCUS II
- LA-3903A Trace License for C6000 in AUTOFOCUS II
- LA-3904A Trace License for TEAKLITE-III AUTOFOCUS II
- LA-3902A Trace License for SH2A, SH4, SH4A in AF II
- LA-7999A Trace License for StarCore AUTOFOCUS II
- LA-7992A Trace License for ARM-ETM
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-3901A Trace License for MicroBlaze AUTOFOCUS II
