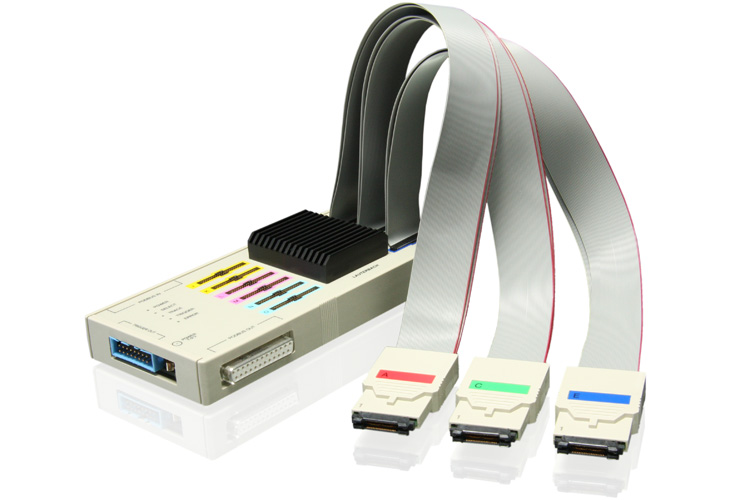

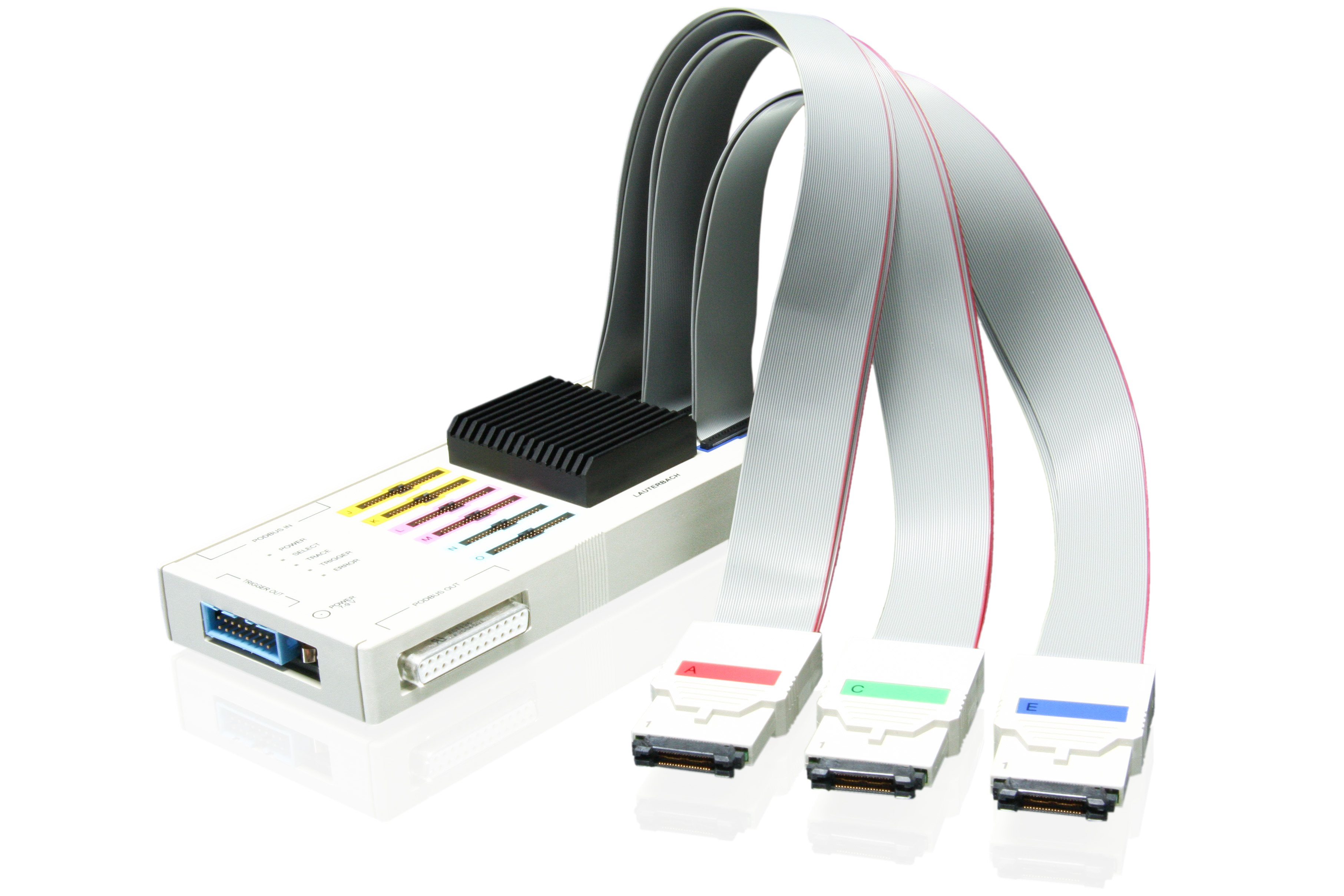

PowerIntegrator Logic Analyzer
PowerIntegrator Logic Analyzer
State-Timing Analyzer to record digital or analog signal
via suitable probes.
Records up to 204 (102) Channels,
200 (400) MHz State, 250 (500) MHz Timing,
Transient Recording, 8 MB sample memory,
512 KFrames, 48 Bit Time-Stamp,
Trigger Filter, Trigger Delay, etc.
This is an extension that attaches to an existing PowerDebug module.
Available probes:
LA-7945 Standard Probe (17 digital single-ended signals)
LA-7944 Mictor Probe (34 digital single-ended signals)
LA-7946 Samtec Probe (34 digital single-ended signals)
LA-7947 Mictor Differential Probe (17 digital differential signals)
LA-7954 Mictor Probe with differential clock (32 se + 1 diff signals)
LA-7958 Samtec Probe with differential clock (32 se + 1 diff signals)
LA-7961 USB2 Probe
LA-7943 DigRF Probe Set
LA-7949 Analog Probe
Technical Information
Technical Data

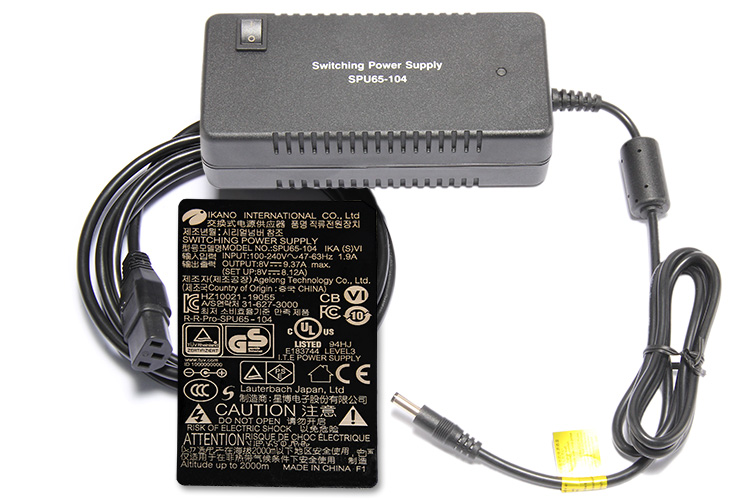

INCLUDED PRODUCTS:
Required Modules for PowerIntegrator Logic Analyzer
One of the following modules is required
Extend the PowerIntegrator Logic Analyzer
Available Converters
- LA-7947 Mictor Probe for PowerIntegrator DIFFERENTIAL
- LA-7946 Samtec Probe for PowerIntegrator
- LA-7955 PowerIntegrator Adapter SODIMM SDRAM
- LA-7949 Analog Probe for PowerIntegrator
- LA-7958 Samtec Probe for PowerIntegrator DIFFCLOCK
- LA-7945 Standard Probe for PowerIntegrator
- LA-7956 PowerIntegrator Adapter SODIMM DDR 400MHz
- LA-7957 PowerIntegrator Adapter SODIMM DDR2 400MHz
- LA-7959 PowerIntegrator Adapter to ESICON
- LA-7954 Mictor Probe for PowerIntegrator DIFFCLOCK
- LA-7944 Mictor Probe for PowerIntegrator
