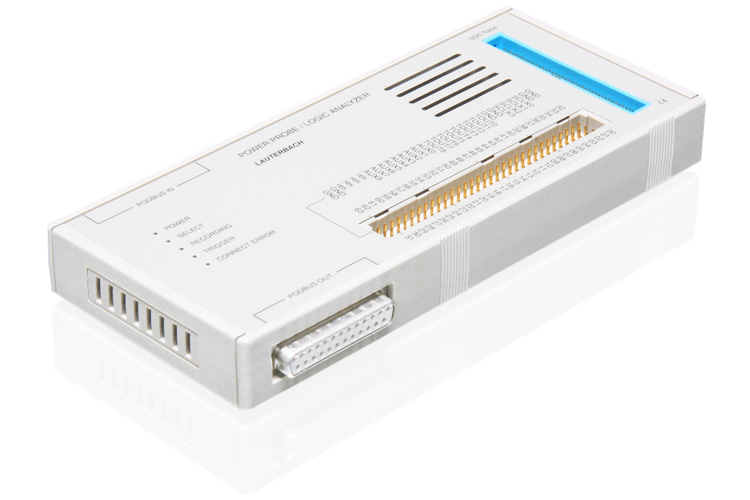

ICD PowerProbe State-Timing Analyzer 256K
OVERVIEW
ICD PowerProbe State-Timing Analyzer 256K
Product number:
LA-7931
Not recommended for new projects
Logic Analyzer Extension for PowerDebug modules.
64 Channels 100 MHz, 32 Channels 200 MHz, 16 Channels 400 MHz.
Transient Recording, 256 KFrames, 48 Bit Time-Stamp.
Trigger Filter, Trigger Delay, etc.,
Complex Trigger: 8 Trigger Events, 4 Trigger Levels, 3 Counters (45 bit).
50 MHz Pattern Generator (9 bit),
Requires PowerDebug module (or other PodBus master).
We recommend using this product only for existing projects. For new projects, please consider one of the available superseding products. If no suitable product is available, feel free to contact us to discuss alternative solutions.
LA-2500 Mixed-Signal Probe CombiProbe2/MicroTrace/PT
