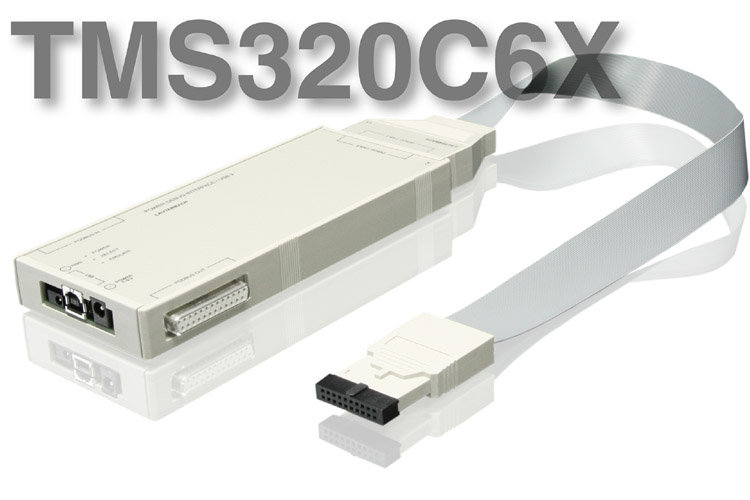

JTAG Debugger for C6000 DSP (ICD)
OVERVIEW
JTAG Debugger for C6000 DSP (ICD)
Product number:
LA-7838
Out of production
supports C6xxx (0.4 V - 5 V)
includes software for Windows, Linux and MacOSX
requires Power Debug Module
IDC20A debug cable
Requires LA-7748 if 14 pin TI target adapter is
used
This product is discontinued and not available for purchase.
LA-3226 IDC20A Debug Probe with C6000 License
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for C6000 DSP (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Armv8/v9-A/R Debug License (tool locked)
- LA-7744A ARM10 Debug License (tool locked)
- LA-7960X License for Multicore Debugging (tool locked)
- LA-7746A ARM7 Debug License (tool locked)
- LA-7979X Trace License for C6000 (Cable)
- LA-7844A Cortex-M Debug License (tool locked)
- LA-7742A ARM9 Debug License (tool locked)
- LA-7847A C2000 Debug License (tool locked)
- LA-7843A Armv7-A/R Debug License (tool locked)
- LA-7765A ARM11 Debug License (tool locked)
Available Converters
- LA-2729 Converter IDC20A to MIPI-10/20T
- LA-7748 Converter IDC20A to TI-14
- LA-3880 Conv. ICD20A, MIPI-34, MIPI-60 to 2xMictor-38
- LA-3887 Conv. MIPI60/IDC20A to 60 Pin CTOOLS
- LA-2770 Converter IDC20A to MIPI-34 PowerTrace Serial
- LA-3833 Conv. IDC20A/Samtec40 HSSTP to Samtec40 HSSTP
- LA-3770 Converter IDC20A to MIPI-10/20D/34
- LA-3722 Converter IDC20A to Mictor-38
- LA-3780 Converter IDC20A to TI-14/TI-20-Compact
- LA-3728 Converter IDC20A to 60-Pin CTOOLS
- LA-3729 Converter IDC20A swap to 60-Pin CTOOLS
- LA-3818 Converter 2xMictor38/IDC20A to MIPI-60
- LA-3809 Converter Mictor-38/IDC20A to MIPI-20T
- LA-3727 Converter Mictor38/IDC20A to 60 Pin CTOOLS
